Uses of the Congestion Analysis Assistant
Use the Congestion Analysis assistant to:
- run global routing and congestion analysis.
- illustrate the various methods of viewing congestion in your design.
- analyze congestion.

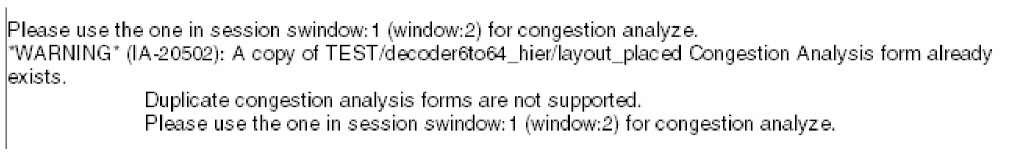

The Congestion Analysis assistant has only one record per cellview. If you attempt to open another instance of the Congestion Analysis assistant for a cellview that already has a copy of congestion analysis record, a warning message is displayed, as shown below.
The copied ones only display the synchronized heat map, but the Congestion Analysis assistant is not displayed.
