awvAppendWaveform

awvAppendWaveform(
w_windowID
l_waveformList
[ ?subwindow x_subwindow ]
[ ?expr l_exprList ]
[ ?index l_waveIndexList ]
[ ?component t_component ]
[ ?color l_colorList ]
[ ?lineType l_lineTypeList ]
[ ?lineStyle l_lineStyleList ]
[ ?lineThickness l_lineThicknessList ]
[ ?showSymbols l_showList ]
[ ?dataSymbol l_symbolList ]
[ ?barBase t_barBase ]
[ ?barWidth t_barWidth ]
[ ?barShift t_barShift ]
)
=> t / nil

Description

Plots the waveforms in the list l_waveformList and appends them in a subwindow of the specified Waveform window.

The new waveforms are plotted at the same strip and Y axis as their corresponding curves from l_waveIndexList. Also, the new waveforms are assigned the next lowest unassigned numbers. So, if l_waveIndexList contains curves 1 and 2, the new curves are numbered 3, 4, and so on.

If you do not specify l_waveIndexList, the new waveforms are plotted at the Y axis and strip of existing waveforms with the lowest numbers. These new waveforms are assigned the lowest unused numbers.

Arguments

w_windowID	Waveform window ID.
l_waveformList	A list of waveform objects to be plotted.
?subwindow x_subwindow
	Identification number of the subwindow, which is found in the top-right corner of the subwindow. If you do not specify this argument, waveforms are plotted in the current subwindow of the specified Waveform window.
?expr l_exprList
	List of waveform names to be displayed in the trace legend.
?index l_waveIndexList
	List of index numbers identifying the waveforms. If you do not specify index numbers for the waveforms in l_waveIndexList, the lowest unused numbers in the subwindow are assigned.
?color l_colorList
	List of colors for the waveforms. Available colors are defined in your technology file. Valid values are from y1 through y66. If you do not specify this argument, default colors are used. The color information can also be provided in the RGB format, such as 0X00FF50.
?lineType l_lineTypeList
	List specifying the type of line to be used for the waveforms. Valid values are line, bar, scatterPlot, poleZero. If you do not specify this argument, default value line is used.
?lineStyle l_lineStyleList
	List specifying the line style to used for the waveforms. Valid values are solid, dash, dot, dashDot, and dashDotDot. If you do not specify this argument, default value solid is used.
?lineThickness l_lineThicknessList
	List specifying the line thickness of the waveforms. Valid values are fine, medium, thick, and extraThick. If you do not specify this argument, default value fine is used.
?showSymbols l_showList
	List of flags that specify whether to show the symbols on the waveforms. Valid values are t and nil. The default value is nil, which means that symbols are not displayed on the waveforms. The number of flags in the l_showList must match the number of symbols in the l_symbolList.
?dataSymbol l_symbolList
	List of symbols to be displayed for data points on the waveforms. To use a symbol, specify an integer or a single character corresponding to the symbol.
?barBase t_barBase
	Specifies base of the bar when the ?lineType argument is set to bar.
?barWidth t_barWidth
	Specifies width of the bar when the ?lineType argument is set to bar. This argument takes integer values. The default value is 1.
?barShift t_barShift
	Specifies whether to shift the bar ahead or backwards when the ?lineType argument is set to bar. This argument takes integer values. Positive integer shifts the bar backwards and negative integer shifts the bar forward. The default value is 0, which indicates that bar is not shifted.

Value Returned

t	Waveforms specified in the l_waveformList list are plotted in the specified Waveform window.
nil	Waveforms cannot be plotted because of an error.

Examples

The following example creates a Waveform window and returns its ID.

awvCreatePlotWindow()

=> window:3

The following examples create waveform objects w1, w2, w3, and w4.

w1=drCreateWaveform(drCreateVec('double list(1 3 5)) drCreateVec('double list(5 15 25)))

=> srrWave:0x2d4a9020

w2=drCreateWaveform(drCreateVec('double list(1 2 3 4 5)) drCreateVec('double list(10 15 20 25 30)))

=> srrWave:0x2d4a9030

w3=drCreateWaveform(drCreateVec('double list(1 3 5)) drCreateVec('double list(15 25 35)))

=> srrWave:0x2d4a9040

w4=drCreateWaveform(drCreateVec('double list(1 2 3 4 5)) drCreateVec('double list(20 25 30 35 40)))

=> srrWave:0x2d4a9050

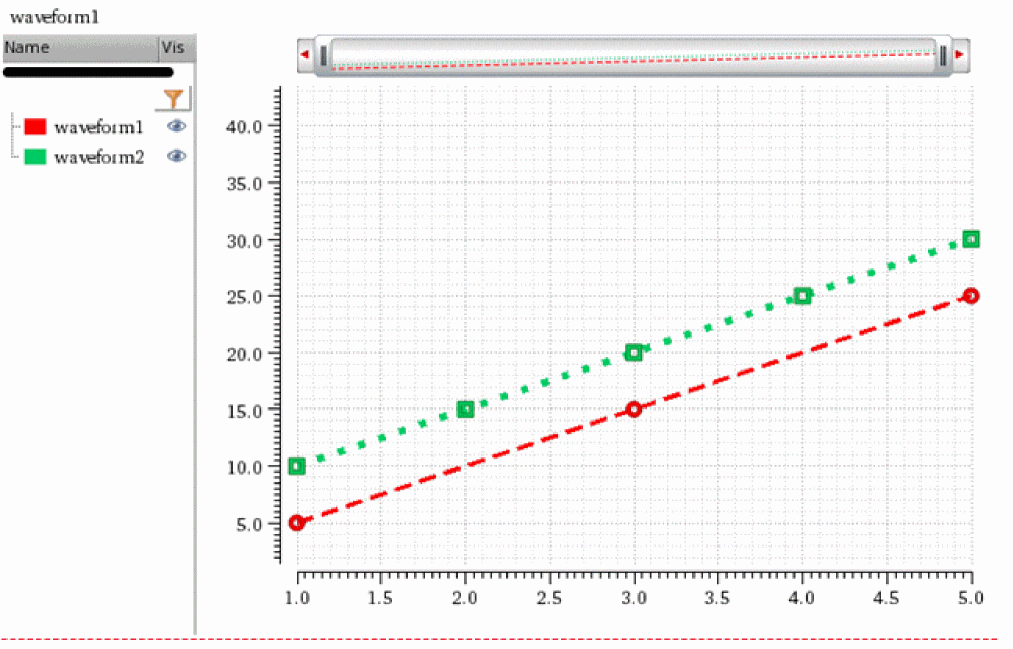

The following example plots the waveforms objects w1 and w2 specified in the list.

awvPlotWaveform(

    awvGetCurrentWindow()

    list(w1 w2)

    ?expr list("waveform1" "waveform2")

    ?color list("y1" "y66")

    ?index list(1 2)

    ?lineType list("line" "line")

    ?lineStyle list("dash" "dot")

    ?lineThickness list("thick" "extraThick")

    ?showSymbols list(t t)

    ?dataSymbol list(4 5)

    )

=> t

The following example returns the index numbers and names of the waveforms plotted using awvPlotWaveform function.

awvGetWaveNameList(window(3))

=>

((1 2)

    ("waveform1" "waveform2")

)

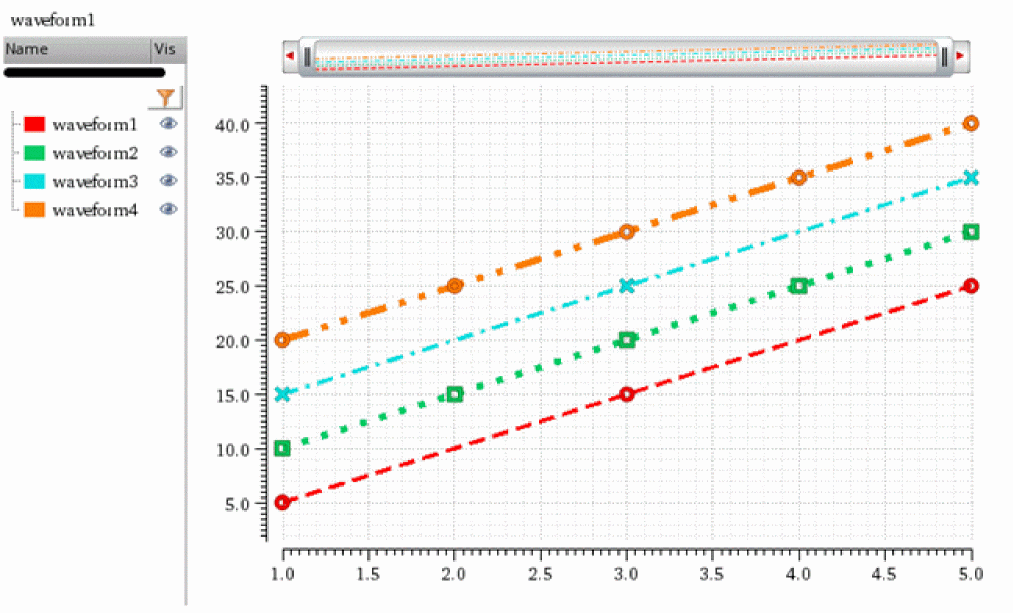

The following example plots the waveform objects w3 and w4 specified in the list and appends them to the waveforms plotted using the awvPlotWaveform function.

awvAppendWaveform(

     awvGetCurrentWindow()

     list(w3 w4)

     ?expr list("waveform3" "waveform4")

     ?color list("y12" "y6")

     ?lineType list("line" "line")

     ?lineStyle list("dashDot" "dashDotDot")

     ?lineThickness list("thick" "extraThick")

     ?showSymbols list(t t)

     ?dataSymbol list("x" "O")

     )

=> t

The following example returns the index numbers and names of the waveforms plotted in the specified Waveform window.

awvGetWaveNameList(window(3))

=>

((1 2 3 4)

    ("waveform1" "waveform2" "waveform3" "waveform4")

)
