calCreateSpecialFunction

calCreateSpecialFunction(
[ ?formSym s_formSymbol ]
[ ?formInitProc s_formInitializeProcedure ]
[ ?formTitle t_formTitle ]
[ ?formCallback t_formCallback ]
[ ?envGetVal t_envGetVal ]
)
=> nil

Description

Encapsulates the initialization and display of forms defined for a special (user-defined) function.

Arguments

?formSym s_formSymbol
	Symbol of the form.
?formInitProc s_formInitializeProcedure
	Symbol of the procedure that creates the form entries and form.
?formTitle t_formTitle
	String describing the special function. This title is placed on the window border of the form.
?formCallback t_formCallback
	Callback for the form that processes the form fields and enters the expression into the calculator buffer.
?envGetVal t_envGetVal
	Gives the name of the partition for the calculator tool. The function is called using this variable to retrieve the value for all the form fields (if set) from the default environment.

Value Returned

t	The form for the special function is initialized and displayed.
nil	Indicates an error.

Examples

The following example defines a form myForm for a user-defined function. The form is represented by a symbol specialForm.

This form takes four arguments: Start, Stop, Threshold, and Edge Type.

These arguments are represented by symbols a, b, c, and d, respectively.

The first three arguments are string fields and the fourth argument Edge Type is a cyclic field. Valid values for the argument Edge Type are Rising and Falling. The default value is Rising.

procedure(myForm()

 let((a b c d fieldList)

  a=ahiCreateStringField(

   ?name 'a

   ?prompt "Start"

   ?value ""

  )

  b=ahiCreateStringField(

   ?name 'b

   ?prompt "Stop"

   ?value ""

  )

  c=ahiCreateStringField(

   ?name 'c

   ?prompt "Threshold"

   ?value ""

   )

  d=ahiCreateCyclicField(

   ?name 'd

   ?prompt "Edge Type"

   ?choices '("Rising" "Falling")

   ?value "Rising"

   ?defValue "Rising"

  )

  fieldList=list(

   list(a 20:10 230:10 90)

   list(b 20:40 230:10 90)

   list(c 20:70 230:10 90)

   list(d 20:110 230:10 90)

  )

 calCreateSpecialFunctionsForm('specialForm fieldList)

   )

)

=> myForm

The following example defines a callback procedure myFunctionPlotCB that calls the function calCreateSpecialFunction, which creates and displays the form My Test Function Form created for the user-defined function. The user-defined function is represented by a symbol myTestFunction.

procedure(myFunctionPlotCB()

 calCreateSpecialFunction(

  ?formSym 'specialForm

  ?formInitProc 'myForm

  ?formTitle "My Test Function Form"

  ?formCallback "calSpecialFunctionInput('myTestFunction '( a b c d))"

 )

)

=> myFunctionPlotCB

The following example registers the function myTestFunction with its callback myFunctionPlotCB.

calRegisterSpecialFunction(

 list("myTestFunction" 'myFunctionPlotCB)

)

=> nil

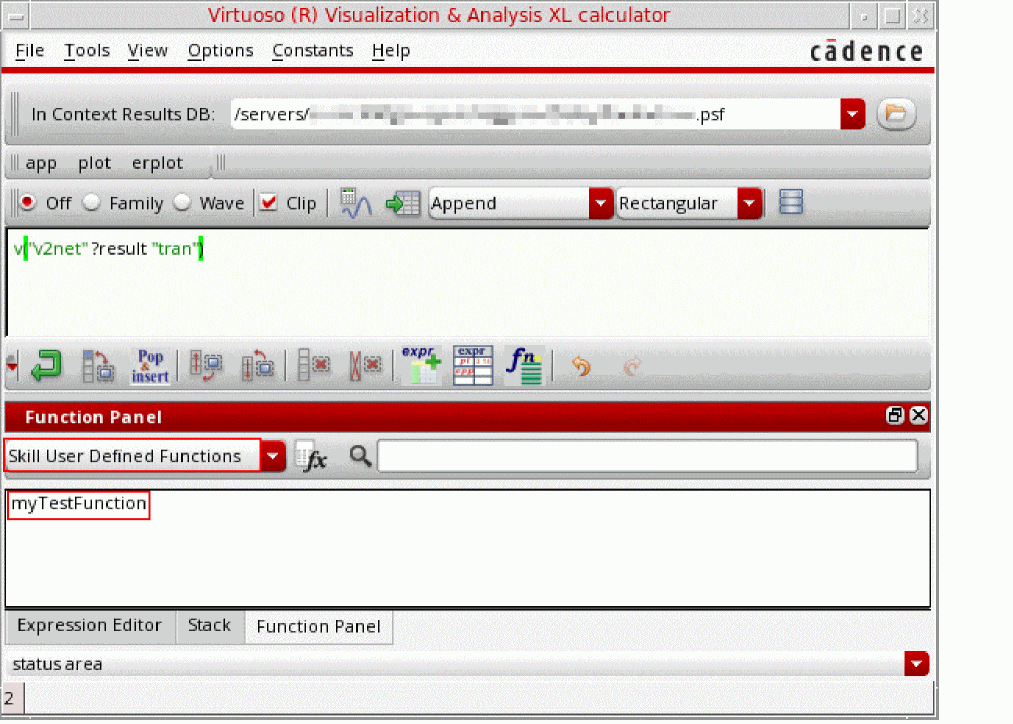

The next time you open the Calculator, the function myTestFunction, which you defined using the function calCreateSpecialFunction appear in the SKILL User Defined Functions category of the Function Panel, as shown in the following figure.

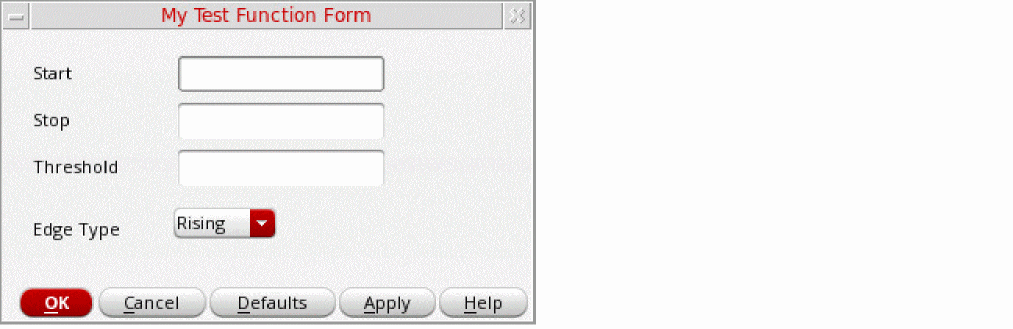

When you click myTestFunction from the SKILL User Defined Functions category in the Function Panel, the form that you created for the user-defined function using the function calCreateSpecialFunctionsForm opens.

Specify the arguments Start, Stop, Threshold, and Edge Type to 20u, 100u, 1.5, and Falling, respectively and then click OK.

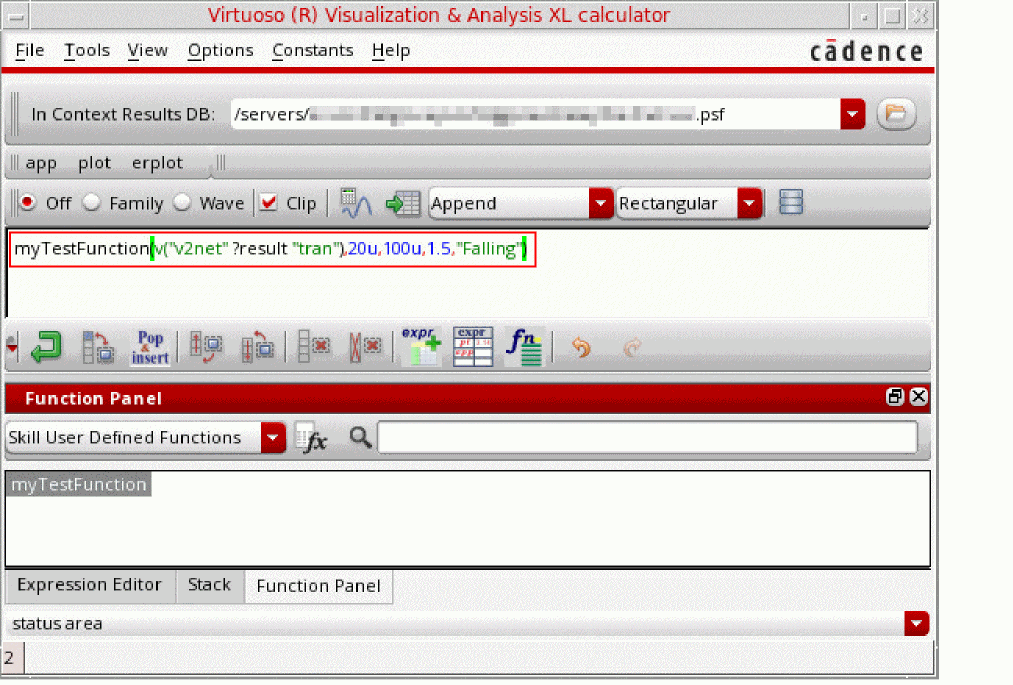

The following expression is built in the buffer with the specified form fields.

myTestFunction(v("v2net" ?result "tran"),20u,100u,1.5,"Falling")
