calCreateSpecialFunctionsForm

calCreateSpecialFunctionsForm(
s_formSymbol
l_fieldList
)
=> t / nil

Description

Registers and creates the form for a special (user-defined) function. The form title and callback are specified through the call to calCreateSpecialFunction.

The form is also created with ?unmapAfterCB set to t.

Arguments

s_formSymbol

Symbol of the form.

l_fieldList

List of fields to be added in the form.

Value Returned

t

The form for the special function is created successfully.

nil

The form for the special function cannot be created because of an error.

Examples

The following example defines a form myForm for a user-defined function. The form is represented by a symbol specialForm.

This form takes four arguments: Start, Stop, Threshold, and Edge Type.

These arguments are represented by symbols a, b, c, and d, respectively.

The first three arguments are string fields and the fourth argument Edge Type is a cyclic field. Valid values for the argument Edge Type are Rising and Falling. The default value is Rising.

procedure(myForm()
 let((a b c d fieldList)
  a=ahiCreateStringField(
   ?name 'a
   ?prompt "Start"
   ?value ""
  )
  b=ahiCreateStringField(
   ?name 'b
   ?prompt "Stop"
   ?value ""
  )
  c=ahiCreateStringField(
   ?name 'c
   ?prompt "Threshold"
   ?value ""
   )
  d=ahiCreateCyclicField(
   ?name 'd
   ?prompt "Edge Type"
   ?choices '("Rising" "Falling")
   ?value "Rising"
   ?defValue "Rising"
  )
  fieldList=list(
   list(a 20:10 230:10 90)
   list(b 20:40 230:10 90)
   list(c 20:70 230:10 90)
   list(d 20:110 230:10 90)
  )
 calCreateSpecialFunctionsForm('specialForm fieldList)
   )
)
=> myForm

The following example defines a callback procedure myFunctionPlotCB that calls the function calCreateSpecialFunction, which creates and displays the form My Test Function Form created for the user-defined function. The user-defined function is represented by a symbol myTestFunction.

procedure(myFunctionPlotCB()
 calCreateSpecialFunction(
  ?formSym 'specialForm
  ?formInitProc 'myForm
  ?formTitle "My Test Function Form"
  ?formCallback "calSpecialFunctionInput('myTestFunction '( a b c d))"
 )
)
=> myFunctionPlotCB

The following example registers the function myTestFunction with its callback myFunctionPlotCB.

calRegisterSpecialFunction(
 list("myTestFunction" 'myFunctionPlotCB)
)
=> nil

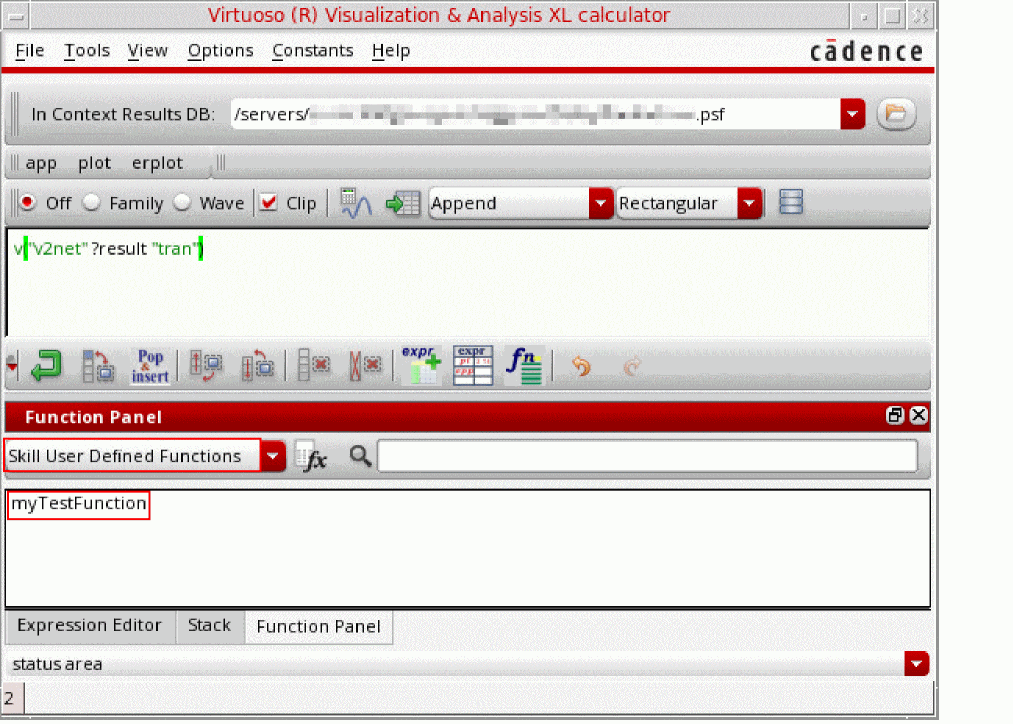

The next time you open the Calculator, the function myTestFunction, which you defined using the function calCreateSpecialFunction appear in the SKILL User Defined Functions category of the Function Panel, as shown in the following figure.

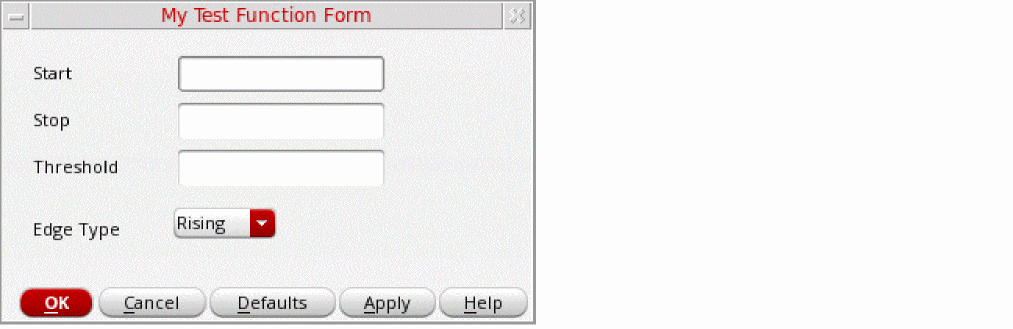

When you click myTestFunction from the SKILL User Defined Functions category in the Function Panel, the form that you created for the user-defined function using the function calCreateSpecialFunctionsForm opens.

Specify the arguments Start, Stop, Threshold, and Edge Type to 20u, 100u, 1.5, and Falling, respectively and then click OK.

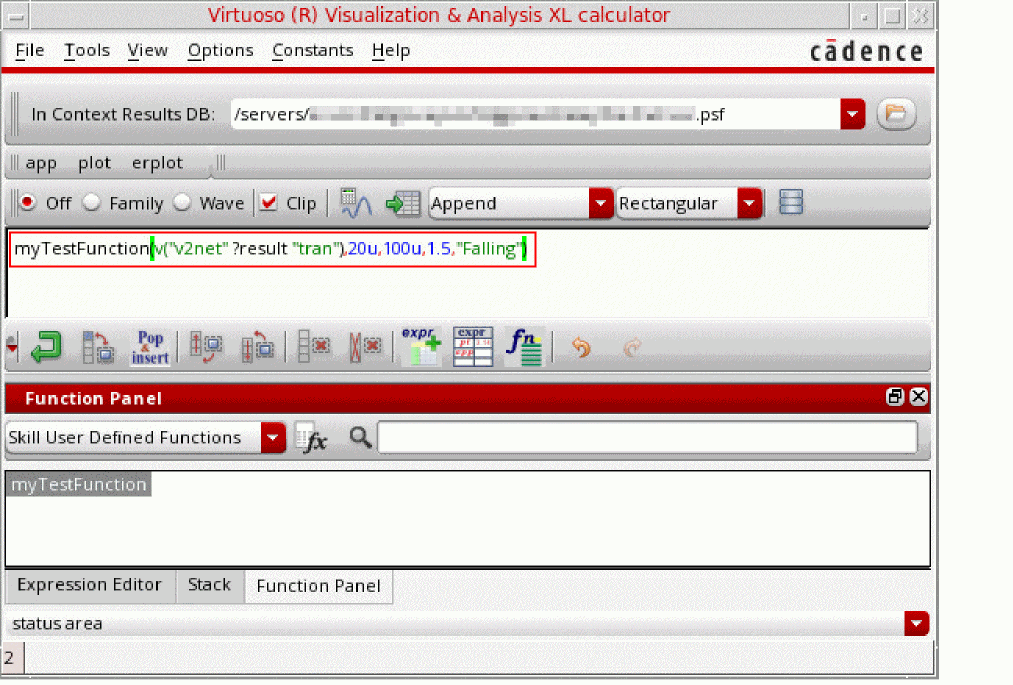

The following expression is built in the buffer with the specified form fields.

myTestFunction(v("v2net" ?result "tran"),20u,100u,1.5,"Falling")
