eyeMask

eyeMask(
o_waveform
t_xUnit
[ @rest l_vertices ]
)
=> o_waveform

Description

Creates a custom eye mask on an eye diagram at the specified vertices in the specified units.

Arguments

o_waveform	The eye diagram waveform on which eye mask is to be created.
t_xUnit	Units in which x coordinates of the vertices are specified. Valid values are: UI: x coordinates are specified in unit interval. s: x coordinates are specified in second.
@rest l_vertices	List specifying the coordinates of the eye mask. The coordinates must be ordered adjacently. You can also specify the coordinates of the eye mask using the VAR function.

Value Returned

o_waveform

Waveform ID representing eye diagram with the specified eye mask.

Examples

The following example creates a Waveform window and returns its window ID.

win1=awvCreatePlotWindow()

=> window:3

The following example opens simulation results stored in the specified directory.

openResults("/servers/user/design/prbs.raw")

=> "/servers/user/design/prbs.raw"

The following example lists the results available in the currently open results directory.

results()

=> tran()

The following example selects the tran result of the results directory.

selectResult('tran)

=> stdobj@0x319b4b30

The following example creates a waveform object jitter, representing the waveform of the signal jitter, which is available in the tran result of the results directory.

jitter=v("jitter")

=> srrWave:0x35c81020

The following example creates a waveform object eye, representing an eye diagram that is generated by applying the eyeDiagram function on the jitter signal.

eye=eyeDiagram(jitter 200n 1.4u 2*40n ?autoCenter t)

=> srrWave:0x35c81030

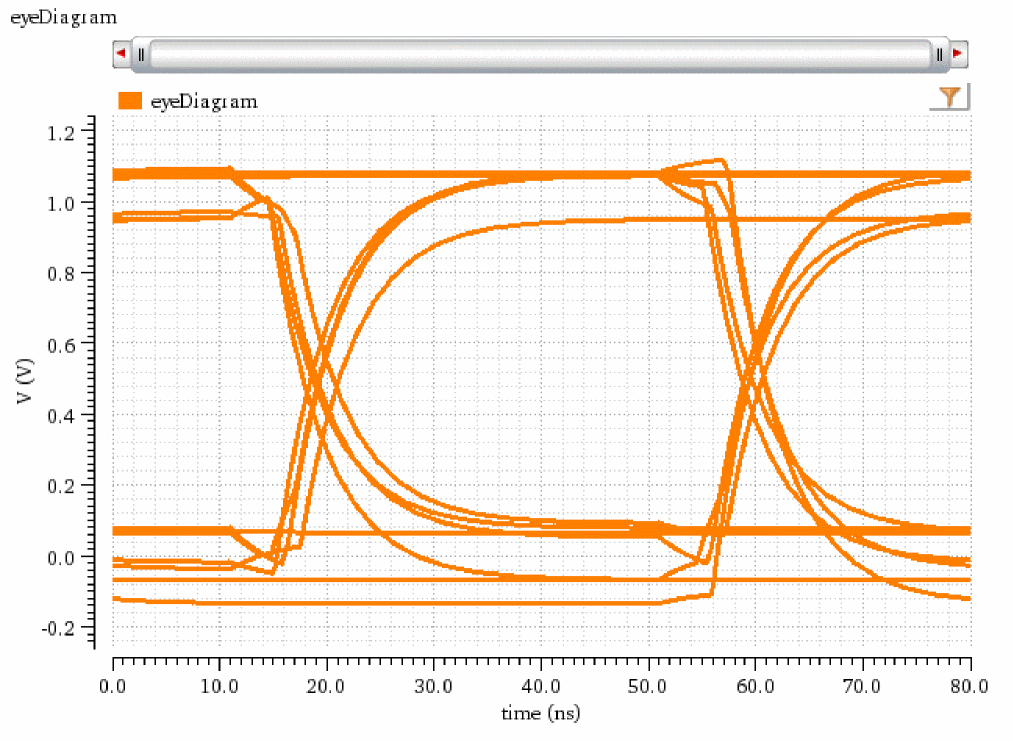

The following example plots the waveform eye in the Waveform window that you created using the function awvCreatePlotWindow.

awvPlotWaveform(

    win1

    list(eye)

    ?expr list("eyeDiagram")

    ?color list("y6")

    ?index list(1)

    ?lineType list("line")

    ?lineStyle list("solid")

    ?lineThickness list("thick")

    )

=> t

The following example creates another Waveform window and returns its window ID.

win2=awvCreatePlotWindow()

=> window:4

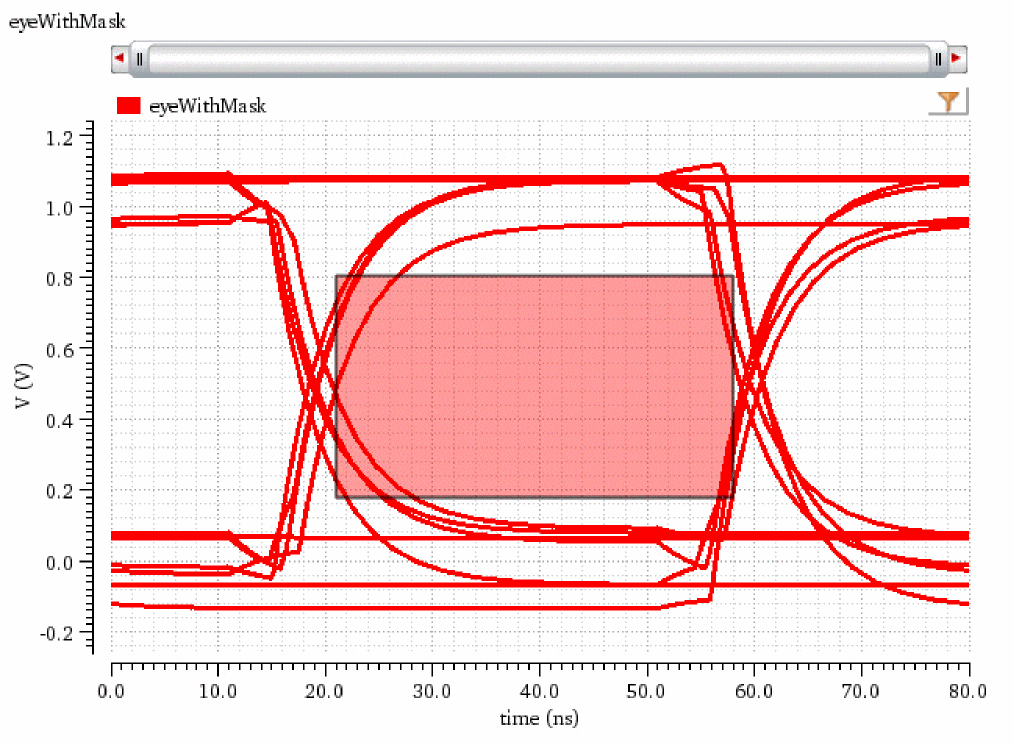

The following example creates a waveform object eyeMaskR that represents the eye diagram eye with an eye mask of the rectangle geometry placed over it at the specified coordinates.

eyeMaskR=eyeMask(eye "s" '(21n 0.179) '(21n 0.805) '(58n 0.805) '(58n 0.179))

=> srrWave:0x35c37040

The following example plots the waveform object eyeMaskR.

awvPlotWaveform(

    win2

    list(eyeMaskR)

    ?expr list("eyeWithMask")

    ?color list("y1")

    ?index list(1)

    ?lineType list("line")

    ?lineStyle list("solid")

    ?lineThickness list("thick")

    )

=> t

The following example creates another Waveform window and returns its window ID.

win3=awvCreatePlotWindow()

=> window:5

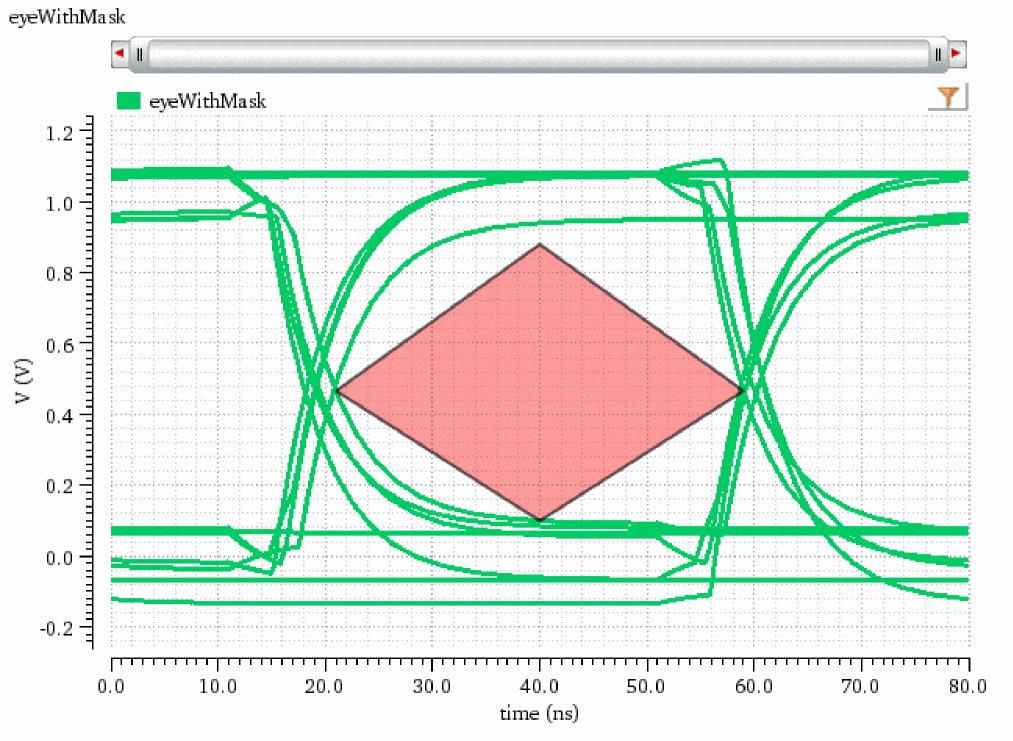

The following example creates a waveform object eyeMaskD that represents the eye diagram eye with an eye mask of the diamond geometry placed over it at the specified coordinates.

eyeMaskD=eyeMask(eye "s" '(21n 0.466) '(40n 0.880) '(59n 0.466) '(40n 0.099))

=> srrWave:0x35c37050

The following example plots the waveform object eyeMaskD.

awvPlotWaveform(

    win3

    list(eyeMaskD)

    ?expr list("eyeWithMask")

    ?color list("y2")

    ?index list(1)

    ?lineType list("line")

    ?lineStyle list("solid")

    ?lineThickness list("thick")

    )

=> t

The following example creates a Waveform window and returns its window ID.

win4=awvCreatePlotWindow()

=> window:6

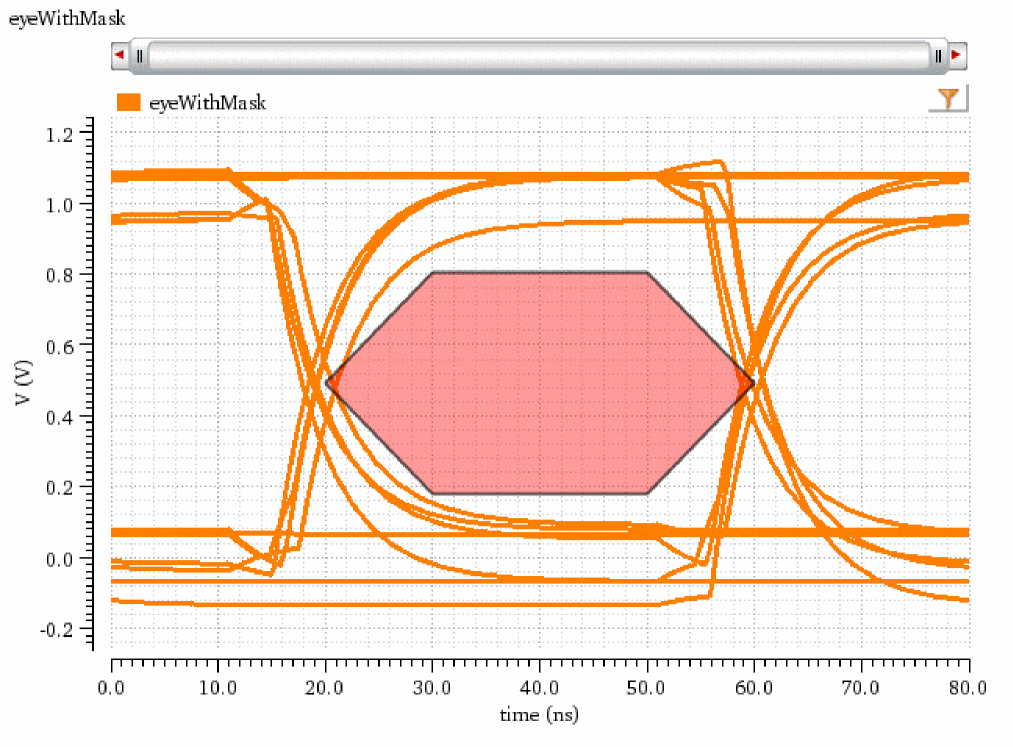

The following example creates a waveform object eyeMaskH that represents the eye diagram eye with an eye mask of the hexagon geometry placed over it at the specified coordinates.

eyeMaskH=eyeMask(eye "s" '(20n 0.492) '(30n 0.805) '(50n 0.805) '(60n 0.492) '(50n 0.179) '(30n 0.179))

=> srrWave:0x35c37060

The following example plots the waveform object eyeMaskH.

awvPlotWaveform(

    win4

    list(eyeMaskH)

    ?expr list("eyeWithMask")

    ?color list("y6")

    ?index list(1)

    ?lineType list("line")

    ?lineStyle list("solid")

    ?lineThickness list("thick")

    )

=> t
