rfInputNoise

rfInputNoise(
t_unit
[ ?result t_noiseResultName ]
)
=> o_waveform / nil

Description

Returns the input noise waveform. This function is run on the results of the Spectre pss-pnoise and hb-hbnoise analyses.

Arguments

t_unit

Specifies the unit of y axis.

Valid values are:

  • V/sqrt(Hz)
  • V**2/Hz
  • dBc/Hz
  • dBV/Hz

?result t_noiseResultName

Name of the results file alias in which the input noise waveform is saved.

Value Returned

o_waveform

Output waveform representing the input noise.

nil

Input noise waveform cannot be created because of an error.

Examples

The following example plots the input noise waveform saved in the results file pnoise with y-axis units as V**2/Hz.

plot(rfInputNoise("V**2/Hz" ?result "pnoise"))

The following example opens simulation results of hb-hbnoise analysis stored in the specified results directory.

openResults("/servers/user/lib/cell/maestro/results/maestro/ExplorerRun.0/psf/test/psf")
=> "/servers/user/lib/cell/maestro/results/maestro/ExplorerRun.0/psf/test/psf"

The following example lists the results available in the currently open results directory.

results()
(hb_td hb_fd hb_fi hbac hbnoise_am
    hbnoise_am_xfersrc hbnoise_src hbnoise_pm hbnoise_pm_xfersrc hbnoise
    hbnoise_xfersrc hbnoise_lsb hbnoise_lsb_xfersrc model instance
    output designParamVals primitives subckts variables
)

The following example selects the result hbnoise.

selectResults('hbnoise)
=> stdobj@0x3227fa10

The following example creates a waveform object wave1 that represents the plot for input noise with y-axis unit specified as V/sqrt(Hz).

wave1=rfInputNoise("V/sqrt(Hz)" ?result "hbnoise")
=> srrWave:0x36862080

The following example creates a Waveform window win1 and returns its window ID.

win1=awvCreatePlotWindow()
=> window:3

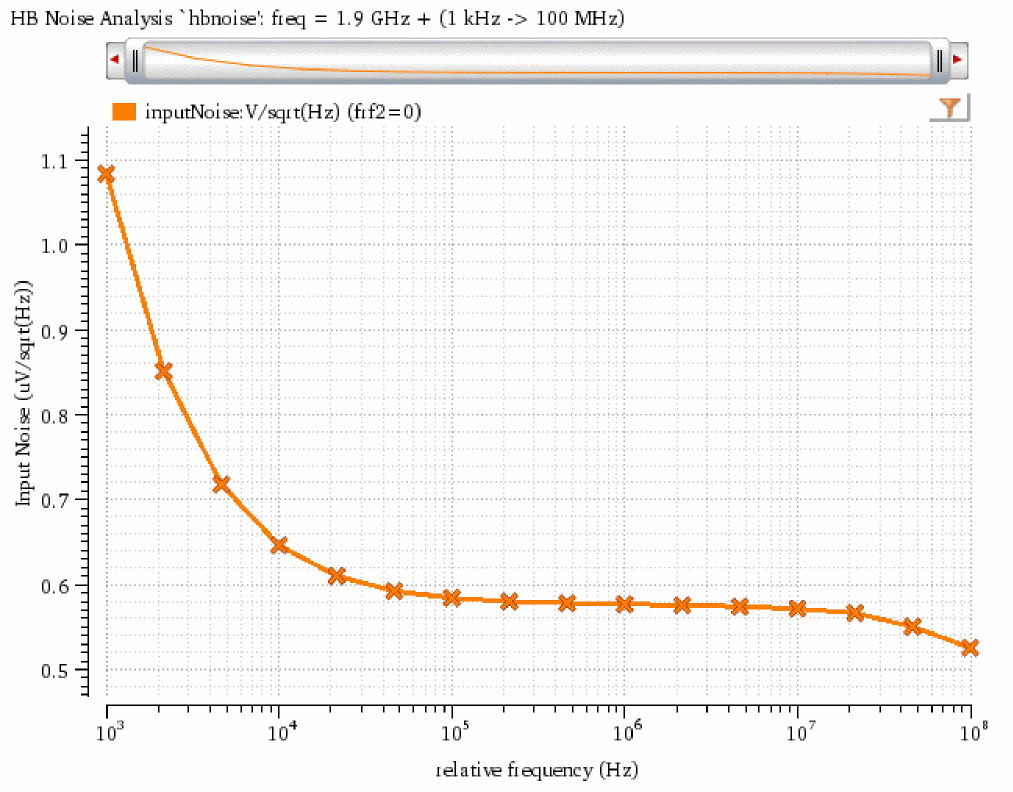

The following example plots the waveform wave1, which represents the input noise, in the Waveform window win1.

awvPlotWaveform(
    win1
    list(wave1)
    ?expr list("inputNoise:V/sqrt(Hz)")
    ?color list("y6")
    ?lineType list("line")
    ?lineStyle list("solid")
    ?lineThickness list("thick")
    ?showSymbols list(t)
    ?dataSymbol list("x")
    )
=> t

The following example creates a waveform object wave1 that represents the plot for input noise with y-axis unit specified as dBV/Hz.

wave2=rfInputNoise("dBV/Hz" ?result "hbnoise")
=> srrWave:0x368621b0

The following example creates another Waveform window win2 and returns its window ID.

win2=awvCreatePlotWindow()
=> window:4

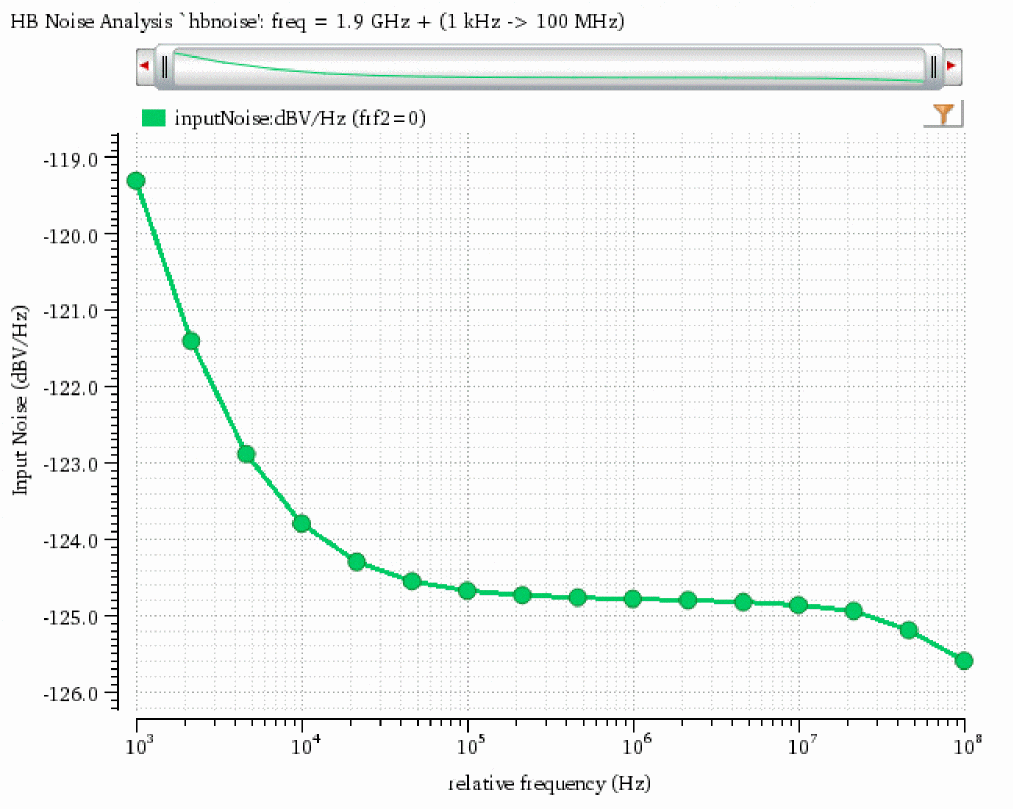

The following example plots the waveform wave2, which represents the input noise, in the Waveform window win2.

awvPlotWaveform(
    win2
    list(wave2)
    ?expr list("inputNoise:dBV/Hz")
    ?color list("y18")
    ?lineType list("line")
    ?lineStyle list("solid")
    ?lineThickness list("thick")
    ?showSymbols list(t)
    ?dataSymbol list(".")
    )
=> t
