rfTransferFunction

rfTransferFunction(
t_unit
[ ?result t_resultName ]
)
=> o_waveform / nil

Description

Returns the waveform representing the transfer function. This function is run on the results of the pss-pnoise and hb-hbnoise analysis.

Arguments

t_unit

Specifies the unit of y-axis.

Valid values are:

  • V/V
  • dB

?result t_noiseResultName

Name of the results file alias in which the gain waveform is saved.

Value Returned

o_waveform

Waveform representing the transfer function.

nil

Indicates an error.

Examples

The following example opens simulation results of hb-hbnoise analysis stored in the specified directory.

openResults("/servers/user/lib/cell/maestro/results/maestro/ExplorerRun.0/psf/test/psf")
=> "/servers/user/lib/cell/maestro/results/maestro/ExplorerRun.0/psf/test/psf"

The following example lists the results available in the currently open results directory.

results()
=>
(hb_td hb_fd hb_fi hbac hbnoise_am
    hbnoise_am_xfersrc hbnoise_src hbnoise_pm hbnoise_pm_xfersrc hbnoise
    hbnoise_xfersrc hbnoise_lsb hbnoise_lsb_xfersrc model instance
    output designParamVals primitives subckts variables
)

The following example selects the hbnoise result.

selectResults('hbnoise)
=> stdobj@0x31a12a10

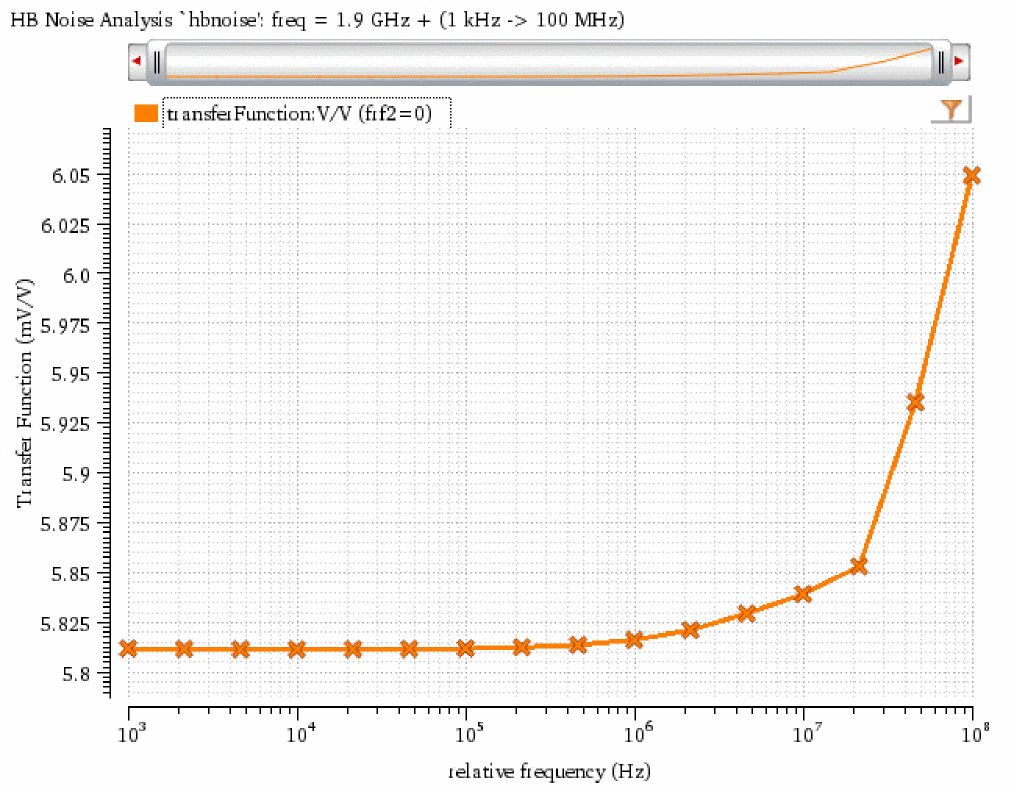

The following example creates a waveform object wave1 that represents the plot for transfer function with y-axis unit specified as V/V.

wave1=rfTransferFunction("V/V" ?result "hbnoise")
=> srrWave:0x35ff7030

The following example creates a Waveform window and returns its window ID.

win1=awvCreatePlotWindow()
=> window:3

The following example plots the waveform wave1, which represents the transfer function, in the Waveform window win1.

awvPlotWaveform(
    win1
    list(wave1)
    ?expr list("transferFunction:V/V")
    ?color list("y6")
    ?lineType list("line")
    ?lineStyle list("solid")
    ?lineThickness list("thick")
    ?showSymbols list(t)
    ?dataSymbol list("x")
    )
=> t

The following example creates a waveform object that represents the plot for transfer function with y-axis unit specified as dB.

wave2=rfTransferFunction("dB" ?result "hbnoise")
=> srrWave:0x35ff7100

The following example creates another Waveform window and returns its window ID.

win2=awvCreatePlotWindow()
=> window:4

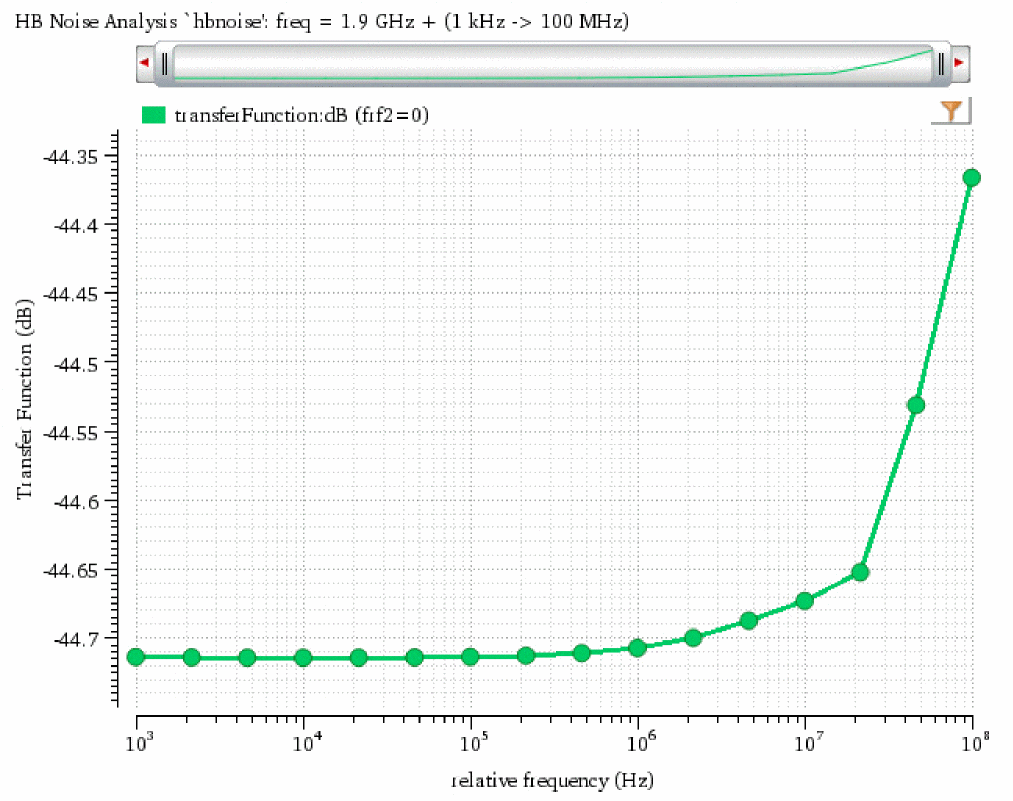

The following example plots the waveform wave2, which represents the transfer function, in the Waveform window win2.

awvPlotWaveform(
    win2
    list(wave2)
    ?expr list("transferFunction:dB")
    ?color list("y18")
    ?lineType list("line")
    ?lineStyle list("solid")
    ?lineThickness list("thick")
    ?showSymbols list(t)
    ?dataSymbol list(".")
    )
=> t
