Adding the cdsVia Device to the validVias Constraint

To make an installed cdsVia device available in the Create Via form, you need to add it to the validVias constraint of the required constraint group in the technology file. You can do this by manually editing the technology file and then reloading it or by using the Process Rule Editor to edit the technology file.

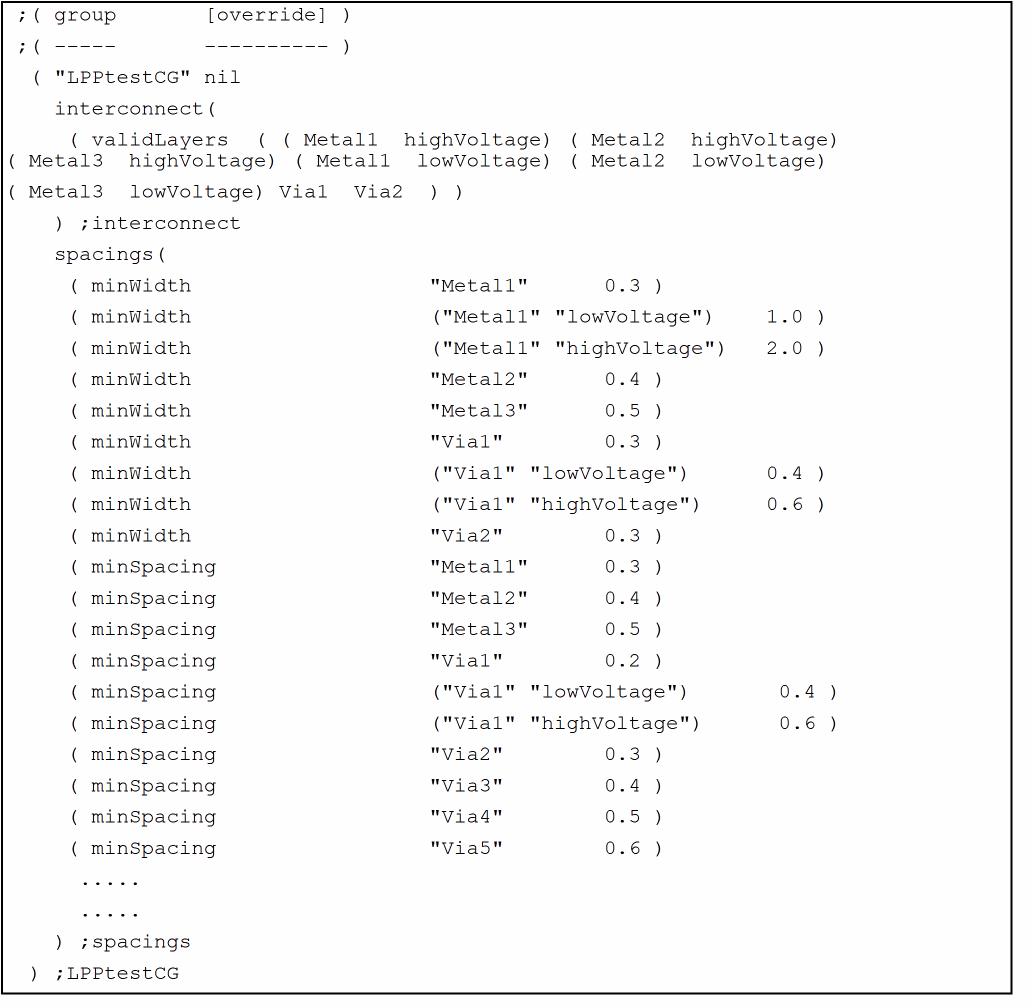

You can add the cdsVia device to the constraint group that contains the purpose-aware rules. The following image shows the example of the user-defined LPPtestCG constraint group, containing various purpose-aware minWidth and minSpacing rules.

To edit the technology file by using the Process Rule Editor:

1. In the layout window, choose Window – Assistants – Constraint Manager.
   The Constraint Manager assistant opens.
2. Click the Process Rules Editor icon .

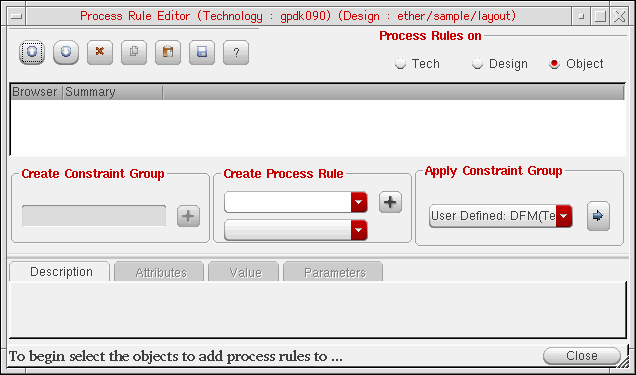

   The Process Rules Editor window opens.


3. Select the Tech option in the Process Rules on section.
4. In the Browser section, expand the constraint group to which you want to add the cdsVia.
5. Click the Value tab in the lower section of the window.
6. Scroll to select the installed cdsVia device.

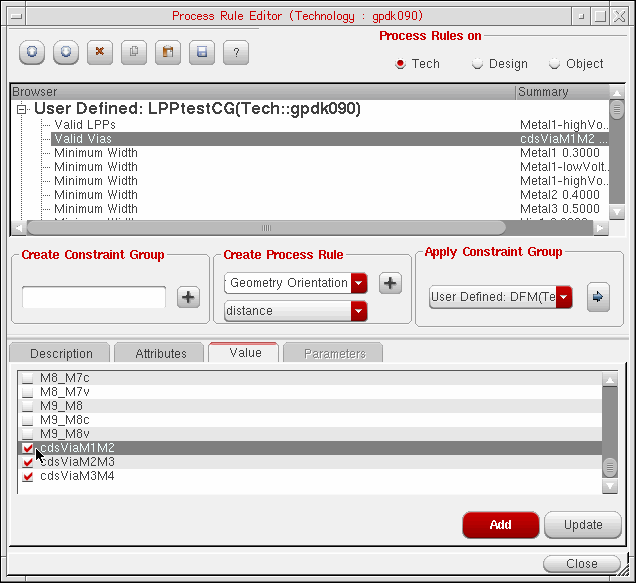

   For example, the image shows the cdsViaM1M2, cdsViaM2M3, and cdsViaM3M4 cdsVias selected.


7. Click Update.
8. Click Close.

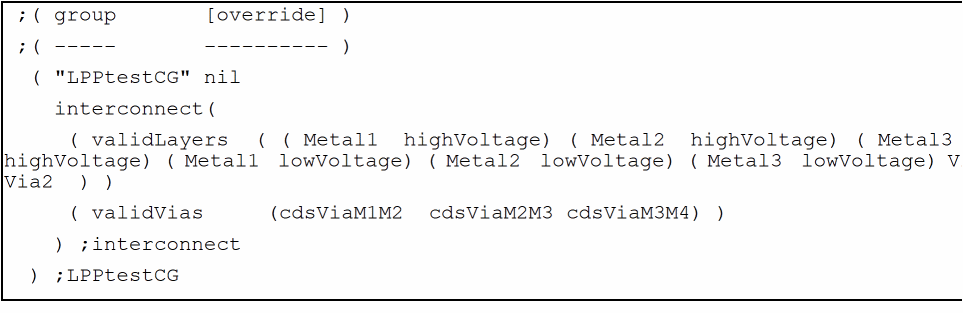

   The following image shows the cdsViaM1M2, cdsViaM2M3, and cdsViaM3M4 cdsVias added to the validVias constraint in the LPPtestCG constraint group.



To instantiate the installed cdsVia device in your design, you can create a cdsVia.
