Creating an Arc in a Polygon

To create an arc in a polygon:

1. In the layout window, from the Layers panel, select the layer on which you want to create an arc.
2. Choose Create – Shape – Polygon.
3. Press F3 to open the Create Polygon form.
4. Select the Add an arc segment check box.
5. Specify the net name and ROD settings as required.

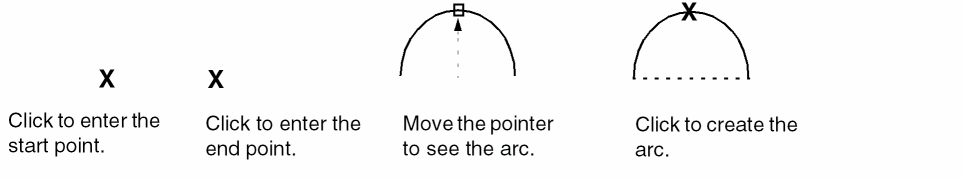

6. Click on the canvas to indicate the start point, the end point, and a radius point on the arc.
   Alternatively, you can specify the points of the arc using the Enter Points form.


   If you have already entered some points of a polygon, the last point you clicked is the start point of the arc.

You can also use the Modify Corner command to curve the corner of a polygon.
