Adding Objects with a Pre-Selected Aligned Group

To add objects with a pre-selected aligned group:

1. On the layout canvas, use Shift + click to select the unaligned objects.
2. Choose Edit – Advanced – Align to open the Align form.
3. Click Set New Reference.
   You are prompted to select a reference object for the alignment.
4. On the canvas, click at the point to which you want the objects to align.
   The unaligned devices align with the original selected alignment group.

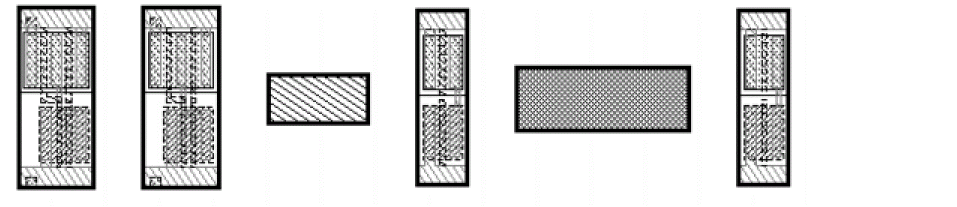

   Before:

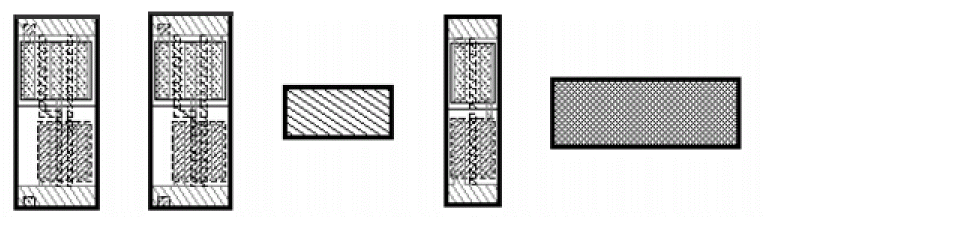

   After:
