Moving a Multipart Rectangle

When you move a multipart rectangle within a cellview, the master rectangle and all of its associated arrays of subrectangles move together. You cannot move a master rectangle separately from its associated subrectangles, nor can you move subrectangles separately from their master rectangle.

When you move a multipart rectangle that has objects aligned to it, the objects move to stay in alignment with the multipart rectangle.

To move a multipart rectangle:

1. In the layout window, choose Edit – Move.

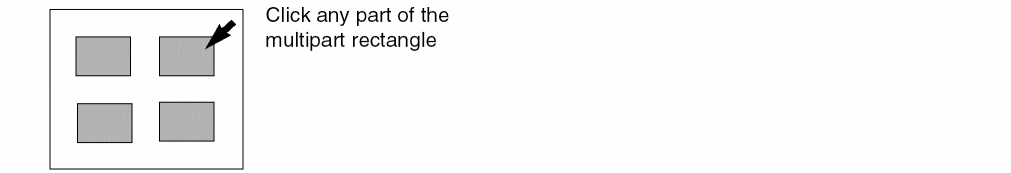

2. In full selection mode, choose the multipart rectangle by clicking on the master rectangle or any subpart.


3. Click on the canvas to place the multipart rectangle. The aligned objects follow.

The multipart rectangle and all objects aligned to it appear in the new location.
