Saving Bumps to File

Virtuoso Stacked Silicon solution provides options to save bumps to a file. The file contains detailed information about the bumps, including their locations and connectivity information.

You can save bumps in the current die to a text file. You can later reuse this file to create similar bumps on other dies.

To save bumps to a file:

1. With the container or package layout open, launch the Edit-In-Concert mode by selecting Module – Edit-In_Concert.
   The package design is displayed on the first tab, and the layouts of the die instances in the package are displayed on separate tabs.
2. Click the tab that contains the bumps.

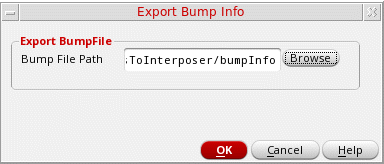

3. Choose Module – Bump Management – Save Bumps to File. The Export Bump Info form is displayed.


4. Specify a file name and the location in the Bump File Path field. You can click Browse to select a location.
5. Click OK.

Related Topics

• Export Bump Info Form (form reference)
