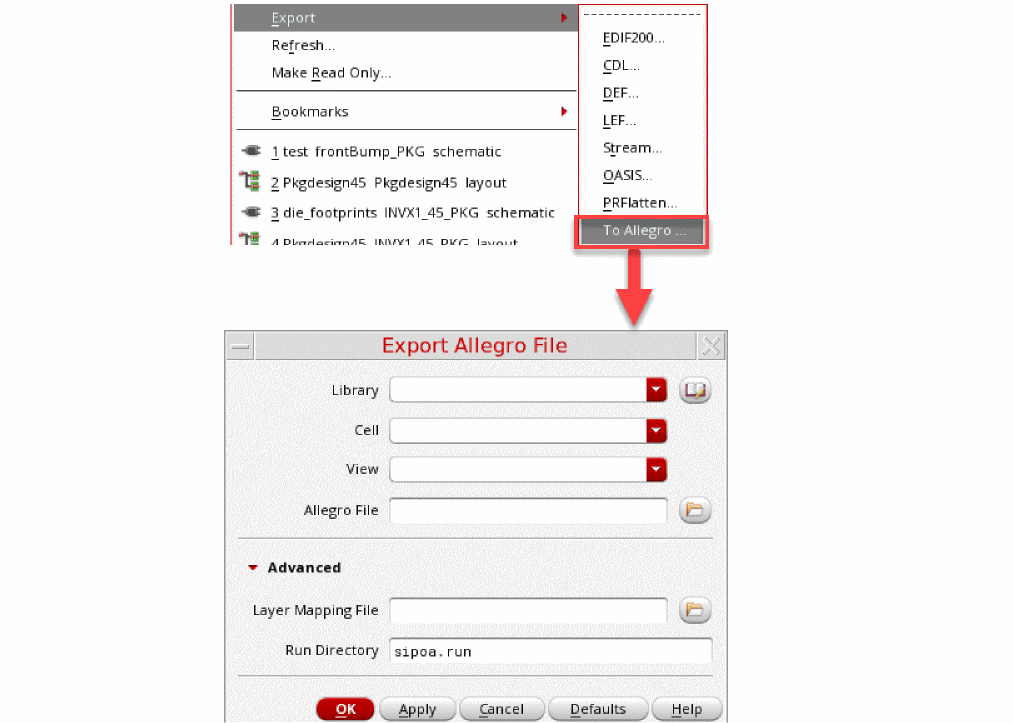

Export Package Layout

When exporting the package layout, the Allegro translator creates a .sip file from the OA library (specified cellview) that has been created or modified to ensure it has the same structure.

During export to Allegro, the data is translated in the following two steps:

• Opening the OA design and writing its content or just the updating content to an intermediate file.
• Reading the intermediate file in the SPB tool and creating or updating the .sip design from its contents.
