SiP DRC Checker

---

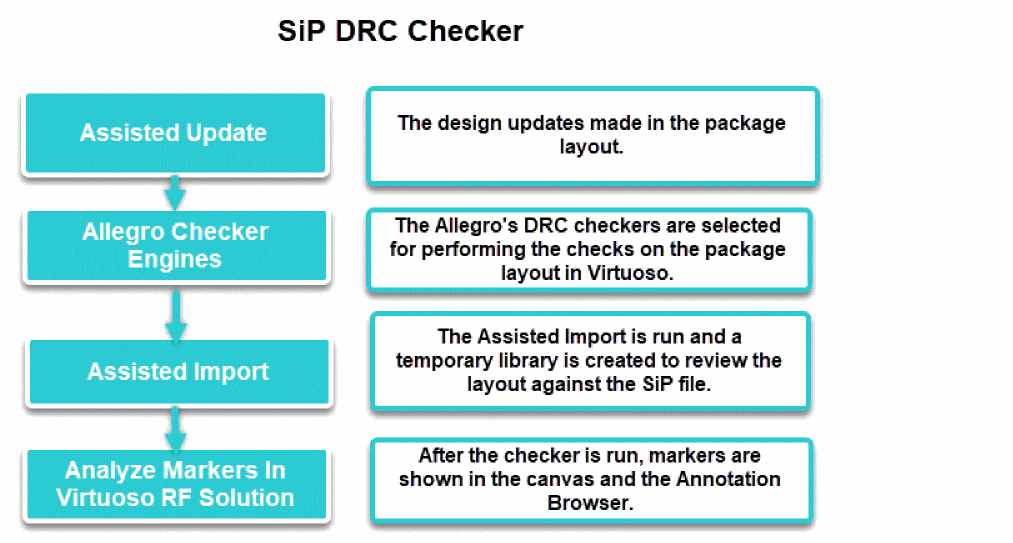

The SiP DRC checker lets you check DRC issues in package layout within the Virtuoso RF Solution environment. It uses DRC checking engines of Allegro in the background.

Once the checks are complete, markers are shown in the same Virtuoso RF package layout and the Annotation browser. Consequently, you do not have to step out of Virtuoso Studio to view or analyze the issues. Markers have the same look and feel as Allegro markers, thereby, making the adoption easier for existing package designers, who are familiar with the Allegro environment. Both DRC checking engines from Allegro, dbdoctor and RAVEL, are supported.
