merge_poly

merge_poly
[ -set d_setObj ]

Description

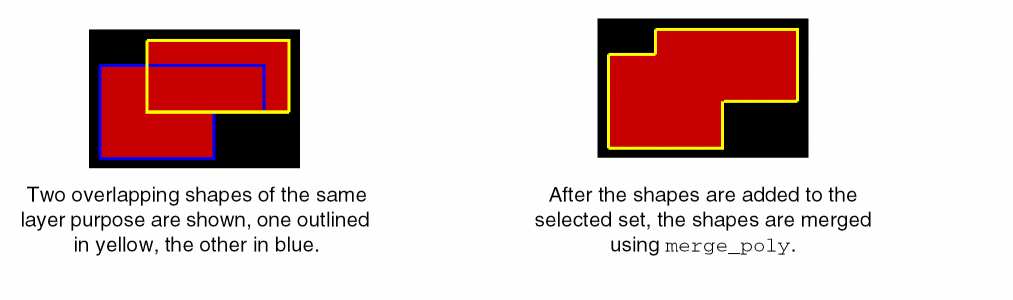

Merges polygon shapes in the given set or the selected set at the top level. Only rectangles, octagons and polygons can be merged. All other shapes in the set are ignored. Shapes which overlap on the same layer purpose pair, and which belong to the same parent (for example, pin or top-level occurrence) are combined into a single geometry. If the combined geometry is rectangular, the original shapes are replaced with a rectangle shape under the same parent. If not, the original shapes are replaced with a polygon under the same parent. All-angle objects are merged to 45-degree edges when the final polygon is created.

Arguments

Examples

Related Topics
