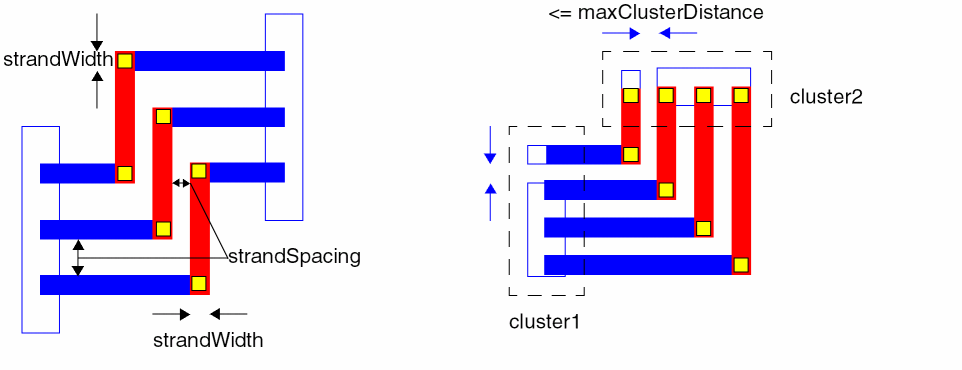

Strand Routing Commands

Strand routing commands are used to do the following:

Preparing for Strand Routing

To strand route nets, do the following:

  1. (Optional) Identify the nets and create a net_strand group of those nets using create_group.
    • For nets in a set, use
      create_group -name s_groupName -type net_strand -set d_setObj
    • To specify the nets by name, use
      create_group -name s_groupName -type net_strand -net {s_netName}
    This step is required only if strand constraints will be used.
  2. (optional) Create a constraint group containing strand routing constraints for the nets.
  3. Route the nets using strand_route.

Related Topics

Specialty Route Commands

Strand Routing Constraints
