minCornerClearance

Sets the minimum spacing required between the corners of shapes on different layers.

minCornerClearance Quick Reference

Constraint Type	Layer pair (non-symmetric)
Value Types	`Value`
Database Types	Design, Technology
Scope	design, foundry
Category	Spacing

Value Type

Value

Specifies in user units the minimum spacing required between the corners of shapes on different layers.

Optional Parameters

cornerType

Specifies the type of layer1 corners to which the constraint applies.

Type: IntValue 0 allCorner
1 concaveCorner
2 convexCorner

otherCornerType

Specifies the type of layer2 corners to which the constraint applies.

Type: IntValue 0 otherAllCorner
1 otherConcaveCorner
2 otherConvexCorner

deltaVoltage

Specifies that the constraint applies only if the maximum voltage difference between the two shapes is greater than this value.

Type: FltValue

Examples

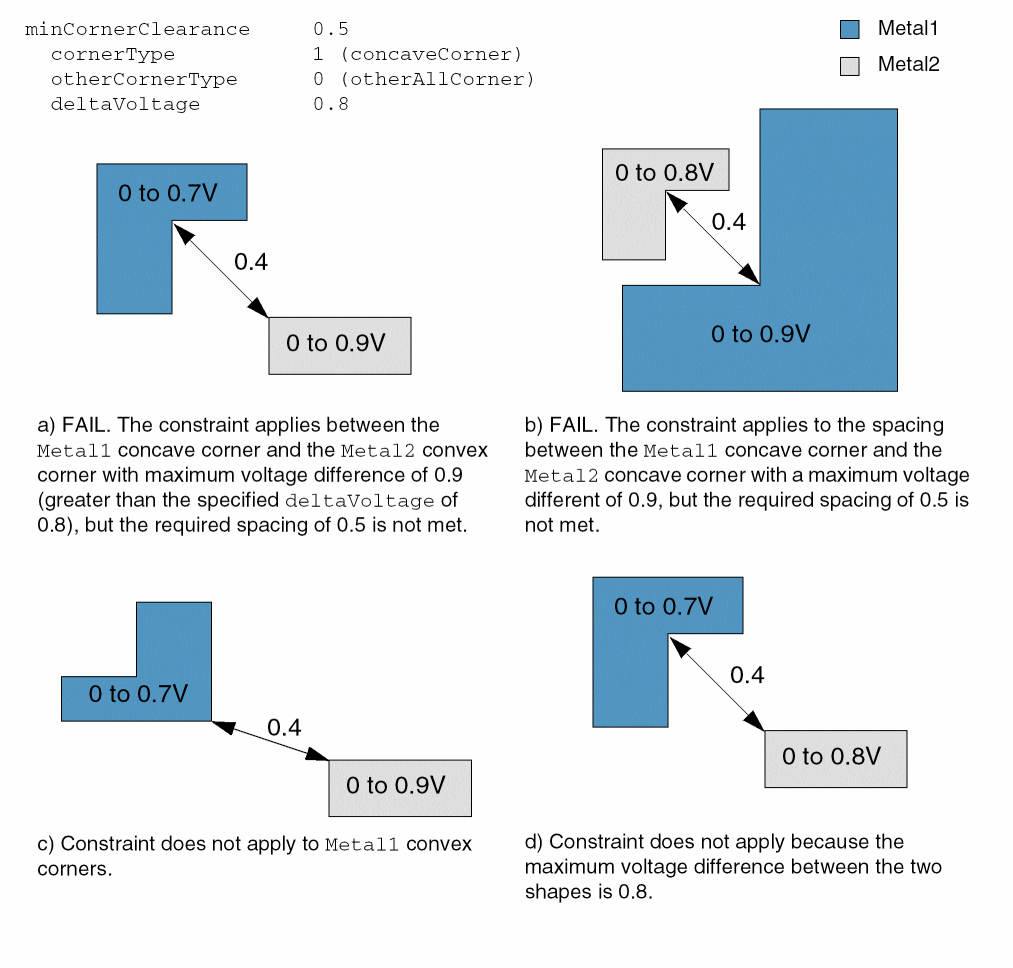

Sets a minimum spacing requirement of 0.5 user units between concave corners on Metal1 and all corners on Metal2 provided the maximum voltage difference between the shapes exceeds 0.8V.

set_constraint_parameter -name cornerType -IntValue 1
set_constraint_parameter -name otherCornerType -IntValue 0
set_constraint_parameter -name deltaVoltage -FltValue 0.8
set_layerpair_constraint -constraint minCornerClearance \
  -layer1 "Metal1" -layer2 "Metal2" \
  -Value 0.5
