maxDiagonalEdgeLength

Specifies the maximum length of a diagonal edge on the specified layer.

maxDiagonalEdgeLength Quick Reference

Value Type

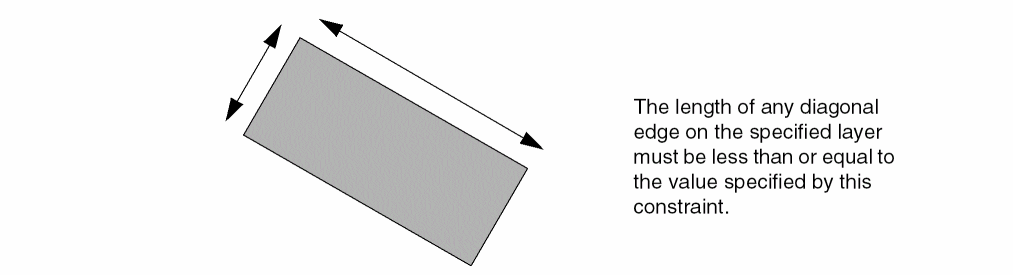

maxDiagonalEdgeLength constraints have a Value that is the maximum length of a diagonal edge on the layer.

Examples

This example sets the maximum diagonal edge length on poly1 to 3.0.

set_layer_constraint -constraint maxDiagonalEdgeLength \
  -layer poly1 -Value 3.0

spacings(
         (maxDiagonalEdgeLength "poly1" 3.0)
        )

Related Topics

Length and Width Constraints
