maxDiffusionLength

Specifies the maximum diffusion length between two cut shapes and between a cut shape and a line-end of the diffusion shape.

maxDiffusionLength Quick Reference

Constraint Type	Layer-pair (non-symmetric)
Value Types	Value
Database Types	Design, Technology
Scope	design, foundry
Category	Length and Width
Group Operators	AND, OR

Value Type

Value

Specifies the maximum diffusion length, in user units, between two cut shapes and between a cut shape and a line-end of the diffusion shape.

Required Parameters

'width f_width

Specifies that the constraint applies only if the width of the diffusion shape is less than this value.

Examples

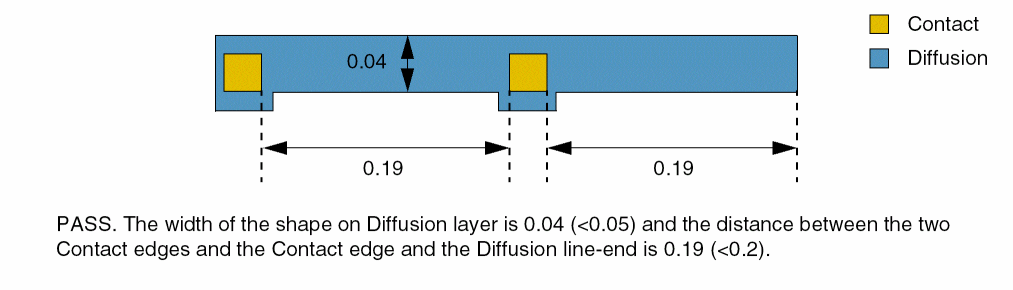

Requires that the distance between two Contact edges and a Contact edge and the nearest Diffusion line-end must be less than 0.2 if the width of the Diffusion shape is less than 0.05.

set_constraint_parameter -name width -Value 0.05
set_layerpair_constraint -constraint maxDiffusionLength \
  -layer1 Diffusion -layer2 Contact -Value 0.2
