minDiagonalEdgeLength

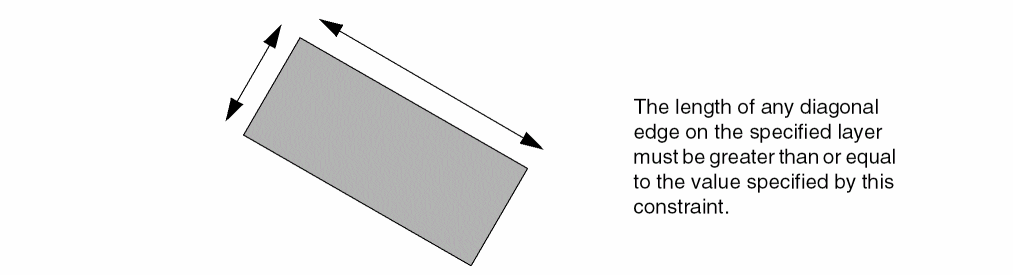

Specifies the minimum length of a diagonal edge on the specified layer.

maxDiagonalEdgeLength Quick Reference

Value Type

minDiagonalEdgeLength constraints have a Value that is the minimum length of a diagonal edge on the layer.

Examples

This example sets the minimum diagonal edge length on poly1 to 3.0.

set_layer_constraint -constraint minDiagonalEdgeLength \
  -layer poly1 -Value 3.0

LAYER poly1
 DIAGMINEDGELENGTH 3.0 ;

spacings(
         (minDiagonalEdgeLength "poly1" 3.0)
        )

Related Topics

Length and Width Constraints
