minDiagonalWidth

Sets the minimum width of diagonal shapes on a layer.

minDiagonalWidth Quick Reference

Value Type

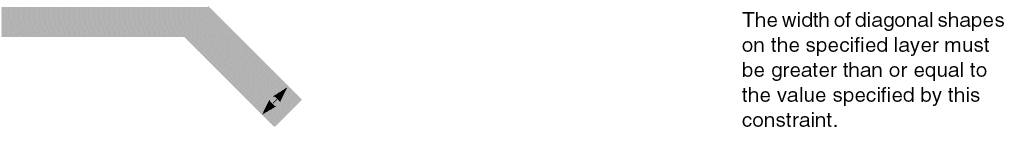

minDiagonalWidth constraints have a Value that represents the minimum diagonal width for any geometry.

Examples

This example sets the minimum width of diagonal shapes on Metal1 to 1.0.

set_layer_constraint -constraint minDiagonalWidth \
 -layer Metal1 -Value 1.0

LAYER Metal1
  DIAGWIDTH 1.0

spacings(
         (minDiagonalWidth "Metal1" 1.0
        )
