minConcaveCornerOverlap

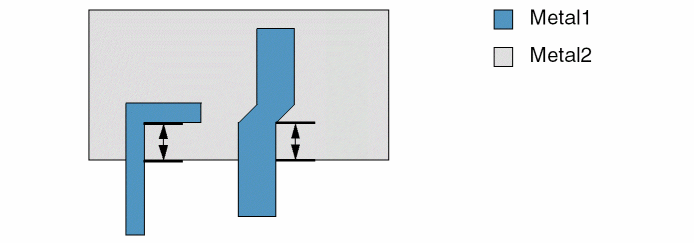

Sets the minimum overlap of a shape on layer2 over an inside corner of a shape on layer1. The minimum inside corner overlap applies to an inside corner created by a geometry at any angle, diagonal, or 90 degrees.

minConcaveCornerOverlap Quick Reference

Value Type

Value

Specifies the minimum overlap from the inside corner of a shape on layer1 to the edge of the enclosing shape on layer2.

Examples

The following example sets the minimum inside corner overlap of shapes on layer Metal2 over shapes with inside corners on layer Metal1 to 1.0.

set_layerpair_constraint -constraint minConcaveCornerOverlap \
 -layer1 Metal1 -layer2 Metal2 -Value 1.0

Related Topics

Overlap Constraints
