minOverlap

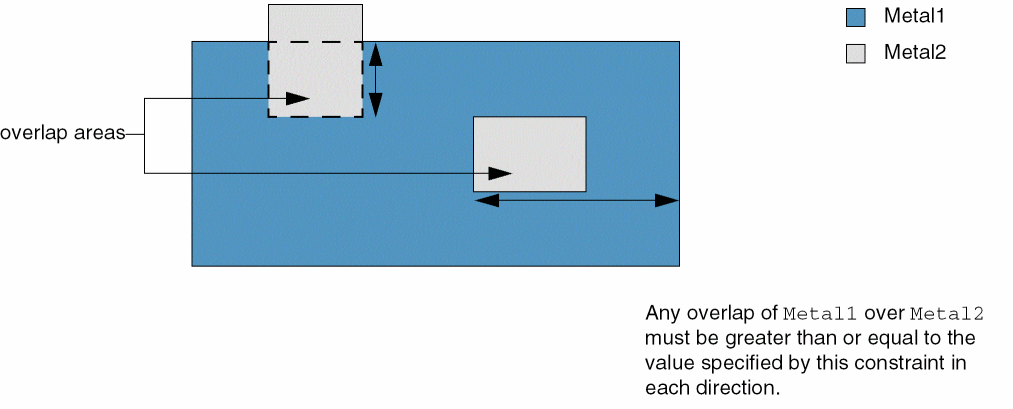

Sets the minimum distance by which a shape on layer1 must overlap a shape on layer2.

minOverlap Quick Reference

Constraint Type	Layer pair
Value Type	Value
Database Types	Design, Technology
Scope	design, foundry
Category	Overlap

Value Type

Value

Represents the minimum overlap in user units.

Examples

Sets the minimum overlap to the minimum distance between the inside and outside edges of shapes on Metal1 over shapes on Metal2 to 0.75.

set_layerpair_constraint -constraint minOverlap \
 -layer1 Metal1 -layer2 Metal2 -Value 0.75

Related Topics

Overlap Constraints
