135RouteGridOffset

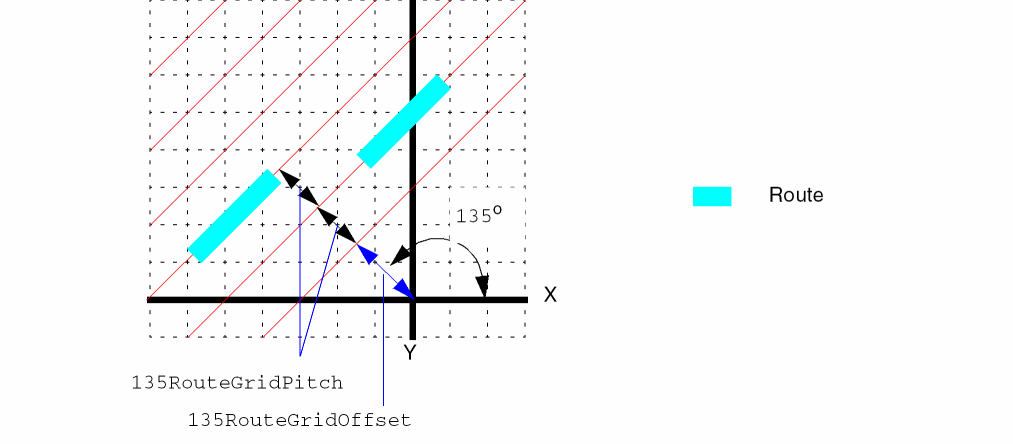

Specifies the offset from the origin for the start of the left diagonal routing grid for the layer. The left diagonal axis is found by rotating the horizontal axis 135 degrees counterclockwise.

135RouteGridOffset Quick Reference

Value Type

135RouteGridOffset constraints have a Value that represents the offset from the origin as a diagonal distance in user units.

Examples

This example set the left diagonal routing grid offset on Metal3 to 1.2 user units.

set_layer_constraint -constraint 135RouteGridOffset \
-layer Metal3 -Value 1.2

routingGrids(
             (leftDiagOffset "Metal3" 1.2)
            )
