135RouteGridPitch

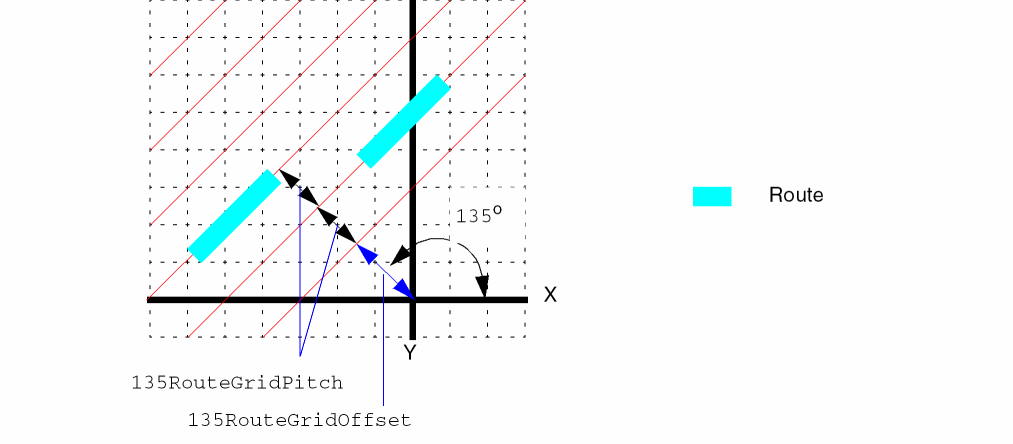

Sets the 135-degree spacing, edge-to-edge and in user units, between diagonal, 45-degree routing grids for the layer.

135RouteGridPitch Quick Reference

Value Type

135RouteGridPitch constraints have a Value that represents the pitch as a diagonal distance in user units.

Examples

This example sets the left diagonal routing grid pitch on Metal3 to 1.0 user units.

set_layer_constraint -constraint 135RouteGridPitch \
-layer Metal3 -Value 1.0

routingGrids(
             (leftDiagPitch "Metal3" 1.0)
            )
