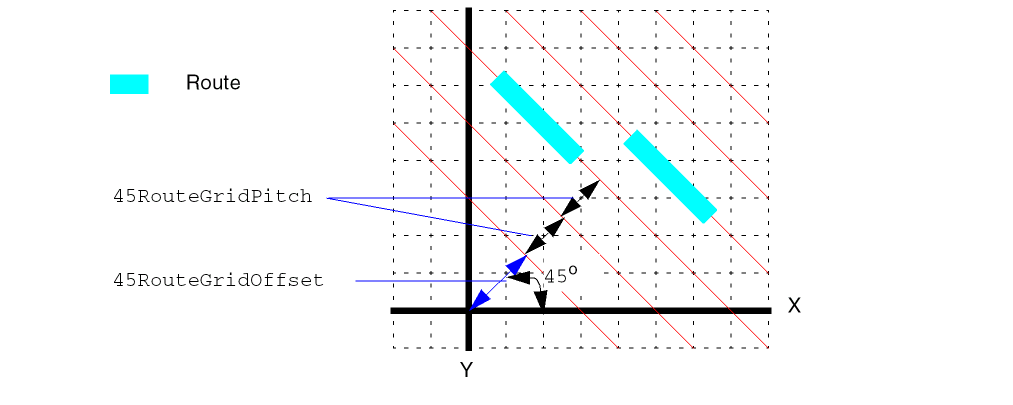

45RouteGridPitch

Sets the 45-degree spacing, edge-to-edge and in user units, between diagonal, 135-degree routing grids for the layer.

45RouteGridPitch Quick Reference

Value Type

45RouteGridPitch constraints have a Value that represents the pitch as a diagonal distance in user units.

Examples

This example sets the right diagonal routing grid pitch on Metal3 to 1.0 user units.

set_layer_constraint -constraint 45RouteGridPitch \
-layer Metal3 -Value 1.0

routingGrids(
             (rightDiagPitch "Metal3" 1.0)
            )

Related Topics

Routing Constraints

clusterDistance

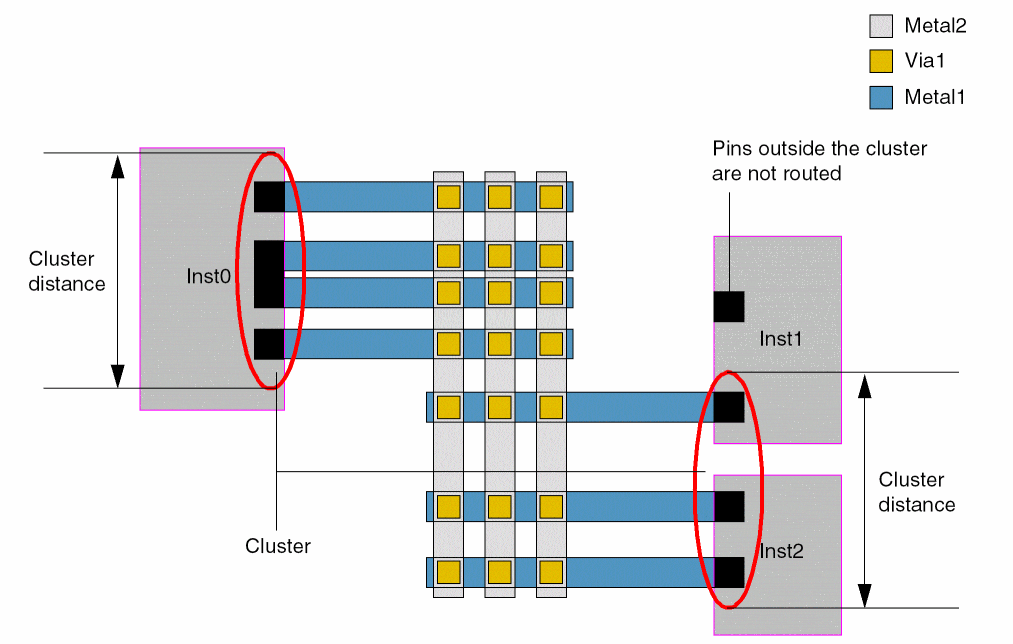

Specifies that pins less than or equal to this distance from each other on a multi-pin net are clustered together for strand routing.

clusterDistance Quick Reference

Value Type

Required Parameters

None

Optional Parameters

None

Examples

Specifies that pins spaced less than or equal to 0.06 apart on a multi-pin net are clustered together for strand routing.

set_constraint -constraint clusterDistance -Value 0.06

Related Topics

Routing Constraints

strand_route
