45RouteGridOffset

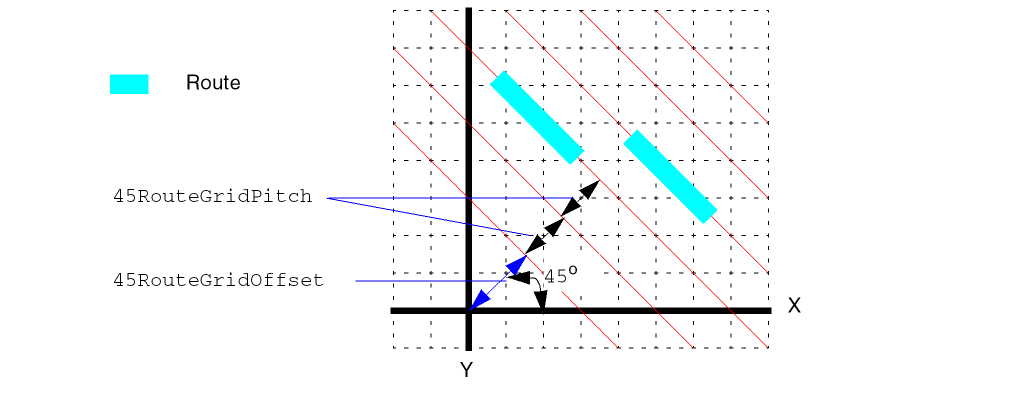

Specifies the offset from the origin for the start of the right diagonal routing grid for the layer. The right diagonal axis is found by rotating the horizontal axis 45 degrees counterclockwise.

45RouteGridOffset Quick Reference

Value Type

45RouteGridOffset constraints have a Value that represents the offset from the origin as a diagonal distance in user units.

Examples

This example set the right diagonal routing grid offset on Metal3 to 1.2 user units.

set_layer_constraint -constraint 45RouteGridOffset \
-layer Metal3 -Value 1.2

routingGrids(
             (rightDiagOffset "Metal3" 1.2)
            )
