minOuterVertexSpacing

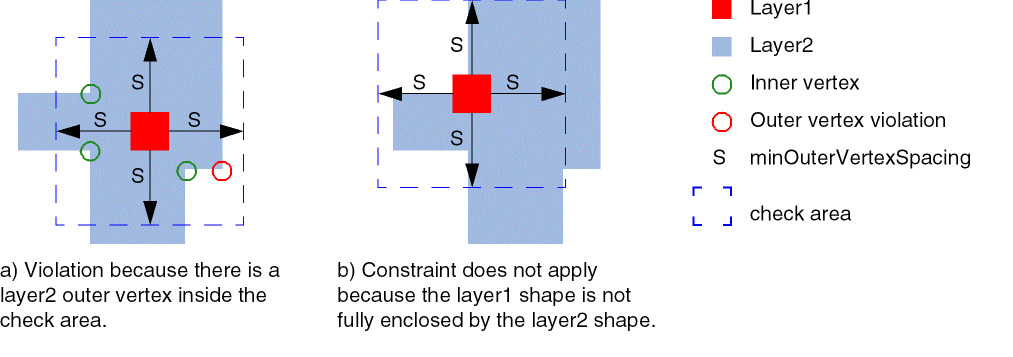

Specifies the minimum spacing between a shape on layer1 and all outer vertices of an enclosing layer2 shape, provided that the layer2 shape fully encloses the layer1 shape. This constraint is not symmetric.

minOuterVertexSpacing Quick Reference

Value Type

minOuterVertexSpacing constraints have a Value that represents the minimum spacing, in user units.

Examples

The following example sets the minimum spacing to 0.7 user units between the edges of Via1 shapes and any outer vertices of enclosing Metal1 shapes when the Via1 shapes are fully enclosed by Metal1.

set_layerpair_constraint -constraint minOuterVertexSpacing \
-layer1 Via1 -layer2 Metal1 -Value 0.7

orderedSpacings(
   (minOuterVertexSpacing "Via1" "Metal1" 0.7 )
) ;orderedSpacings
