One-to-Many Mapping of Instance or Pin

One-to-many mapping lets you map a single instance or pin in the schematic to multiple instances or pins in the layout. You can implement one-to-many mapping in Layout XL designs by:

• One-to-Many Mapping with Iterated Instances and Bus Pins
• Using the multiplication factor (mfactor Property)
• Using the series-connected factor (sfactor Property)
• Defining a One-to-Many Device Correspondence

One-to-Many Mapping with Iterated Instances and Bus Pins

You can use iterated instances and bus pins to enable one-to-many mapping between pins and devices in the schematic and multiple instances of the pins and devices in the layout.

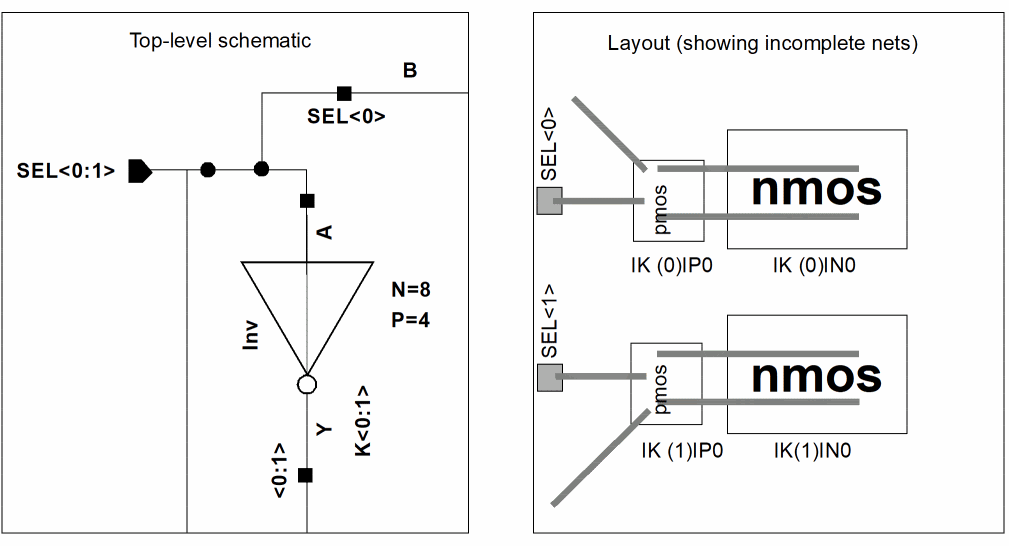

For example, the figure below shows

• Bus pin SEL<0:1> in the schematic mapped to bus pins SEL<0> and SEL<1> in the layout.
• Iterated instance K<0:1> mapped to instances IK(0)|P0, IK(0)|N0, IK(1)|P0, and IK(1)|N0 in the layout.



Related Topics

Adding Instances Using an Iterative Expression
