Checking a Parameter on an Instance or Occurrence

To check a specified parameter on a single instance or occurrence:

1. In the Configure Physical Hierarchy window, click the Instances tab.
2. Click the row containing the instance with the parameters you want to check.
   The row is highlighted and the options in the Attributes pane are enabled.
3. Do one of the following.
   • To specify the parameter to check for all the occurrences of the selected instance, ensure Occurrence mode is turned off in the toolbar.


   • To specify the parameter to check for an individual occurrence, ensure Occurrence mode is turned on.

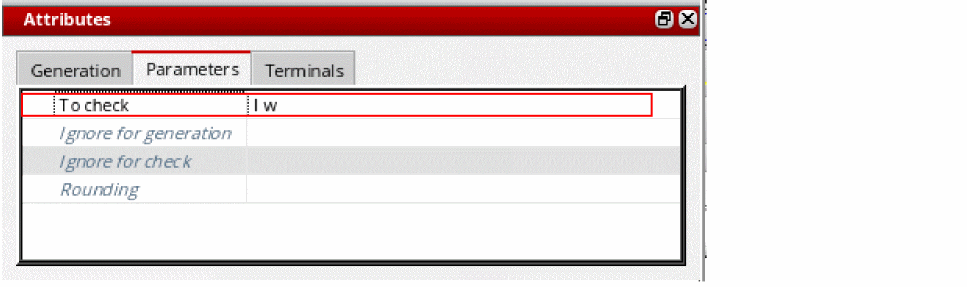

4. In the Parameters tab – To Check field, type the name of the parameter to be checked by Check Against Source and press Return.


   The settings are made for the selected instance or occurrence. If you specified an occurrence mapping, the symbol is also changed to indicate this.
5. From the menu bar, choose File – Save to save the physical configuration view.

The specified parameters are checked the next time you run the Check Against Source command.
