autoMirrorChains

layoutXL autoMirrorChains boolean { t | nil }

Description

Specifies that if a short violation is created during abutment of a chain of devices, then Layout XL first mirrors the chain in question in order to resolve the short. Only if this is unsuccessful does Layout XL attempts to resolve the short by permuting the pins.

The default is t.

GUI Equivalent

None

Examples

envGetVal("layoutXL" "autoMirrorChains")

envSetVal("layoutXL" "autoMirrorChains" 'boolean nil)

Additional Information

Chains can be mirrored only if

• The autoMirror environment variable is set to t
• They have no physical connectivity or routing defined
• The cells in the chain all belong to the same group (including synchronous clones) or no group
• The chain contains no multiply-abutted cells
• Any end-pin violations are valid left/right or top/bottom pairs

The following transformations are possible. Which of the three is employed is controlled internally by the abutment code. You are not required to choose a particular transformation. No transformation is performed which would break the chain.

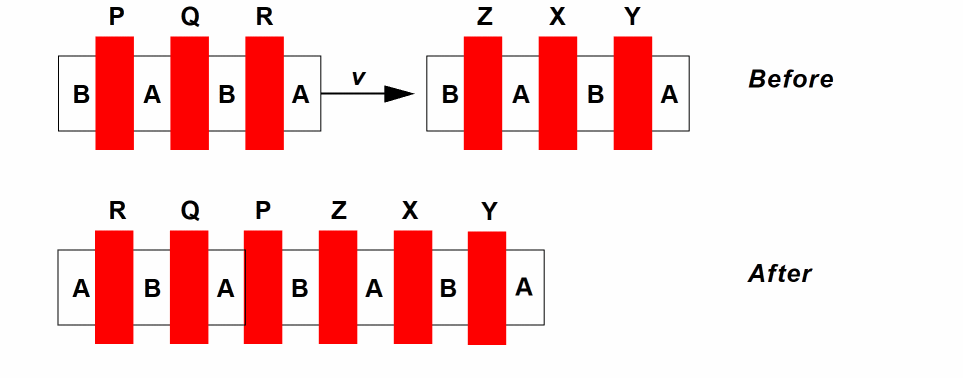

• Chain Mirror
  Mirrors the complete moving chain about its central Y axis to allow abutment.

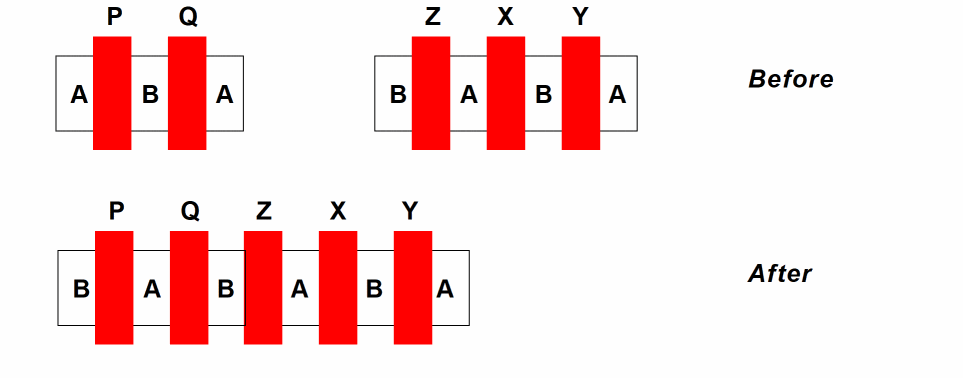

• Cascade Mirror
  Mirrors each individual device in the chain to allow abutment.

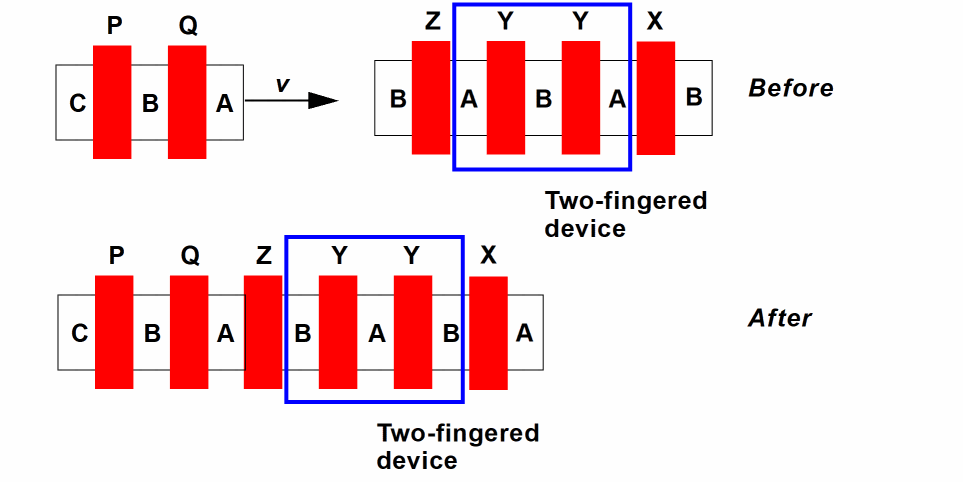

• Cascade Mirror Permute (2 nets)
  Neither Chain Mirror nor Cascade Mirror alone can deliver a transformation that allows abutment. Instead, a mixture of Cascade Mirror and Permute is employed in order to achieve the desired result.
