lxNetNamePrefix Property

lxNetNamePrefix string t_prefix

Description

Adds a unique prefix to internal nets generated in the layout using Layout XL conventions.

lxNetNamePrefix can be used only with devices which have the lxCombination property or sfactor parameter.

Symbol master Add Property form
Name	lxNetNamePrefix
Type	string
Value	t_prefix

Add CDF Parameter form
Add After Parameter	As First Parameter
paramType	string
name	lxNetNamePrefix
defValue	t_prefix

Example

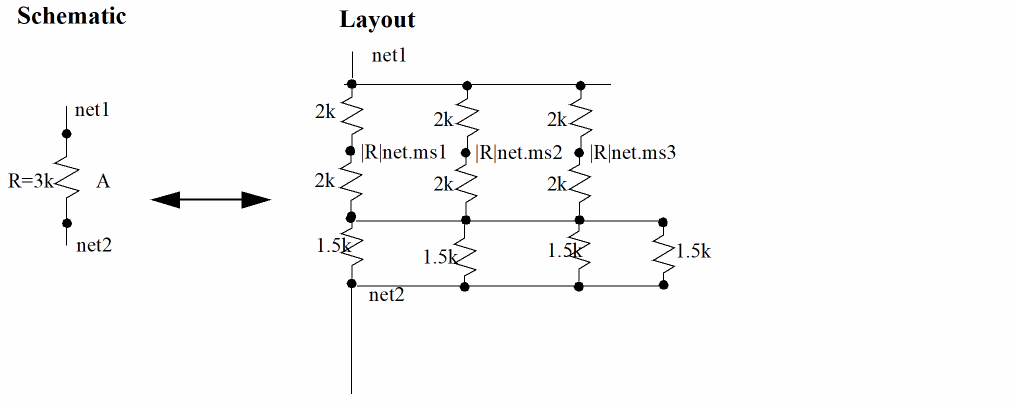

Using the lxCombination Property property to generate layout devices from the R device in the schematic below generates three internal nets with the following names.

• |R|net.ms1
• |R|net.ms2
• |R|net.ms3

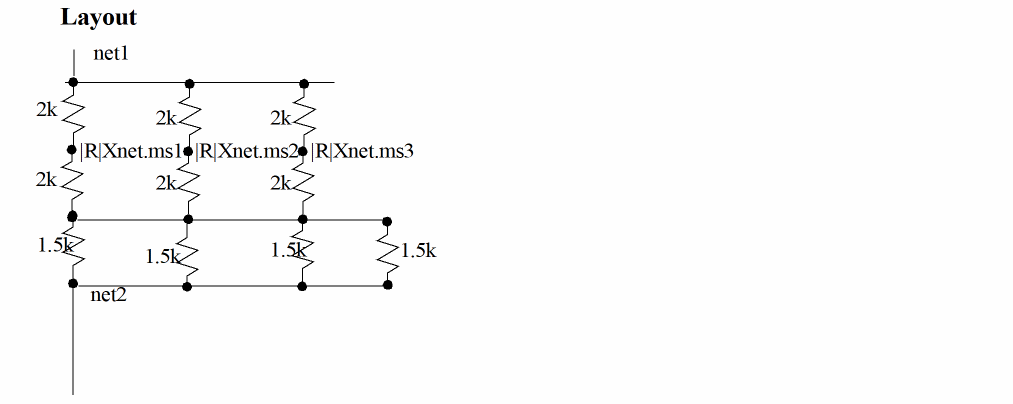

Using the lxNetNamePrefix property, you can add the prefix X to the internal net names. The names change to

• |R|Xnet.ms1
• |R|Xnet.ms2
• |R|Xnet.ms3
