weHalo

we weHalo cyclic {  "minEOL" | "maxEOL" | "bothEOL" }

Description

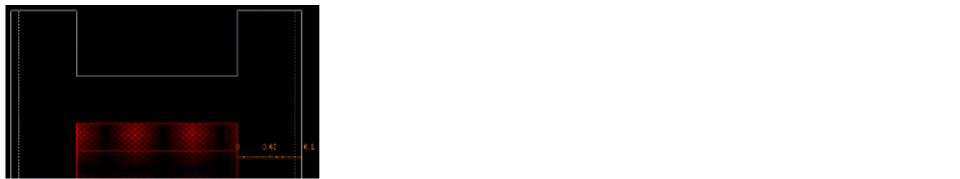

Includes the minEndOfLineSpacing constraint value to the halo. When minEndOfLineSpacing constraint is available for a via or a path segment, the halo becomes a polygon and is not a rounded halo.

• minEOL the halo shows the diffMask or the sameMask spacing for the minEndOfLineSpacing constraint. If diffMask spacing is less than the sameMask spacing, minEOL shows the diffMask spacing. If sameMask spacing is less than the diffMask spacing, minEOL shows the sameMask spacing.

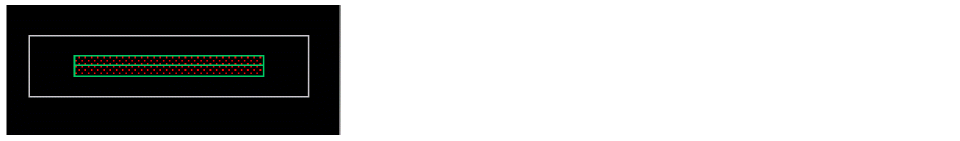

• maxEOL the halo shows the diffMask or the sameMask spacing for the minEndOfLineSpacing constraint. If diffMask spacing is greater than the sameMask spacing, maxEOL shows the diffMask spacing. If sameMask spacing is greater than the diffMask spacing, maxEOL shows the sameMask spacing.

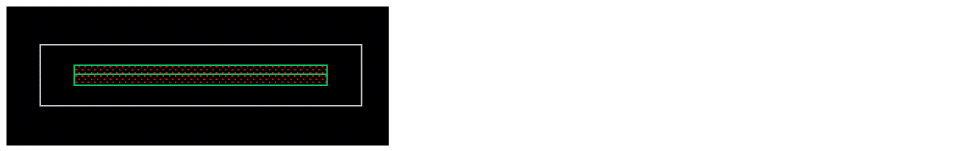

• bothEOL the halo shows the minimum (diffMask, sameMask) spacing and the maximum (diffMask, sameMask) spacing of the available minEndOfLineSpacing constraint.



The Default is minEOL.

GUI Equivalent

Command	Options – Editor
Form Field	Halo

Examples

envGetVal("we" "weHalo")

envSetVal("we" "weHalo" 'cyclic "maxEOL")

envSetVal("we" "weHalo" 'cyclic "bothEOL")
