Analog Solvers Supported by AMS Designer Simulator

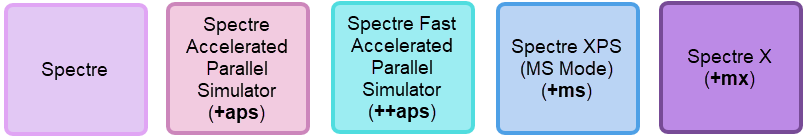

The figure below shows the analog solvers that are supported with the AMS Designer simulator:

The following table shows how to enable the analog solvers in the AMS Designer simulator:

Analog Solver	How to enable...
Spectre (default)	`xrun amscf.scs`
APS	`xrun -spectre_args "+aps" amscf.scs`
Fast APS	`xrun -spectre_args "++aps" amscf.scs`
Spectre X	`xrun -spectre_args "+preset=cx\|ax\|mx\|lx\|vx" amscf.scs`
XPS (MS mode) By default, APS is enabled for the analog partition.	`xrun -spectre_args "+preset=cx\|ax\|mx\|lx\|vx" amscf.scs`
XPS (MS mode) With fast APS enabled for the analog partition.	`xrun -spectre_args "+ms +preset=cx\|ax\|mx\|lx\|vx" amscf.scs`
