Working with Documents and Datasheets

ADE Assembler allows you to add documents that you want to refer to when working with the design. For example, you can add the design specifications document for your design, so that you can refer to it when working with the design. The added documents are displayed in the Documents directory in the Data View pane. You can double-click a document to open it in its associated program.

Another important feature in ADE Assembler is the ability to save the setup details and results in the form of datasheets. These datasheets can be saved in .html format and viewed in Internet browsers.

See the following topics for more information:

Adding Documents

You can add documents in the HTML, CSV, PDF and text documents in ADE Assembler.

To add a document, do the following:

  1. Choose Create – Document.
    Alternatively, you can click where it says Click to add document in the Document directory on the Data View assistant pane.
    The Choose Documents to be Added form appears.
  2. Select the document you want to add and click Open.
    The document is displayed in the Documents directory in the Data View pane.
    The documents you add are copied to your maestro view. If you update a document at its original location, ensure that the latest version of the document is added in ADE Assembler.

Opening Documents

To open a document, do the following:

Removing Documents

There is no undo for this action.

To remove a document, do the following:

When a document is removed, it is only deleted from your maestro view. It is not deleted from the location from which you added the document.

Saving Documents

You can save a document displayed in the Documents tree on the Data View pane under a different name or at a different location.

To save a document under a different name or at a different location, do the following:

  1. In the Documents tree on the Data View pane, right-click the document you want to save under a different name or at a different location and choose Save As.
    The Save Document As form appears.
  2. Select the directory in which you want to save the file.
  3. In the File name field, enter the name under which you want to save the document.
  4. Click Save.

Working with Datasheets

Creating a Datasheet for a History

To create a datasheet for a history checkpoint, do the following:

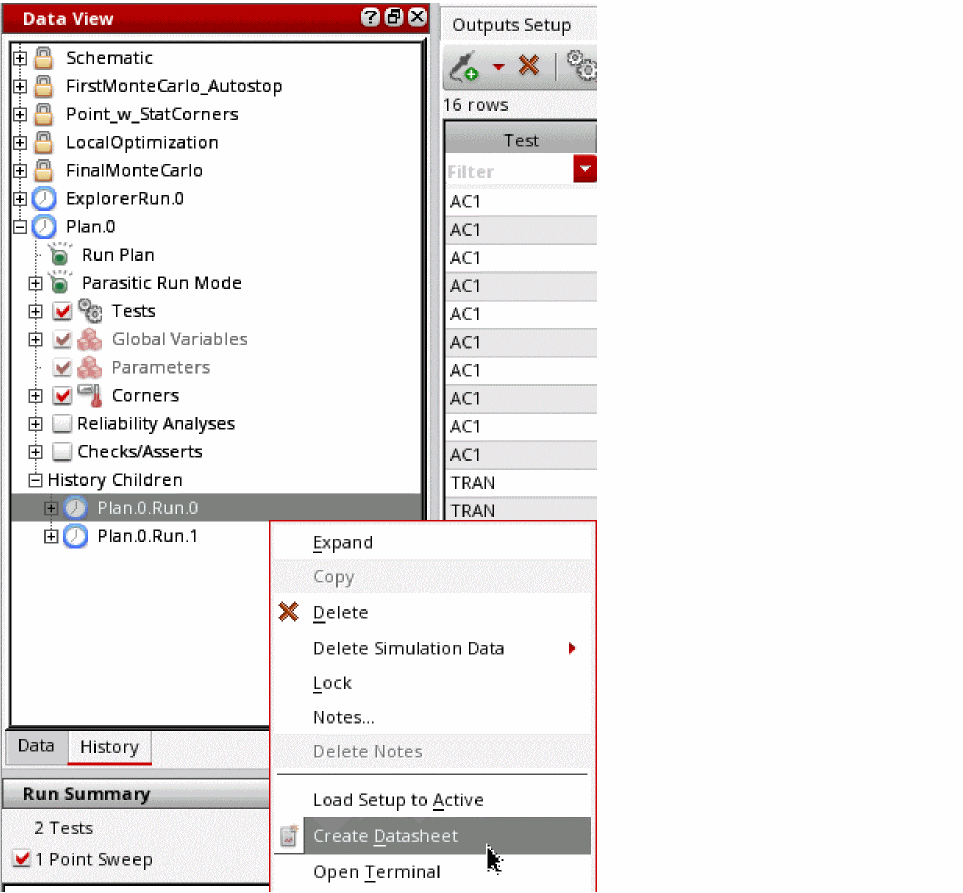

  1. In the History tab of the Data View pane, right-click the history for which you want to create a datasheet and choose Create Datasheet.

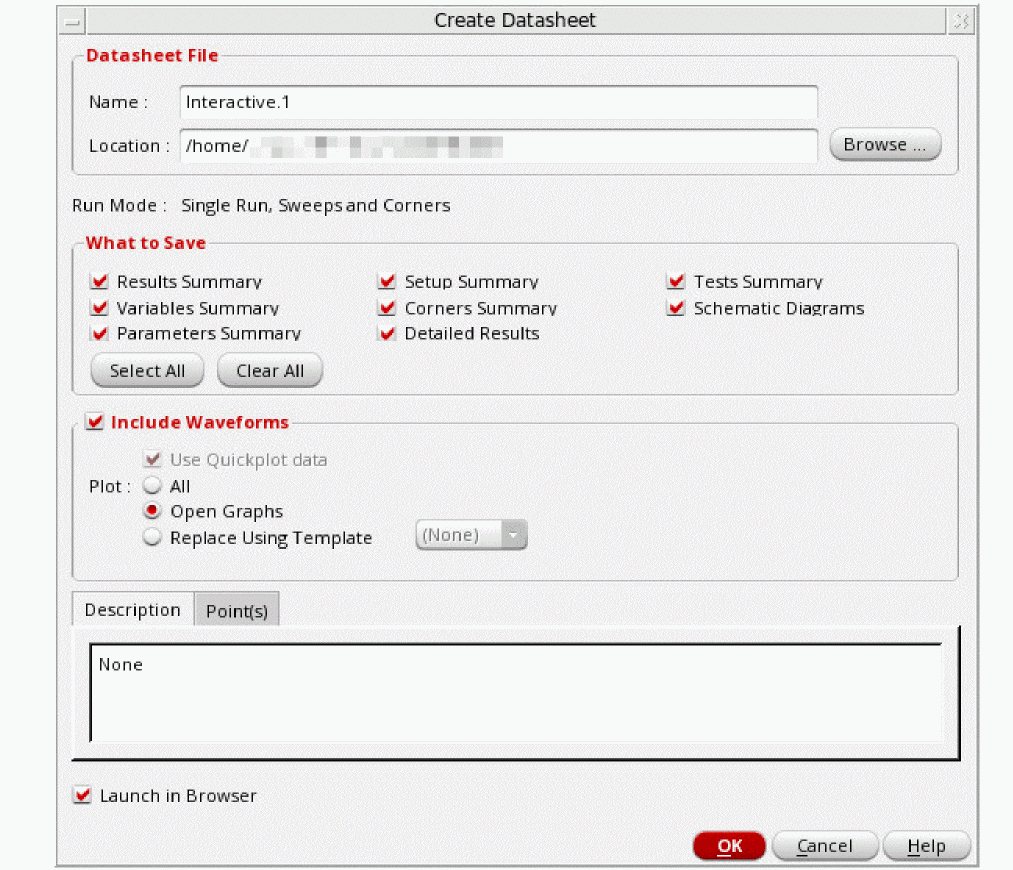

    The Create Datasheet form appears.
    Note the following:
    • You can also choose Create – Datasheet or click on the Results toolbar to open the Create Datasheet form.
    • You cannot create a datasheet for a check point when simulations are in progress for that checkpoint.
    • For group histories, you can create a datasheet at the group level or for a specific child history.

    To create a datasheet at the group history level, right-click the group history and choose Create Datasheet. Datasheets for all child histories in that group are saved in separate html files. In addition, a datasheet containing links to all the datasheets created for child histories is created for the group level.
    To create a datasheet at the level of a child history, right-click the name of the child history and choose Create Datasheet.
  2. In the Name field, type a name for the datasheet.
    By default, the name of the datasheet is the name of the checkpoint for which you are creating the datasheet. For example, if you are creating a datasheet for a checkpoint named Interactive.17, the default name of the datasheet will be Interactive.17.
  3. In the Location field, type the directory path where you want the program to write your datasheet; or do the following:
    1. Click Browse.
    2. On the form that appears, navigate to and select the directory where you want the program to write your datasheet.
    3. Click Open.

    Note the following:
    • By default, the datasheet is created in the documents directory of the maestro view.
    • If you do not specify the absolute path to a directory in the Location field, the directory will be created in the current working directory. For example, if you run the virtuoso command from /net/designs/myDesign and type myDatasheets in the Location field, datasheets will be created in the /net/designs/myDesign/myDatasheets directory.
  4. (Optional) Select or clear the following check boxes:
    Check Box Description

    Results Summary

    When selected, this option writes the results summary information to the datasheet.

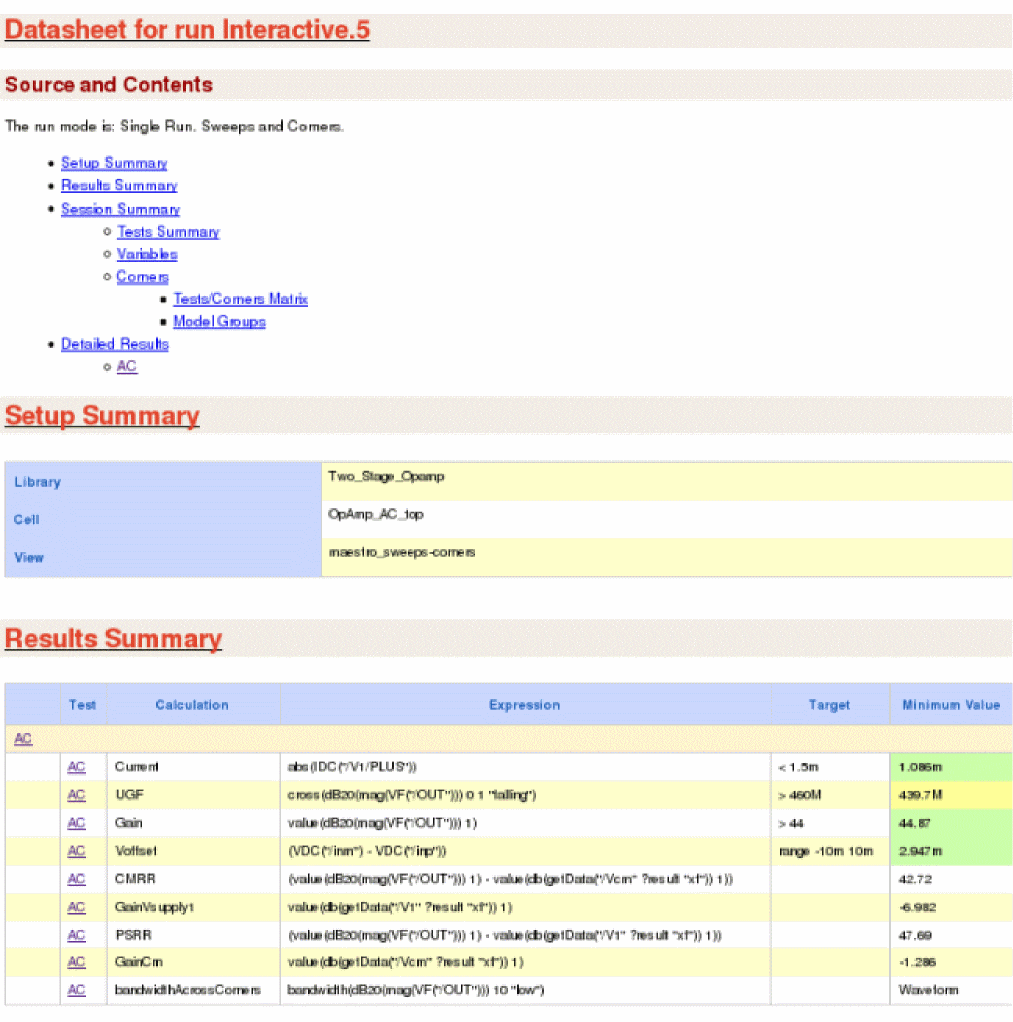

    The results summary information is displayed in the following sections in the datasheet:

    • Results Summary section in the main datasheet page
    • Results Summary section in the datasheet page for each test

    The text Various in the Target column in the Results Summary section indicates that you have overridden or disabled one or more corner specifications for a measurement. For more information, see Disabling and Enabling Corner Specifications.

    For information about the colors used in the Minimum Value and Maximum Value columns in the Results Summary section, see Colors Used to Display Status of Measured Values and Specifications in Datasheets.

    Variables Summary

    When selected, this option writes the variables summary information to the datasheet, including names and values of variables.

    The variables summary information is displayed in the Variables section in the main datasheet page.

    Corners Summary

    When selected, this option writes the corners summary information to the datasheet, including the list of corners enabled or disabled for each test, values of parameters and design variables at corners, and the model groups added for each corner.

    The corners summary information is displayed in the Corners section in the main datasheet page.

    Schematic Diagrams

    When selected, this option saves the schematic diagrams in the datasheet. These diagrams are not displayed on the main datasheet page. Instead, a link to the diagram for each test is added to the Tests Summary section. When you click the hyperlink for the saved schematic diagram, a .html page saved by Virtuoso Schematic Editor is displayed. Diagrams of the schematic of the design and the devices instantiated in it are displayed on this page. The top of the page shows a Table of Contents (TOC) and a graphical TOC. Click the links in the TOC to view a particular schematic diagram.

    Tests Summary

    When selected, this option writes the test summary information to the datasheet, including the test name, test design, simulator, and state information.

    The tests’ summary information is displayed in the Tests Summary section in the main datasheet page.

    Parameters Summary

    When selected, this option writes the parameters’ summary information to the datasheet, including the names and values of parameters.

    Parameters’ summary information is displayed in the Parameters section in the main datasheet page.

    Detailed Results

    When selected, this option writes the detailed results information for each test to the datasheet, including the parameter values for each run (sweeps and corners) and the output values for each measurement expression.

    The detailed results information for each test is displayed in the Detailed Results section in the datasheet page for that test.

    For information about the colors used in the Value and Target columns in the Outputs sub-section of the Detailed Results section, see Colors Used to Display Status of Measured Values and Specifications in Datasheets.

    The Target column is displayed for a measurement in the Outputs sub-section of the Detailed Results section only if you have overridden or disabled a corner specification for the measurement. For more information about overriding or disabling corner specifications, see Working with Specifications.

    Launch in browser

    When selected, this option launches the datasheet in a web browser.

    The datasheet is displayed in the browser specified in the Web Browser field of the User Preferences form. The default value of the Web Browser field is firefox.

    You can also specify the default browser to be used by setting the following environment variable in the your .cdsenv file before starting the Virtuoso Design Environment:

    ui webBrowser string "browserName"

    where browserName is the name of the browser executable. The default value for this environment variable is firefox.

    Ensure that your web browser supports XML and XSLT.

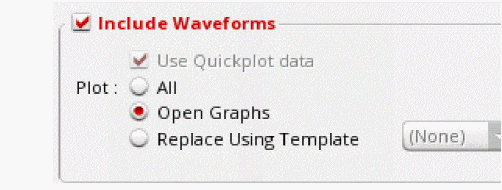

  5. Select the Include Waveforms check box to display waveform images in the datasheet files. This check box is selected by default.
    • Select the Use Quickplot data check box if you want to use quick plot data to print waveforms in the datasheet. This option helps quickly print waveforms in the datasheet against regular plot. When this check box is selected, quick plot is used for transient data and regular plot is used for non-transient data. The default setting of this check box is determined by the value of the useQPDataToCreateDatasheet environment variable.
    • In the Plot field,
      • Select All if you want to plot all the graphs in the Virtuoso Visualization and Analysis XL graph window and include them in the datasheet.
        The Use Quickplot data check box field is available only when you select the All option.
      • Select Open Graphs to include graphs that are currently open in the graph window. When this option is selected, the Use Quickplot data check box field is not available.
      • Select Replace Using Template if you want to plot the graphs from a plotting template, which you saved earlier, and include them in the datasheet. You can then select the plotting template from the drop-down list displayed next to it. When this option is selected, the Use Quickplot data check box field is not available.

      Note the following:
      • If you select the Open Graphs option, but no graph is plotted in the graph window, then the plot all command is run to plot all the graphs. These graphs are then printed in the datasheet.
      • If you select the All option, but some waveforms are already plotted in the graph window, then new waveforms are plotted based on the mode you have selected in the Plotting Mode drop-down list on the Results tab. The available plotting modes are: append, replace, new window, and new subwindow.

    The waveform images are saved as Portable Network Graphic (.png) image files in the datasheet directory. For more information about the location of the datasheet directory, see Location of Datasheet Files.
    See also: Displaying Customized Waveform Images in the Datasheet
  6. By default, the waveform images in the results directory for a history item are displayed in the datasheet. If waveform images are not available for a history item, they are automatically created and displayed in the datasheet.
  7. (Optional) On the Points tab, do one of the following:
    Select To

    Design Point ID

    Include results information only for a specific design point in the datasheet.

    Type the ID of the design point in the Design Point ID field.

    You can find the ID for a design point from the Point column in the Results tab of the Outputs pane.

    All Design Points

    Include results information for all the design points in the datasheet.

  8. (Optional) On the Description tab, enter a description for the datasheet.
  9. Click OK.

The program writes the datasheet information you requested. If you selected the Launch in browser check box, ADE Assembler launches the datasheet in the default HTML browser, as shown below.

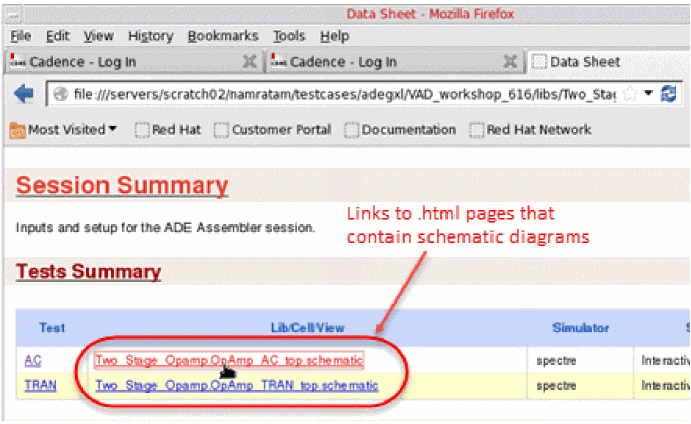

If the links to schematics are added in the Tests Summary, the schematic diagrams are saved as part of the datasheet, as shown below.

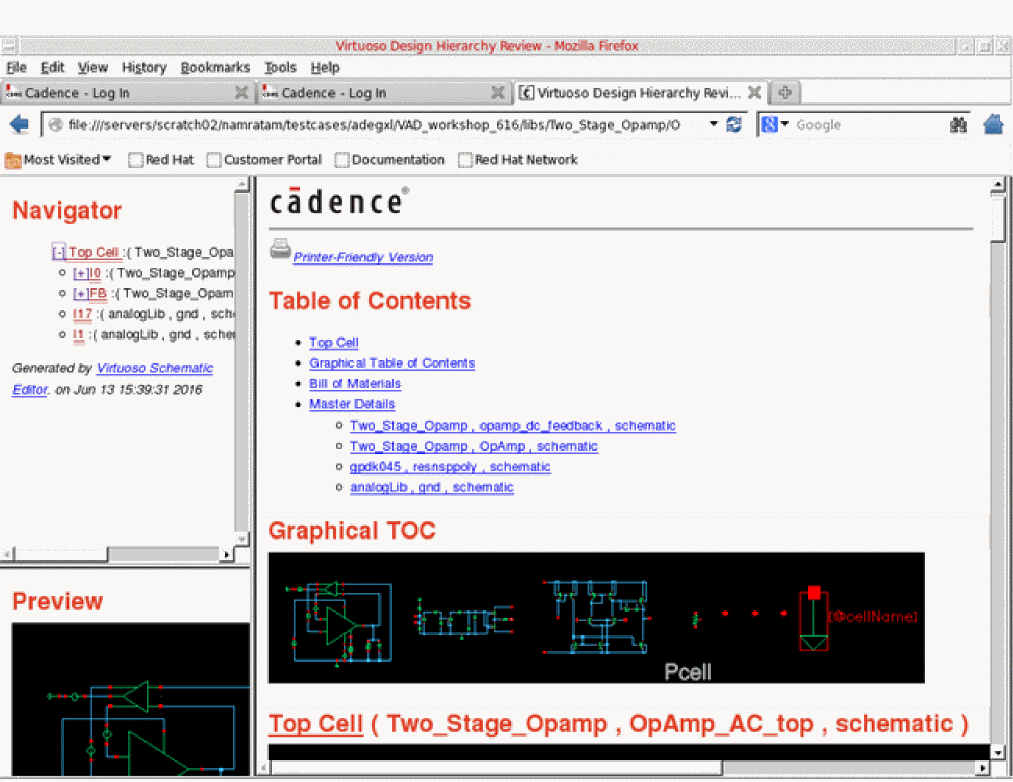

Use the navigator to traverse through the design hierarchy, or the Table of Contents to go to a particular schematic master.

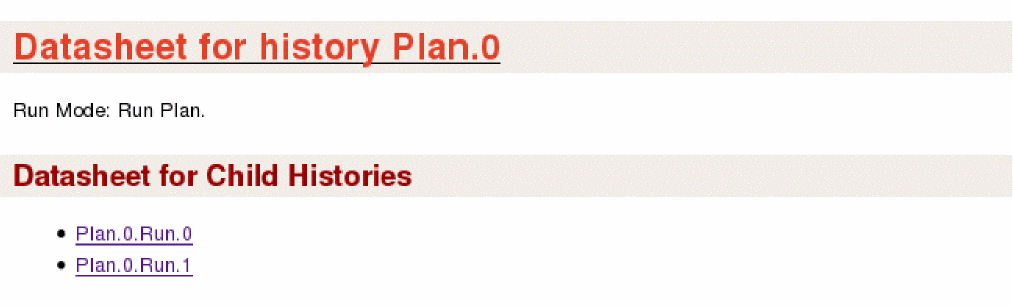

The datasheet saved for a group history, for example, a history saved for a run plan, contains links to all child histories in that group run.

Location of Datasheet Files

The datasheet files are saved in a directory that has the same name as the name of the datasheet. For example, if you specified the name of the datasheet as myDatasheet in the Create Datasheet form, the datasheet files are saved in the myDatasheet directory in the location specified in the Create Datasheet form.

The datasheet directory contains the following files:

Table 23-1 Datasheet Files

File Name Description

<datasheet_name>.xml

The main datasheet file.

For example, if you specified the name of the datasheet as myDatasheet in the Name field, the main datasheet file will have the name myDatasheet.xml.

<datasheet_name>_<test_name>.xml

Datasheet file for a test that is created if the Detailed Results or Waveforms check boxes are selected.

For example, if you specified the name of the datasheet as myDatasheet in the Name field, and you have two tests named AC1 and TRAN1, the following two datasheet files that contain the detailed results information for each test are created if the Detailed Results or Waveforms check boxes are selected:

  • myDatasheet_AC1.xml
  • myDatasheet_TRAN1.xml


Portable Network Graphic (.png) files for the waveform images displayed in datasheets.

Colors Used to Display Status of Measured Values and Specifications in Datasheets

The following colors are used as the background color for cells in the Minimum Value and Maximum Value columns in the Results Summary section to display the status of measured values:

Cell Background Color Description

Green

Indicates a pass status—all the measured values are within the limits defined by the specification.

Yellow

Indicates a near status—one or more measured values are no more than 10% outside the target value of the specification.

Red

Indicates a fail status—one or more measured values are greater than 10% outside the target value of the specification.

The following colors are used as the background color for cells in the Value and Target columns in the Outputs sub-section in the Detailed Results section to display the status of measured values and corner specifications:

Cell Background Color Description

Green

(in Value column)

Indicates a pass status for the measured value—the measured value is within the limits defined by the specification.

Yellow

(in Value column)

Indicates a near status for the measured value—the measured value is no more than 10% outside the target value of the specification.

Red

(in Value column)

Indicates a fail status for the measured value—the measured value is greater than 10% outside the target value of the specification.

Green

(in Target column)

Indicates a pass status for the corner specification—the measured value is within the limits defined by the specification.

Yellow

(in Target column)

Indicates a near status for the corner specification—the measured value is no more than 10% outside the target value of the specification.

Red

(in Target column)

Indicates a fail status for the corner specification—the measured value is greater than 10% outside the target value of the specification.

Gray

(in Target column)

Indicates that a corner specification is disabled.

Displaying Customized Waveform Images in the Datasheet

If the setup in a history item is the same as the active setup, you can display customized waveform images for the history item by doing the following:

  1. On the Results tab of the Outputs pane, click the button.
Waveforms are displayed in waveform windows.
  1. Customize the waveforms as required in the waveform window.
  2. Create a datasheet without closing the waveform windows in which you customized the waveforms.

The customized waveforms are added to the datasheet.

You can modify the resolution of the waveform images in the datasheet by overriding the axlCustomSaveGraphImageArguments SKILL function.

Opening a Datasheet

To open a datasheet, do one of the following:

Customizing the Datasheet Format and Structure

The following stylesheet files are used to control the format and structure of datasheets. These files are located at <your_install_dir>/share/cdssetup/adexl.

File Name Description

datasheetMainDoc.xsl

XSLT stylesheet that controls the structure of the main datasheet file.

datasheetTestDoc.xsl

XSLT stylesheet that controls the structure of the datasheet files that contain the detailed results information for each test.

datasheet.css

CSS stylesheet that controls the formatting of the main datasheet file and the datasheet files that contain the results information for each test.

To customize the structure of the main datasheet page, do the following:

  1. Copy the datasheetMainDoc.xsl file in the <your_install_dir>/share/cdssetup/adexl directory to a different location.
    Rename the file, if required.
  2. Open the file in a text editor and make the required changes.
  3. Use the adexl.datasheet mainDocXSLFile environment variable to specify the location of the file. For more information about this environment variable, see mainDocXSLFile.

To customize the structure of the datasheet pages for tests, do the following:

  1. Copy the datasheetTestDoc.xsl file in the <your_install_dir>/share/cdssetup/adexl directory to a different location.
    Rename the file, if required.
  2. Open the file in a text editor and make the required changes.
  3. Use the adexl.datasheet testDocXSLFile environment variable to specify the location of the file. For more information about this environment variable, see testDocXSLFile.

To customize the formatting of the datasheet files, do the following:

  1. Copy the datasheet.css file in the <your_install_dir>/share/cdssetup/adexl directory to a different location.
    Rename the file, if required.
  2. Open the file in a text editor and make the required changes.
  3. Use the adexl.datasheet CSSFile environment variable to specify the location of the file. For more information about this environment variable, see CSSFile.
