Performing a Global Pin Check

You can perform hierarchical pin check on all the instances in a design. To do this, you need to perform one of the following steps:

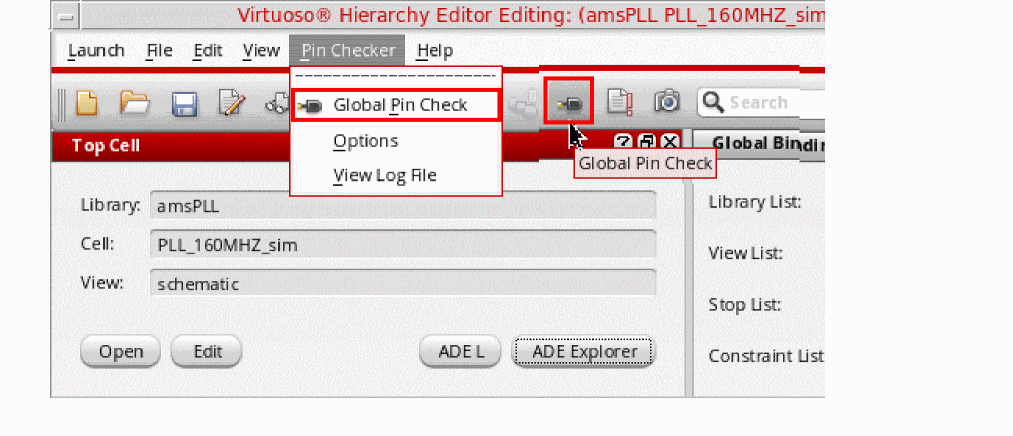

• Select Global Pin Check from the Pin Checker menu.
• Click the Global Pin Check button on the HED toolbar.



After the pin checking operation on a design is successfully completed without any error or warning, a successful pin check message is displayed in CIW.

If there is any error or warning in the design, the unsuccessful pin check message is displayed in CIW and the pin check log file is displayed.

Related Topics

Log Files Creation
