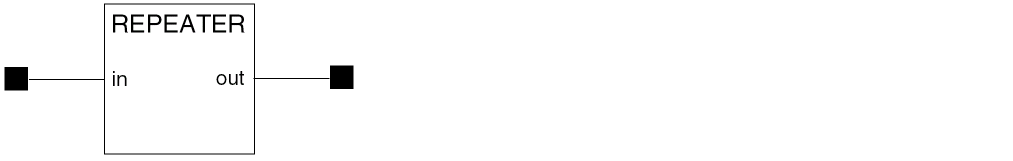

Repeat Waveform Symbol
The following table summarizes the details of this symbol.
|
Description
|
-
Output repeats the input signal
with a specified periodicity. -
This function takes a finite-duration aperiodic input signal and creates a periodic signal, with periodicity equal to period. Period must be greater than the input signal duration to avoid distortion. This function uses the SPICE transmission line element internally.
|
|
Library name
|
repeatWaveform
|
|
Transfer function
|
|
|
Properties (Defaults)
|
period (1E-3)
|
|
Input impedance
|
Infinite
|
|
Output impedance
|
Zero
|
|
Frequency response
|
Flat
|
