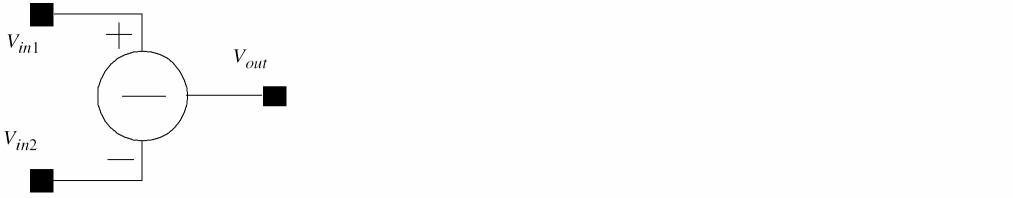

Subtractor Symbol

The following table summarizes the details of this symbol.

Description

Output voltage is the difference between the two inputs.
Library name

subtractor
Transfer function

Properties (Defaults)

None
Input impedance

Infinite
Output impedance

Zero
Frequency response

Flat
