B

---

Fluid Guard Ring Environment Variables

---

This appendix covers the FGR-specific Layout environment variable names, descriptions, types, and values. For information about the other Virtuoso^® Layout Suite L layout editor and graphics editor environment variables, refer to the Environment Variables appendix in the Virtuoso Layout Suite L User Guide.

The graphic environment variables control the characteristics of the window display and the layout environment variables control how various layout editor commands work. Many graphic environment variables have duplicate layout environment variables. In these cases, the layout variable supersedes the graphic variable unless the graphic variable is stored in the cellview. You can set both graphic and layout environment variables.

Setting Environment Variables

You can set the environment variables in the following three ways:

• Within the .cdsenv File
• Within the .cdsinit File
• In the CIW

.cdsenv File

Add environment variables to the .cdsenv file when the settings should be applied while launching Layout L.

Use the following syntax:

layout environmentVariableName dataType value

For example:

layout fgrWrapPlaceAtMinimumDistance boolean t

.cdsinit File

Like the .cdsenv file, the environment variable settings saved in the .cdsinit file get applied when you launch Layout L.

Use the envSetVal() command, which has the following syntax, to add environment variables to the .cdsinit file:

envSetVal("layout" "environmentVariableName" 'dataType value)

For example:

envSetVal("layout" "fgrWrapPlaceAtMinimumDistance" 'boolean t)

CIW

Use the envSetVal() command in the CIW to set an environment variable for the duration of the current session. The syntax is the same as described above for the .cdsinit file.

If you use the CIW to set an environment variable that controls a widget on the currently open form, the implemented settings get reflected only after you close the form and then re-open it.

Displaying the Current Value of an Environment Variable

To determine the current value of any Layout L environment variable, use the following syntax in the CIW.

envGetVal("layout" "environmentVariableName")

List of Environment Variables

The following environment variables are available for use:

• fgrPostEditPitchCorrection
• fgrWrapPlaceAtMinimumDistance
• fluidGuardRingInstallPath
• grEnclosedBy
• grMode
• keepGuardRingEndsConnected
• vfoShowOnlyFluidShapeForDrag

fgrPostEditPitchCorrection

Syntax

In the .cdsenv file:

layout fgrPostEditPitchCorrection boolean { t | nil }

In the .cdsinit file or the CIW:

envSetVal("layout" "fgrPostEditPitchCorrection " 'boolean {t | nil})

Description

Controls whether the VFO infrastructure will post-process the merged fluid guard ring instance to ensure that fluid shape data follows the pitch parameters.

Default Value: nil

fgrWrapPlaceAtMinimumDistance

Syntax

In the .cdsenv file:

layout fgrWrapPlaceAtMinimumDistance boolean { t | nil }

In the .cdsinit file or the CIW:

envSetVal("layout" "fgrWrapPlaceAtMinimumDistance" 'boolean {t | nil})

Description

Controls the selection of the Place at Minimum Distance check box on the Wrap tab of the Create Guard Ring form.

When fgrWrapPlaceAtMinimumDistance is set to t, the Place At Minimum Distance check box is selected and the Enclose by field is disabled. However, setting the environment variable to nil, deselects the check box and makes the Enclose by field editable for specifying the guard ring distance from the object.

Default Value: t

Examples

• Deselect the Place At Minimum Distance check box and make the Enclose by field editable:


  envSetVal("layout" "fgrWrapPlaceAtMinimumDistance" boolean nil)

• Return the current value of the fgrWrapPlaceAtMinimumDistance environment variable:


  envGetVal("layout" "fgrWrapPlaceAtMinimumDistance")

  => nil

fluidGuardRingInstallPath

Syntax

In the .cdsenv file:

layout fluidGuardRingInstallPath string alternatePath

Description

Enables you to specify the path from where the FGR-related SKILL files (vfo*.ils) are to be loaded. By default, the value string is empty, in which case these SKILL files are loaded from the following default release installation directory:

<install_dir>/tools/dfII/etc/vfo

Default Value: "" (null string)

Example

Load the FGR-related SKILL files from a path other than the default release installation directory:

layout fluidGuardRingInstallPath string /grid/cic/tool.lnx86/dfII/etc/vfo

grEnclosedBy

Syntax

In the .cdsenv file:

layout grEnclosedBy <any_positive_floating_point_number>

In the .cdsinit file or the CIW:

envSetVal("layout" "grEnclosedBy" <any_positive_floating_point_number>)

Description

Initializes the Enclose by field on the Create Guard Ring form.

You can replace the default value with another floating point number by updating this environment variable. Otherwise, change the value for the Enclose by field by typing in the field on the Create Guard Ring form.

Default Value: 0.0

grMode

Syntax

In the .cdsenv file:

layout grMode string { Rectangular | Rectilinear }

In the .cdsinit file or the CIW:

envSetVal("layout" "grMode" 'string { "Rectangular" | "Rectilinear" })

Description

Sets the default FGR creation type in Wrap mode.

By default, this environment variable is set to Rectilinear. Therefore, when you launch the Create Guard Ring form, on the Wrap tab, the Rectilinear radio button is selected.

However, when you reset this environment variable to Rectangular, the Rectangular radio button appears as selected on the Wrap tab.

This environment variable is useful when you mostly create Rectangular type of FGR in Wrap mode and want that be selected as the default creation type each time you access the Create Guard Ring form.

Default Value: Rectilinear

keepGuardRingEndsConnected

Syntax

In the .cdsenv file:

layout keepGuardRingEndsConnected boolean { t | nil }

In the .cdsinit file or the CIW:

envSetVal("layout" "keepGuardRingEndsConnected" 'boolean {t | nil})

Description

Controls whether a guard ring with touching ends will stay connected (t) or will result in opening up the guard ring (nil) during the Stretch and Quick Align command operations.

Default Value: nil

vfoShowOnlyFluidShapeForDrag

Syntax

In the .cdsenv file:

layout vfoShowOnlyFluidShapeForDrag boolean { t | nil }

In the .cdsinit file or the CIW:

envSetVal("layout" "vfoShowOnlyFluidShapeForDrag" 'boolean {t | nil})

Description

Controls the display of the fluid shape and other geometries like metal layer, diffusion layer, and contacts while drawing an FGR on the layout canvas.

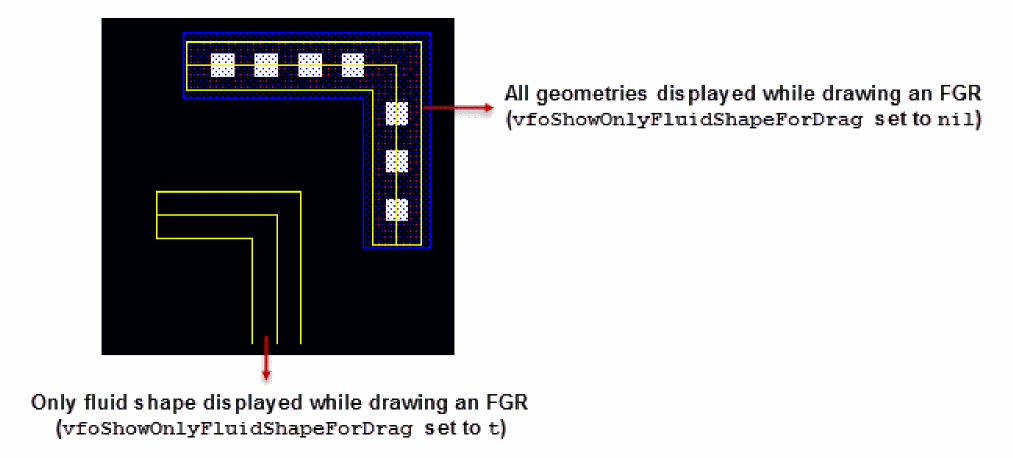

When vfoShowOnlyFluidShapeForDrag is set to nil, all geometries including the fluid shape are visible as you draw the FGR on the layout canvas. However, setting the environment variable to t displays only the fluid shape. The figure below shows the difference in the two approaches.

Default Value: nil
