5

---

CDBA Design Management Functions

---

The following is required to manage a design:

• Design Data Management System
• Design Library
• Library List
• Library List Generator Functions
• Data Organization
• Object Information Retrieval Functions
• File Location for Reading and Writing
• Synchronization and Access Protection
• File Checkout and Checkin

Design Data Management System

The design data management system has the following objectives:

• Access a design file through logical names
• Provide version control over design data
• Define and reassign a new working context
• Provide hooks for application programs
• Keep track of design evolutions

Some of the functions that appear to be provided by CDBA system calls are provided by a data management system called the Design Data Procedural Interface (DDPI). The DDPI handles the low-level manipulation of the libraries, cells, and views. The DDPI also presents a common programming interface for calling the cdmcheckin and cdmcheckout programs, which can handle multiple design management systems.

The procedural interface (PI) is made up of sets of functions. Many of these functions need to handle objects differently, depending on the object's type and location. To facilitate these differing needs, whenever a PI function locates an object, it returns a ddId, which other PI functions can use to identify the type and location of the corresponding object.

This chapter describes the library procedures available under the DDPI. Higher-level tools can be built on top of these procedures.

Design Library

A design library is a collection of cells, cellviews, and data files under a particular cell and cellview, and of different versions of the data files. It provides a logical view of the design data for the design data management system. The data file locations are transparent to the user. For information about

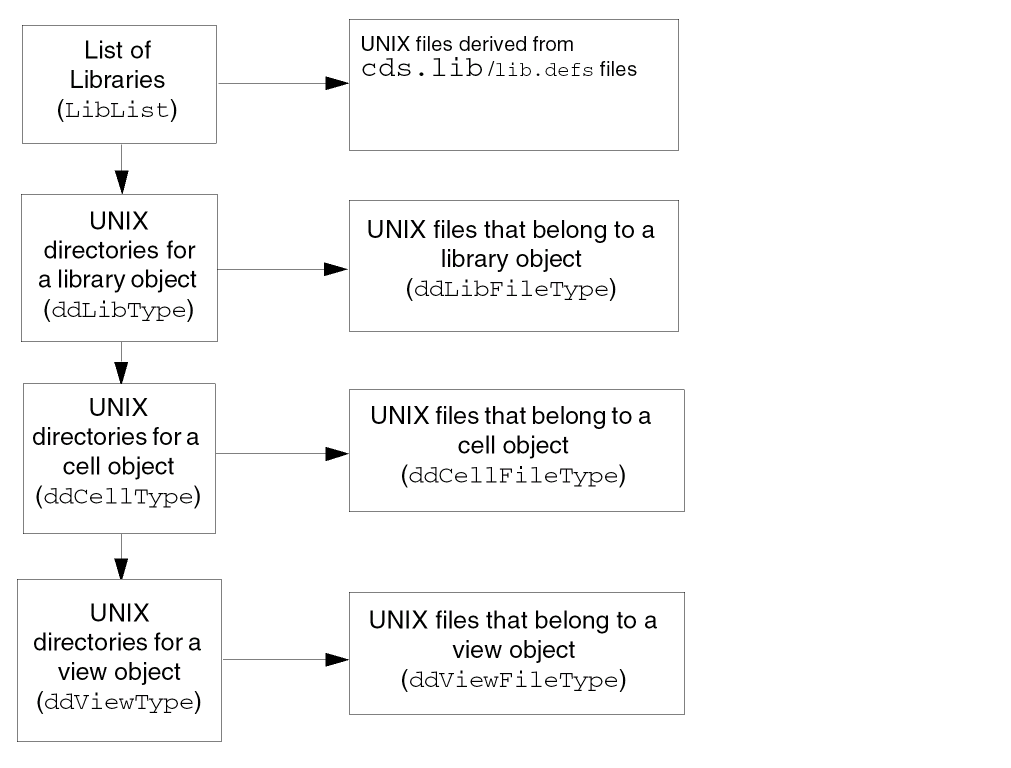

A design library is organized into four levels. The following illustration shows these levels, and the types of directories and files they contain.

Startup File Locator

The following function returns the path to the startup file (such as the cds.lib file) you specify. The contextId should be NULL for ITKDB users.

String

ddGetStartup(
String fileName, ddId contextId
);

Specify the search path for startup files in the setup.loc file, in either

$CDS_SITE/cdssetup/setup.loc

or

your_install_dir/share/cdssetup/setup.loc

Because the path returned is a pointer to a static character buffer, copy this path before you make additional calls to ddGetStartup.

Library List

Tools locate the files they need to access by looking in several standard places. Most tools have data search-path functions that enable users to look at a list of places. A library list indicates the search paths for files.

Functions to Generate the Library List

The DDPI supplies the functions ddStartGenLibList, ddGenLibList, and ddStopGen to generate and examine the library list.

Function to Identify a 5x Library

The DDPI supplies the function ddLibIs5X to determine whether the library was created as a 5X library.

cds.lib and lib.defs Files

For information about lib.defs keyword and syntax, DDPI and library manager support for lib.defs and cds.lib files, see Cadence Library Definition File, in Chapter 5 of the Cadence Application Infrastructure User Guide.

Currently, ITKDB does not allow its users to dynamically edit the cds.lib or lib.defs when running their ITKDB-based tools. Also, it does not allow its users to use the chdir function in their code.

Library List Generator Functions

You can use a library list generator to obtain the list of libraries in virtual memory (VM). The following generator functions work together to find the libraries in a library list.

ddStartGenLibListLib

ddLibListGenState *

ddStartGenLibListLib(
);

Initializes a library list (LibList) library generator.

ddGenLibListLib

ddId

ddGenLibListLib(
ddLibListGenState *pState
);

Finds the next library in the library list given a library list generator. Returns NULL when it finishes.

ddStopGen

void

ddStopGen(
voidstar a
);

Releases the space occupied by the generator pointed to by the parameter a. Function to identify a 5X library

Function to Identify a 5X Library

The following function determines whether a library is a 5X compatible library.

ddLibIs5X

Boolean

ddLibIs5X(
ddId libId
);

OpenAccess supports different types of design management systems using plug-ins. DFII on OpenAccess supports only the FileSys plug-in which provides backwards compatibility with the 5X library structure. This function determines whether a library was created with the 5X library structure.

Returns TRUE if the library was created as a 5X library. Returns False otherwise.

Data Organization

Many tools have the following model for organizing data:

• A library contains collections of module-specific data called cells.
• Cells contain design-specific collections of data called views.
• Views contain files (cellviews).

The following table shows the design data (DD) ID types of the objects that correspond to the libraries, cells, views, and the files contained in them.

Object	DD ID type
Library	ddLibId
File belonging to a library	ddLibFileId
Cell	ddCellId
File belonging to a cell	ddCellFileId
View	ddViewId
File belonging to a view	ddViewFileId

Object Information Retrieval Functions

The following functions retrieve information about objects.

ddIsId

Boolean

ddIsId(
ddId id
);

Returns TRUE if the parameter id is a 32-bit opaque ID known to the PI, and returns FALSE otherwise.

ddGetObjName

String

ddGetObjName(
ddId obj
);

Returns the name of the object.

ddDeleteObj

Boolean

ddDeleteObj(
ddId obj
);

Deletes the object and removes it from use. Depending on the design management integration, the object may simply be removed from the next release of the project yet remain in the repository, or the object may be completely removed along with its history.

If the underlying design management system is designSync, the design manager removes the object from the next release of the project, but the object remains in the repository. However, if the underlying design management system is versionSync, the design manager deletes the object from the repository, as both the file and its entire history are removed.

If you delete a directory object, ddDeleteObj tries to get an exclusive lock, in non-blocking mode, on every data file in the hierarchy under that directory. If it fails to get any lock, it detects that another process is using that file. It therefore cannot delete the object, and it returns FALSE without deleting anything.

If obj is a library, this function deletes the library directory from the disk and removes the library entry from the cds.lib file. If the library has been defined in more than one cds.lib, ddDeleteObj does not delete the library from the disk; instead, it adds an UNDEFINE statement for the library to the appropriate cds.lib file.

If obj is of any other type, ddDeleteObj removes the object from disk from the master directory.

ddGetObj

ddId

ddGetObj(
String libName,
String cellName,
String viewName,
String fileName,
ddId contextId,
String mode
);

Description

Finds libraries, cells, views, and files, and creates cells, views, and files. The simplest usage is to find a library by name:

library = ddGetObj("libName", NULL, NULL, NULL, NULL, "r")

DDPI uses the following concepts to define the behavior of ddGetObj:

• A master file is a file that the writing application looks to for source data or data that cannot be recreated without user input. There can be only one master file per view. The master file might be identified by the file belonging to the view named master.tag containing the name of the master file.
• A co-master file is a file that the writing application looks to for source data or data that cannot be recreated without user input but is useless without the master. Examples in include an index for the master file; sheets of a multi-sheet schematic, where the index is the master; or separation of graphics and property data into separate files.
• If a file is not a master or a co-master, it is a derived file. Derived files can be recreated from master files, or master and co-master files, in the same view. Only the creating tool can distinguish between masters or co-masters and derived files.
  To access a derived file correctly, the tool must specify the contextId for the master. If writing or appending to the file, use the d modifier in the mode parameter.
• The relative name for a file is specified relative to a library. Files can belong to the library, cell, or view. The name consists of
  [/cellName[/viewName]]/fileName
  The ddGetObj function searches for the object under your specified library in the cds.lib files until it finds the first occurrence of the “relative named” object. If you requested read access, the function is done and returns an id. It returns an error if the tool does not have read access to that object.
  If you request any other access mode, ddGetObj first searches for the object as it does in read mode, then returns a value according to whether or not the file exists.

ddGetObj takes string names instead of ddIds as the input for its query because you use it to locate objects when you do not yet have their ddIds. You can supply a context object instead of specifying some of the names. DDPI takes the missing names from the context object for the query.

Arguments

libName	Specifies the library name to find the object you want. The named library must appear in the LibList. If you do not specify a libName but you specify a contextId, DDPI takes the libName from the context object.
cellName	Specifies the name of a cell in the path to the object you are looking for. ddGetObj looks for the cell in the library named by libName. If you do not specify a cellName but you specify a contextId, DDPI takes the cellName from the context object.
viewName	Specifies the name of a view in the path to the object you are looking for. ddGetObj looks for the view in the library specified by libName, in the cell specified by cellName. If you do not specify a viewName but you do specify a contextId, then DDPI takes the viewName from the context object. Switch-List Behavior The viewName parameter can (optionally) be a space-separated list of view names. If you use this option, then each time DDPI visits a place to look for an object, it looks for one with successive viewNames from the list. DDPI returns successfully if it finds a match with any of the viewNames. Thus, you can prioritize which view to look for first by ordering the view list. DDPI checks all the views in each place. It does not repeat the entire search for each view.
fileName	Indicates you are looking for a file object and specifies its name. ddGetObj looks for the file in the named library only. Wildcard Behavior For the convenience of applications like the Design Editor (de), which need to find a master file without knowing the file's name, you can specify an asterisk (*) that opens the master file belonging to the view. This feature works only for viewFiles. In addition, if you know the file’s name and its extension or a pattern of trailing characters, you can specify the filename as *pattern, for example, *arch.vhd, and it will return the master file that matches that pattern.
contextId	You can specify a contextId object from which to take the library, cell, or view names. This parameter provides a way to find an object that is in the same directory or has the same parents as some other object.
mode	Controls side effects of ddGetObj.
	The following values are allowed: r Gets the ID of an existing object in the specified library. w Gets the ID for the new object to be created. This option is for creating master data. If the object is the first file in a view, it is marked as the master object. This fails if a master object already exists in the specified view. wc This option is for creating co-master data and is similar to w except that if the object is a viewfile, it is created without marking it as a master object. This succeeds even if there is a master object in the view. wd This option is for creating derived data and is similar to w except that the object is created only if the object specified by b_contextId is a master. This file is co-located with the master object. a Gets the ID of an existing object in the specified library. You can open it for modification. The object will be created if it does not exist. ad Gets the ID of an existing derived object in the specified library. You can open it for modification. The object will be created if it does not exist and behaves the same as wd.
	The ddGetObj function might create new cells, views, and files as a side effect to w, wd, a, or ad mode requests when the object is created. Here are object type parameters to specify: libName to create or access a library. libName and fileName to create or access a library file. libName and cellName to create or access a cell. libName, cellName,* and fileName to create or access a cell file. libName, cellName,* and viewName to create or access a view. libName, cellName,* viewName,* and fileName to create or access a view file.

ddGetObjLib

ddId

ddGetObjLib(
ddId obj
);

Finds the ID of the library path object that contains it when given any ddId. If the object is a library, it returns the same ID.

ddGetObjType

ddType

ddGetObjType(
ddId obj
);

Returns the ddType of the object when given the ddId of an object.

ddGetTypeName

String

ddGetTypeName(
ddType type
);

Returns a string that contains the name of the value, when given an enum of type ddType. This name must be copied before the next call to ddGetTypeName because DDPI allocates it in a static buffer.

ddGetMasterSet

ddGetMasterSet(
g_viewId
);

Description

Returns the list of files in the Master Set (if defined) for the given viewId or returns nil. The Master Set is a subset of the Co-Managed Set composed of master data.

Arguments

g_viewId

A viewId returned by ddGetObj.

Value Returned

l_masterSetList	The list of files in the Master Set for the given viewId.
nil	The Master Set is not defined.

Example

viewId=ddGetObj("mylib" "mycell" "layout" "layout.oa" nil "w")

masterSet=ddGetMasterSet(viewId)

returns

("layout.oa" "master.tag")

ddStartGenObjRel

ddObjRelState*

ddStartGenObjRel(
ddId obj, ddObjRelType relType
);

Initializes a generator to get the list of

• Cells or files belonging to a library
• Views or files belonging to a cell
• Files belonging to a view

The obj parameter specifies the parent object, and the relType parameter specifies whether you want the list of child objects or of files. Returns NULL if there are no objects with the specified relationship.

If an object gets created while the generator is active, it is not made visible until the next call to ddStartGenObjRel. If an object is deleted after the generator is started but before you access the object, you might get an “object does not exist” warning when you access it. The ddStartGenObjRel function does not get you any object locks.

ddGenObjRel

ddId

ddGenObjRel(
ddObjRelState* pGen
);

Returns the next entry in the list of files each time you call ddGenObjRel in the generator state specified by pGen. When the list is exhausted, it returns NULL.

ddStopGen

void

ddStopGen(
voidstar a
);

Releases the space occupied by the generator pointed to by the parameter a. This function works with all DDPI generators.

File Location for Reading and Writing

The following functions enable a tool to read from or write to files when it needs to.

ddGetObjReadPath

String

ddGetObjReadPath(
ddId obj
);

Returns the read path to the object when given the ddId for the obj. Because the path that DDPI returns is not persistent, copy it before making any other dd or db calls.

ddGetObjWritePath

String

ddGetObjWritePath(
ddId, obj
);

Returns the write path to the object when given the ddId for obj. Because the path that DDPI returns is not persistent, copy it before making any other dd or db calls.

Synchronization and Access Protection

As workbenches become collections of cooperating tools, the need increases for tools to synchronize their access to files. As Cadence^® design framework II design manager goes away, DDPI provides similar file-access synchronization services using this procedural interface.

The following two mechanisms are needed to support cooperative work:

• Access protection so only appropriate files can be accessed (using UNIX mechanisms)
• Long transactions based on checkin and checkout
  Multiple users concurrently employing tools need long transactions supplied by a design management system. Checkin and checkout behavior is optional. The procedural interface does nothing unless the data is managed by a design management system.

File Checkout and Checkin

The following functions work together to check files out and back in.

ddNeedCheckout

Boolean

ddNeedCheckout(
ddId file
);

Returns TRUE if the file (given a ddId for a file object) is a DM-managed object that needs to be checked out. Returns FALSE if the library is not DM managed or if the file does not need to be checked out.

ddNeedCheckout exists only so tools that need to provide automatic checkout behavior can determine if they need to call the ddCheckout and ddCheckin functions. An example follows:

/* Suppose you want to update a file that belongs to a library */
ddId fileId = ddGetObj(NULL, NULL, NULL, fileName, libId, "w");

/* NOTE ddGetObj() only returned the id, it didnot open anything
* so it didnot find that the file was not writable.
*/
if(ddNeedCheckout(fileId)){  /* See if it needs checkout */
   ddId fileList[2];
   fileList[0] = fileId;
   fileList[1] = 0;
   void) ddCheckout(fileList,"");    /* Check it out */
}

ddCheckout

Boolean

ddCheckout(
ddId* files, String switches
);

Builds a system command that calls the cdmcheckout command. The cdmcheckout command makes it possible to integrate Cadence tools with Revision Control System (RCS) and other version control applications. The files parameter is a NULL-terminated array of ddIds.

The switches allowable are r and v

r	Checks out files as read-only.
v	Specifies a particular version of a file to be checked out. You must always follow this switch with the version of the file you are checking out.

ddCheckin

Boolean

ddCheckin(
ddId* files, String description, String switches
);

Builds a system command that invokes the cdmcheckin command. cdmcheckin makes it possible to integrate Cadence tools with Revision Control System (RCS) and other version control applications. The files parameter is a NULL-terminated array of ddIds. The switches allowable are c and f

c	Cancels the checkout of the named files.
f	Forces the checkin, even if the file did not change.
