Viewing Waveform Results in Register Format

To view the waveforms produced during a simulation in register format:

1. In the schematic window, select Simulation – Show Registers.

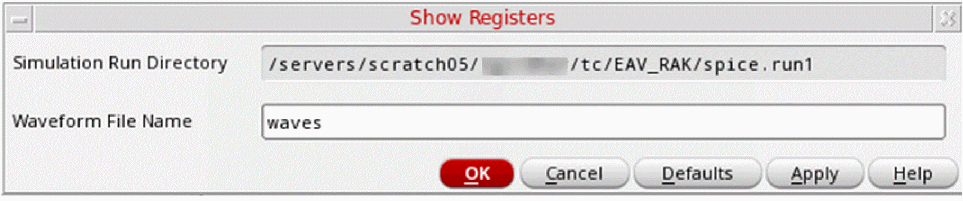

   The Show Registers form appears.


   The Simulation - Show Registers command is enabled only after you have used the Initialize command to initialize the simulation environment.
2. In the Waveform File Name field, specify the name of the waveform file to be displayed.
3. Click OK.

The system opens the register display window.
