Working With Function Templates

This chapter describes the function templates and how you can use them to create new functions in Virtuoso Visualization and Analysis XL Calculator with supporting examples.

Function Templates

Function templates are a mechanism to facilitate easier construction and addition of new functions in the Calculator. They are described in a prescribed format in function template file.

Virtuoso Visualization and Analysis XL uses these template files to perform the following tasks:

Builds lists of function names, separated into categories and displays it in the GUI panel.
Generates an expression using rules present in the template file.

Function Template Search Paths

Virtuoso Visualization and Analysis XL searches for function templates using csfsearchpath. The priority of searching a UDF GUI template will be:

<CSF_SEARCH_PATHS>/measures
<CDS_INST_DIR>/tools/dfII/etc/tools/viva/functionTemplates

Virtuoso Visualization and Analysis XL function templates, shipped by Cadence, are stored at the following location:

<CDS_INST_DIR>/tools/dfII/etc/tools/viva/functionTemplates

Template Catalog Summary File

The template catalog summary file .skeMeaseruesCatalog lists the categories and the templates that exists in each category. Virtuoso Visualization and Analysis XL template catalog file is shipped in the following directory.

<CDS_ROOT>/tools/dfII/etc/tools/viva/functionTemplates/.skeMeasuresCatalog

Different categories are specified in-between the lines skeBeginCategory and skeEndCategory. The below example defines Math, Modifier, RF Functions, Special Function, and Trigonometric as the categories.

skeBeginCategory

Math

Modifier

RF Functions

Special Functions

Trigonometric

skeEndCategory

You can specify different functions within a category in between the lines:

skeBeginMeasures <Category Name> & skeEndCategory.

For example, function “Fourier Evaluation” of category “Special Functions can be defined as follows:

skeBeginMeasures.Special Functions

fourEval;"Fourier Evaluation"

skeEndMeasures

Creating a template file

To add a new function, write a template file for your function and override .skeMeasuresCatalog file.

To create a template file, perform the following steps:

Choose one of the two directories listed below where you want to store the new functions:
- <CSF_SEARCH_PATHS>/measures
- <CDS_INST_DIR>/tools/dfII/local/tools/wavescan/measures
After creating a directory named “measures” which is accessible to the complete project team, copy <CDS_ROOT>/tools/dfII/etc/tools/wavescan/measures/.skeMeasuresCatalog to CSF_SEARCH_PATHS/measures/.skeMeasuresCatalog.
Open CSF_SEARCH_PATHS/measures/.skeMeasuresCatalog for editing.
Add an entry of the new function in between skeBeginMeasures & skeEndMeasures tags of the category where the new function is required to belong.
For example to add a function named ‘testfun’ in math category, add testfun; in between skeBeginMeasures Math & nearest skeEndMeasures line.
Current implementation doesn't merge the entries specified in separate .skeMeasuresCatalog files.

Working with Template File

Each Virtuoso Visualization and Analysis XL function template file describes a Calculator function. The template provides information such as:

The function name
The function’s categories
Input parameters and default values
Gui building tips such as adjacent row hints and parameter dependencies
Tool tip information (currently ignored).
Rules to build the function expression

The template is divided into following sections:

Header

Header describes the general function information such as the name, display name, description, and category list.

function name: This is the name used to construct the expression
name: This is the display name used as the dialog label in the function panel.
Category list: Each template can belong to multiple categories. For example, the riseTime template could belong to “Special Functions” and “transient”. Currently we do not define categories according to analysis type. The current categories are:
- Math
- Modifier
- RF Functions
- Special Functions
- Trigonometric

The Analysis Section

The analysis section describes how to generate the expression, the signal, and parameter arguments.

args: Describe how to build the expression
signals: Describe each signal argument:

Examples

Example 1: Sample template with single argument: average.ocn

Location:

<CDS_INST_DIR>/tools/dfII/etc/tools/wavescan/measures/average.ocn

  1;;; GUI builder information ;;;;;;;;;;;;;;;;;;;;;;;;;;;

      2 ocnmRegGUIBuilder(

      3   '(nil

      4     function average

      5     name average

      6     description "Compute average of a waveform over its entire range."

      7     category ("Special Functions")

      8     analysis (nil

      9               general (nil

     10                    args (signal)

     11                    signals (nil

     12                             signal (nil

     13                                     prompt "Signal"

     14                                     tooltip "signal to average"

     15                                     )

     16                    )

     17                    inputrange t

     18                    )

     19     )

     20     outputs (result)

     21    )

     22 )

The function name used to build the expression is defined by line 4 (function average).
Line 5 is the name used in the dialog label if a function panel is displayed. In this case the function signature takes a single argument (signal) and no function panel is required.
Line 6 is a simple description that will be used at some point for bubble help. (This feature is not yet implemented).
Line 7 is a set of category names. Typically each function belongs to a single category. Optionally a function can belong to multiple categories.
Line 8 begins the analysis section.
Line 10 is the args statement which provides the rule used by Virtuoso Visualization and Analysis XL to generate the function expression. The args statement is a list of ordered signal and parameter names and in our example contains a single item: signal. Therefore the signature looks something like: average(VT(“/net10”)), it takes a single signal name
The order in the args statement defines the order the parameter values will be named in the expression that is put into the buffer. This may or may not be the same order that is displayed in the function panel. Some functions require a more complex mechanism to describe the signature. The template mechanism provides a format statement that will be described in a later example.
Line 11 starts the signal section. A function signature might contain multiple signal parameters (ex: the delay function).
The single signal description begins at Line 12. Line 13 is the signal prompt used to name the signal parameter in the Function Panel. Line 14 is the signal tool tip. This is currently not used.

Example 2: Sample template with multiple arguments: delay.ocn

Location:

(<CDS_INST_DIR>/tools/dfII/etc/tools/wavescan/measures/delay.ocn)

      2 ;;;;;;;;;;;;;;;;;;;;;;;;;; GUI builder information ;;;;;;;;;;;;;;;;;;;;;;;;;;;

      3 ocnmRegGUIBuilder(

      4   '(nil

      5     function delay

      6     name delay

      7     description "delay "

      8     category ("Special Functions")

      9     analysis (nil

     10               tran  (nil

     11                    args (signal1 threshold1 edge1 type1 signal2 threshold2 edge2 type2 numberOfOccurences)

     12                    signals (nil

     13                             signal1 (nil

     14                                     prompt "Signal1"

     15                                     tooltip "signal to measure"

     16                                     )

     17                             signal2 (nil

     18                                     prompt "Signal2"

     19                                     tooltip "signal to measure"

     20                                     )

     21                    )

     22                    params (nil

     23                            threshold1 (nil

     24                                      prompt "Threshold Value 1"

     25                                      tooltip "Threshold Value 1"

     26                                      default 2.5

     27                                      type float

     28                                      min 0)

…

          periodicity1(nil

          prompt "Periodicity 1”

          tooltip "Periodicity 1"

          default 1

          type float )

…

     65                            periodicity2 (nil

     66                                      prompt "Periodicity 2"

     67                                      tooltip "Periodicity 2"

     68                                      default 1

     69                                      type float

     70                             )

     71                             numberOfOccurences (nil

     72                                      prompt "Number of occurrences"

     73                                      tooltip "Occurrence choice"

     74                                      default single

     75                                      type ((single (0 0 nil nil)) (multiple (" %s  %s  t  %s " periodicity1 periodicity2 sweepName)))

     76                             )

     77                            sweepName (nil

     78                                      prompt "Plot/print vs."

     79                                      tooltip "Independent variable to plot against."

     80                                      required nil

     81                                      default trigger

     82                                      type (trigger target cycle)

     83                                      min 0)

     84                    )

The delay template is similar to average. Some differences:

Line 11: The args description contains multiple parameters so a Function Panel will be built to describe this function.
The signals section contains two signals named signal1 and signal2. The prompts (lines 14 and 18) will name the respective fields in the panel.
This template contains parameters beginning at Line 22.
Line 77: the parameter sweepName. Line 82 names the type: a simple list of cyclic choices. The default value (line 81) names the default choice to be initially displayed.
Line 71: a much more complex example of a cyclic type parameter (numberOfOccurances).
The cyclic type (Line 75) is a list of two choices: single and multiple:
```
type ((single (0 0 nil nil)) (multiple (" %s  %s  t  %s " periodicity1 periodicity2 sweepName)))
```
Each choice has an associated value that describes what must be added to the expression signature.
If you select “single”, then the value of numberOfOccurances put into the expression string is literally “0 0 nil nil”.
If you select “multiple”, the choice value is described by a formatted string and will look like: “<periodicity1> <periodicty2> t <sweepName>”. If the default values are used, then the choice resolves to: 1 1 t “trigger”.

Example 3: Signature described by a format statement: compression.ocn

Location:

(<CDS_INST_DIR>/tools/dfII/etc/tools/wavescan/measures/compress.ocn)

      9     analysis (nil

     10               general  (nil

     11                    ;; args (signal ...)

     12            format ("compression(dB20(harmonic(%s, %s)), ?x %s, ?compress %s)" signal harmNumber xpoint compressiondb)

The compression function is one of those examples where the expression does not conform to a simple rule of function name plus name/value pairs for the parameters. We have to use the format statement (line 12 above).

The format uses %s to substitute in the values of the named parameters (signal, harmNumber, xpoint, and compressiondb).

Example 4: Creating your own template

This example creates a template for calculator function named ‘trap’ that exists in a new category named ‘MyProject’.

To build a new template, it is advised to pick an existing similar template and modify it accordingly.

Define the function signature:
- Function name
- Signal parameters
- Additional parameters
For example to create a new function named trap with signature:
```
trap(<signal> <from> <to>)
```
The template signal section will contain a single signal named Signal. The parameter section will contain two parameters named From and To, both of type float.

Go to the source directory for template files:

<CDS_INST_DIR>/tools/dfII/etc/tools/wavescan/measures

Find an existing similar template so that you do not have to start from scratch. For example, if the new function trap was similar to existing function clip:
```
% cp clip.ocn trap.ocn
```
```
% chmod +w trap.ocn
```
Define the function information in the header section. Replace the information indicated in boldface below. Redefine the category name as MyProject.

  ocnmRegGUIBuilder(

         '(nil

          function trap

          name trap

          description "short tool tip description for trap function”

          category ("MyProject")

Define the args (or format) statement so we have a rule for building the expression.
For the trap example, no change is required in the args statement that comes from the clip template.
```
 args (signal From To)
```
Define the signal parameter in the signal section.
For the trap example reuse the clip example. Change the tool tip as required.

                    signals (nil

                            signal1 (nil

                                    prompt "Signal"

                                    tooltip "signal to trap "

Define the parameters
For the trap example, reuse the parameter definitions from the clip template. Change the tool tip values as required

               params (nil

                           From (nil

                                     prompt "From"

                                     tooltip "Trap Start"

                                     default 0

                                     type float

                                     min 0)

                            To (nil

                                     prompt "To"

                                     tooltip "End Trap Range"

                                     default 0

                                     type float

                                     min 0)

Install the measures file into the template directory.
Copy trap.ocn to <USER_HOME>/measures or CSF_SEARCH_PATHS/measures.
For more information, refer Function Template Search Paths.
Add entry in catalog file by doing following tasks:
- Install your new project catalog file.
```
% cp  <CDS_INST_DIR>/tools/dfII/etc/tools/wavescan/measures/.skeMeasuresCatalog CSF_SEARCH_PATHS/measures.
```
For more information, refer Template Catalog Summary File.
- Edit your new project catalog file to add the new category and function name:
  - Add category name at line #2 after skeBeginCategory keyword
  - Add new category section before skeBeginMeasures.Math.
  Your .skeMeasuresCatalog file will look like as below:
```
skeBeginCategory
```
```
MyProject
```
```
Math
```
```
Modifier
```
```
RF Functions
```
```
Special Functions
```
```
Trigonometric
```
```
skeEndCategory
```
```
skeBeginMeasures.MyProject
```
```
trap;trap
```
```
skeEndMeasures
```
```
skeBeginMeasures.Math
```
```
exp;exp
```
```
dB20;dB20
```

Now run Virtuoso Visualization and Analysis XL and open calculator, you should be able to see trap function added in MyProject function category.

Advanced Features to provide GUI Hints

The template format supports the following advanced features:

Sometimes it makes sense for two or more parameters to share the same row. An optional parameter property gridRowHint <num> directs Virtuoso Visualization and Analysis XL to layout all parameters with the same gridRowHint value on the same row.
Sometimes a parameter controls whether one or more other parameters are enabled or disabled. An optional parameter property guiEnableHint <target list> controls whether other parameters are enabled.

Example: evm.ocn template (evmQpsk)

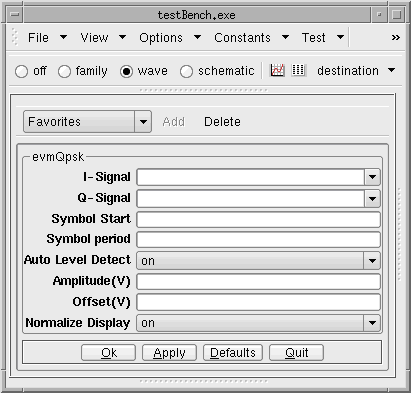

The above example is the GUI form for the original evmQpsk 6.1.0 template. The template contains no gridRowHints or guiEnableHints.

The next example shows how the two hint properties are used to:

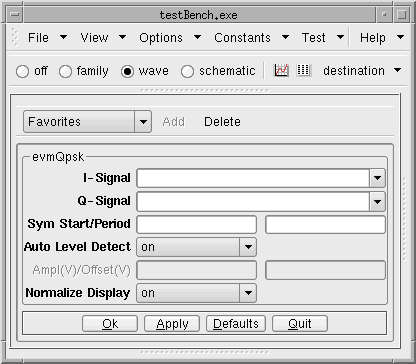

Place the Symbol Start and Symbol period parameters on the same row.
Place the Amplitude and Offset parameters on the same row.
The form has three columns instead of two to make the form more compact.
The Auto Level Detect parameter will enable/disable the Amplitude and Offset parameters.

Example: evmQpsk with gridRowHint and gridEnableHints:

The following is a snippet of the evmQpsk template with modifications is italized:

 delay (nil

  prompt "Sym Start/Period"

  tooltip "Symbol Start"

  type float

  required t

  guiRowHint 1

  min 0)

 sampling (nil

  prompt ""

  tooltip "Symbol period"

  type float

  required t

  guiRowHint 1

  min 0)

Notes on template changes:

The guiRowHint properties for delay and sampling have the same value (guiRowHint 1), so the prompt/value pairs for both parameters are put on the same row.
Column 1 contains the prompt for the delay value. Column 3 is supposed to contain the prompt for the sampling value; however, I wanted to simplify the layout and have three columns instead of four. Look at the prompt value for the delay parameter: it describes BOTH the delay and sampling value fields. The prompt for the sampling parameter is set to an empty string (“”).

The following is a snippet of the evmQpsk template with modifications is italized:

 Autoleveldetect(nil

  prompt "Auto Level Detect"

  tooltip "Auto Level Detect"

  type ( ("on" (t, nil, nil)) ("off" ("nil, %s, %s" voltage offset)))

  guiRowHint 2

  guiEnableHint ( (voltage off) (offset off) )

The autoleveldetect parameter is an enumerated type with values “on” and “off”. When it is “on”, there is no need to specify two other parameters: voltage and offset because those values will be automatically calculated.

If you want the GUI fields representing these other parameters to be disabled when autoleveldetect is “on”. The guiEnableHint target list gives the name(s) of the other parameters to enable (voltage and offset). Each target is specified as a list: the first name is the target name, followed by the set of autoleveldetect values that will turn that target on.

Examine the first target list for autoleveldetect’s guiEnableHint:

guiEnableHint( (voltage off) (offset off))

This hint tells the GUI that when the autoleveldetect enumerated value is “off”, the gui for the voltage parameter can be enabled. For any other autoenablehint value, the gui for the voltage parameter will be disabled.

Return to top

Virtuoso Visualization and Analysis XL User GuideProduct Version IC23.1, November 2023

F

Working With Function Templates

Function Templates

Function Template Search Paths

Template Catalog Summary File

Creating a template file

Working with Template File

Header

The Analysis Section

Examples

Example 1: Sample template with single argument: average.ocn

Example 2: Sample template with multiple arguments: delay.ocn

Example 3: Signature described by a format statement: compression.ocn

Example 4: Creating your own template

Advanced Features to provide GUI Hints

Virtuoso Visualization and Analysis XL User Guide
Product Version IC23.1, November 2023
