Transmission Line Taper Form

Use the Transmission Line Taper form to create a one-segment transmission line that connects two transmission lines of different width settings.

Field	Description
Snap Mode	Controls how the points of the taper snap to the grid.

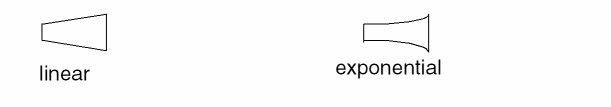

Taper Style	Sets the taper style you create:
Side 1 Width and Side 2 Width	Specifies the width of the taper ends in user units (typically microns).
Resolution	Sets the number of segments used in an exponentially tapered line. Environment variable: trlNPtsToPI
