Generating a DSPF

1. Click the Run tab from the task pane.

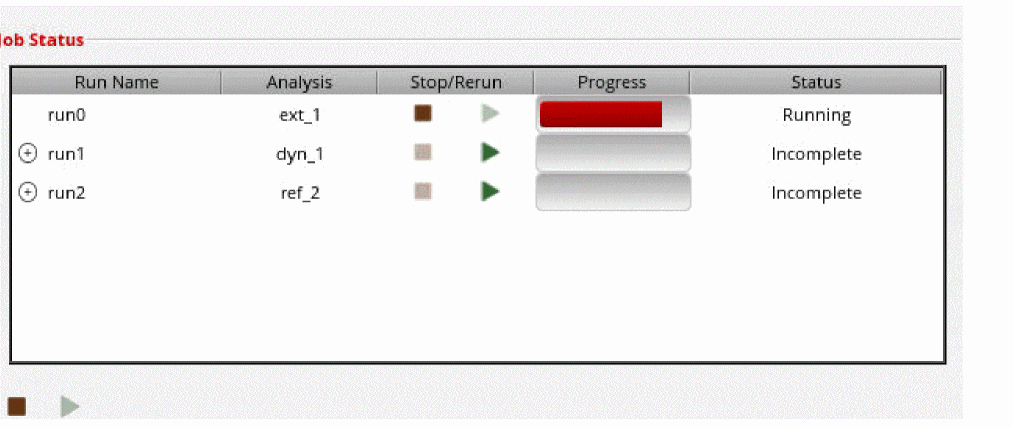

2. In the Job Status section, click the Start Run ( ) button next to the extraction run (ext_1).


   The extraction log appears at the lower section of the Voltus-XFi window. After the extraction run is complete, the log window displays the message “Finished Extraction”. The status changes from Running to Complete.
   You can click the Stop Run ( ) button to stop extraction.

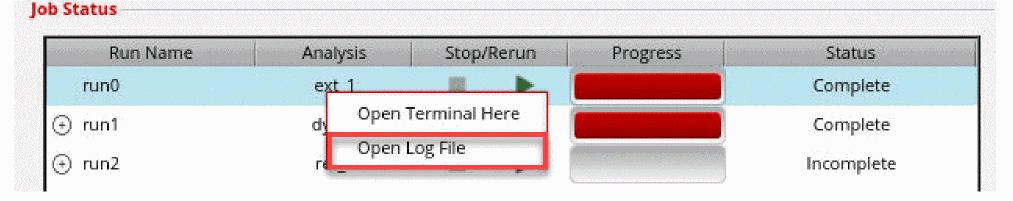

3. You can check the log file for the extraction run from within the Voltus-XFi interface by right-clicking the extraction run name and selecting the Open Log File option.

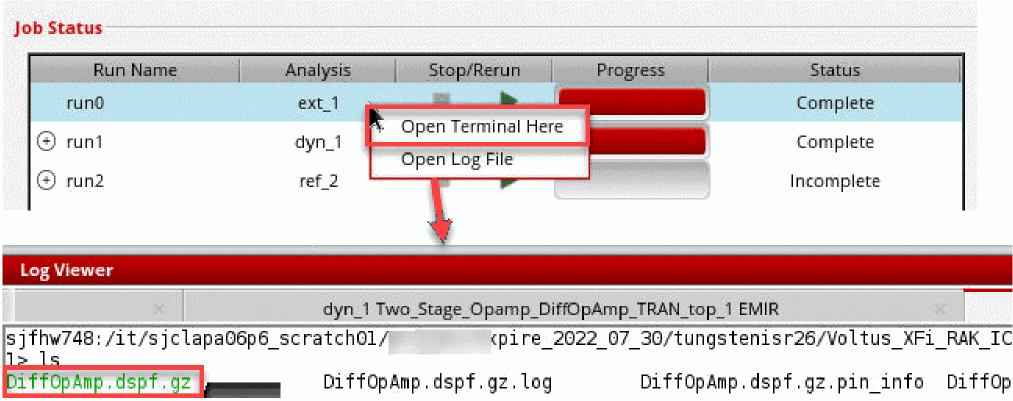

4. You can open the Quantus output directory from within the Voltus-XFi interface by right-clicking the extraction run name and selecting the Open Terminal Here option.
