The Placement Statistics Report

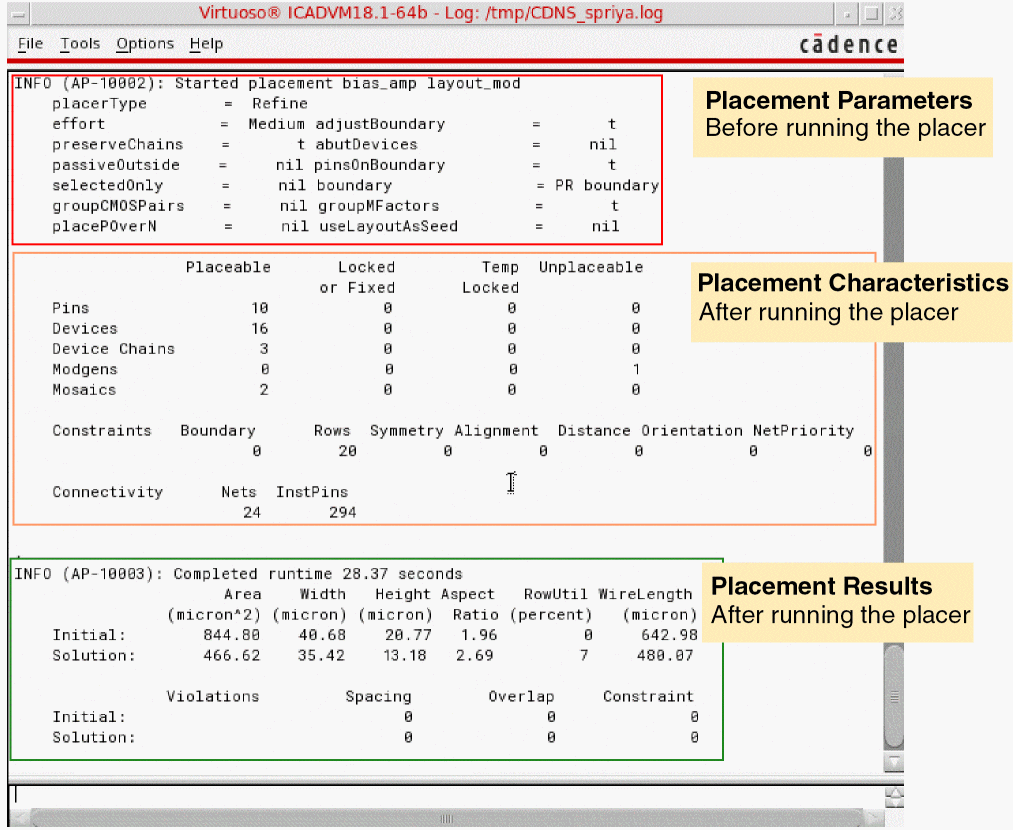

The Placement Statistics report is generated dynamically in the CIW as you run the automatic placer. The report provides the following information:

The Placement Statistics report displays the following information:

• Before running the automatic placer: A summary of the placement parameters in the current design.
• After running the automatic placer:
  • Placement Parameters: A list of the number of placeable, locked or fixed, temporarily locked, and unplacable components.

    Unplacable components are row-based objects in the design, but none of the rows in the design match these objects. This happens when there is a problem with the data setup, for example when the component definition of an object does not match any row.
  • Placement Results: Summary of the initial placement and the final placement achieved, followed by a list of errors and warnings (if any). The number of spacing and overlap violations is also listed.
