Export Flow

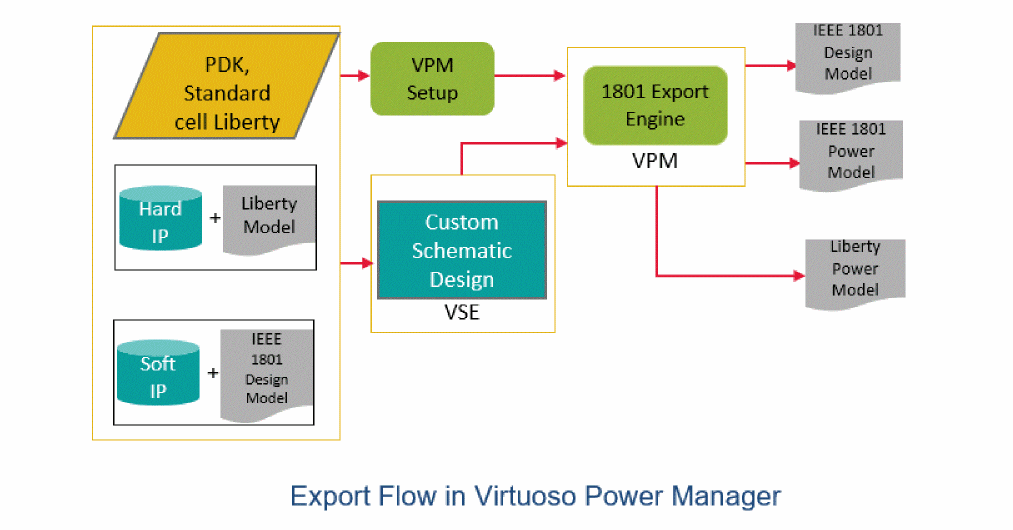

The illustration below gives an overview of the export flow.

Here are the key stages of the export flow.

Extraction of design
- Partitioning of the design
- Identification of PG net types, standard, special and other cell types
- Propagation of power information to sub blocks down the hierarchy
- Creation of power domains and power modes
Creation and export of Design Model of the design
Creation and export of Power Model of the design
Creation and export of Liberty Macro Model of the design
