Basic Flow in Power Manager

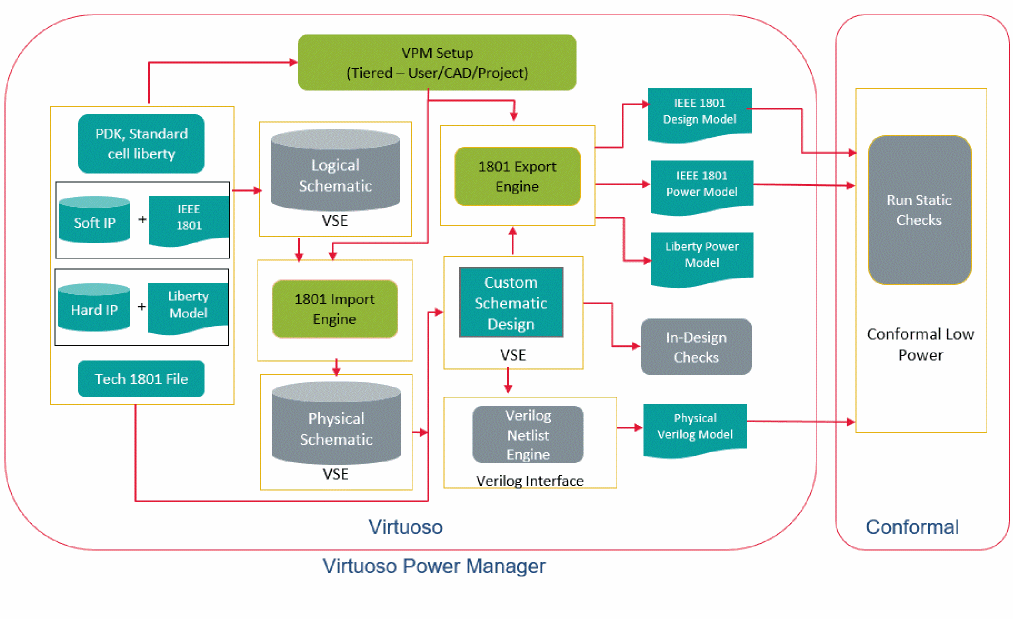

The basic Power Manager flow is illustrated below.

The Power Manager flow includes the following main tasks:

1. Prepare setup for capturing power intent.
2. Import existing 1801 power intent on a hierarchical schematic.
3. Update design.
4. Run In-Design Checks.
5. Extract relevant power intent information from design.
6. Export the extracted design information in the IEEE 1801format.
7. Verify the exported power intent of the design.
