Multi-Technology Enablement Flow

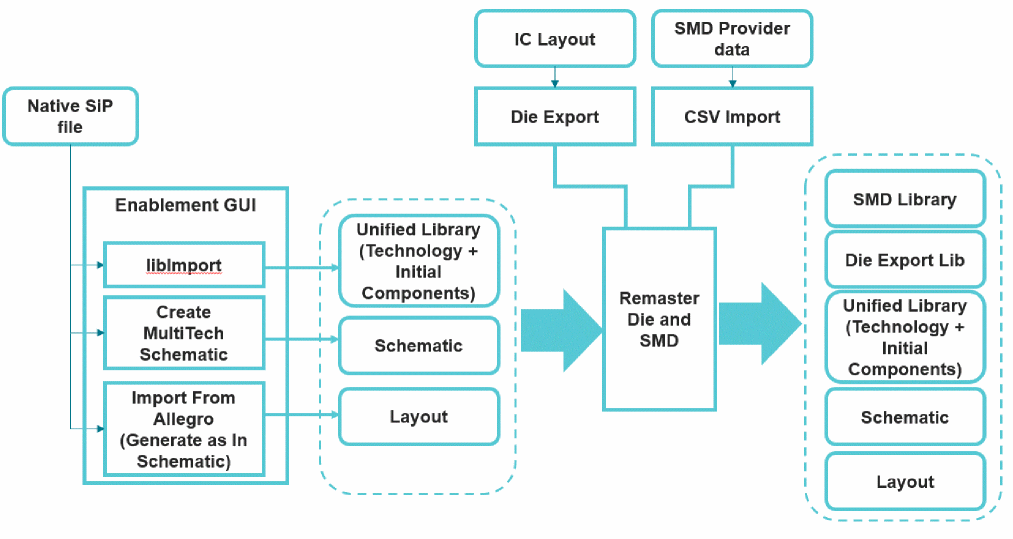

The enablement flow stitches together the libimport, multi-technology schematic creation, and layout import from Allegro process in a single step. The initial Virtuoso RF Solution database is made of a unified library containing the technology and other cells, a schematic view based on the SiP file content and connectivity, and a layout view in sync with the schematic. This design database created from a native SiP file is the starting point for the Virtuoso Schematic Editor Driven SiP Layout Flow.
