create_polygon

create_polygon_shape
-lpp s_lpp
-points {f_x1 f_y1 f_x2 f_y2… f_xn f_yn [ f_x1 f_y1 ]}

Creates a polygon shape on the given layer purpose at the given coordinates.

`-lpp` s_lpp	Specifies the layer purpose to add the polygon shape to.
`-points` { f_x1 f_y1 f_x2 f_y2 … f_xn f_yn [ f_x1 f_y1 ] }
	Specifies the boundary points for the polygon. The polygon will be closed even if you do not include the starting point (f_x1 f_y1) at the end of the list.

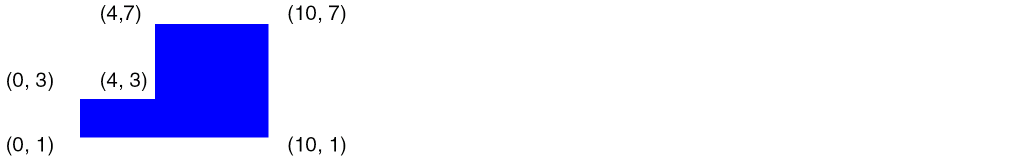

The following command creates the polygon shape shown in the following figure on the Metal1:wire:pin purpose.

create_polygon_shape -points {0 1 10 1 10 7 4 7 4 3 0 3 0 1} -lpp Metal1:wire:pin

The following equivalent command does not include the starting point at the end of the list.

create_polygon_shape -points {0 1 10 1 10 7 4 7 4 3 0 3} -lpp Metal1:wire:pin

Polygon Shape
