route_optimize

route_optimize
[ -all | -net s_netName | -set d_setObj | -nets {s_netName…} ]
[ -exclude_set d_setObj | -exclude_net {s_netName…} ]
[ -area { f_xlo f_ylo f_xhi f_yhi } ]
[ -z_pattern_factor <positive integer> ]
[ -vu_pattern_factor <positive integer> ]
[ -max_iterations i_count ]
[ -max_passes i_passes ]
[ -prune [ true | false ] ]
[ -process_rules_only [ true | false ] ]
[ -allow_jump [ true | false ] ]
[ -pin_optimize [ true | false ] ]
[ -insert_offset_vias [ true | false ] ]
[ -uniform_taper_to_first_via {none | useMinRule | useMaxRule | useViaDef | useSingle} ]
[ -maximize_cuts {none | useMinRule | useMaxRule | useViaDef | useSingle} ]
[ -make_only_net_spec_vias [ true | false ] ]
[ -allow_width_expand_for_maxcuts [ true | false ] ]
[ -via_orient [ true | false ] ]
[ -pin_connect_optimization {default | truncate | cover | cover_io_only} ]
[ -via_extent_optimization {default | truncate | cover} ]
[ -reduce_wrongway [ true | false ] ]
[ -allow_wrongway [ true | false ] ]
[ -wrongway_tolerance i_tracks]
[ -poly_contacts [ true | false ] ]
[ -stdout_report [ true | false ] ]
[ -exclude_pattern {[all][U][Z][L][V]} ]
[ -layer { s_layerName… } ]
[ -minus {[diffnet] [samenet] [width] [area] [enclarea] [portshorts] [crossing] [edge ] [grid] [mfggrid] [partial] [numcuts] [centerline ] [inter] [ext] [all]} ]
[ -ignore_net_types {[pair][match][symmetry][shieldParallel][shieldTandem][shieldCoaxial][all]} ]
[ -paired_nets [ true | false ] ]
[ -symmetry_nets [ true | false ] ]
[ -parallel_shielded_nets [ true | false ] ]
[ -tandem_shielded_nets [ true | false ] ]
[ -coaxial_shielded_nets [ true | false ] ]
[ -z_shift [ true | false ] ]
[ -use_taper_for_inline_maxcuts [ true | false ] ]

Description

Attempts to improve existing routing using various techniques. By default, all nets in the design are processed, except matched length nets. You can optionally limit processing to named nets, nets and/or routes in an area or set, nets of specific types, and certain layers.

The routing is scanned for various types of patterns: U, Z, L, V, H. When a pattern is found, routing is optimized to reduce the number of jogs and layer changes, as shown in the following figures:

You can optionally exclude any of these patterns and specify pattern threshold arguments.

U Pattern Optimization

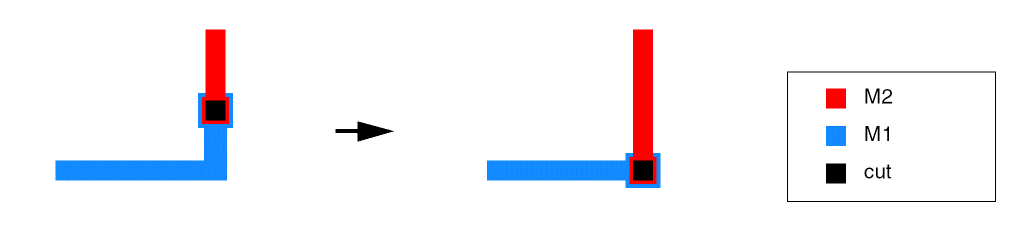

Z Pattern Optimization

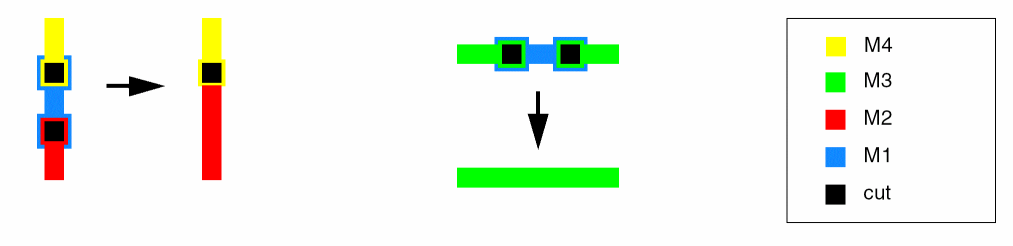

V Pattern Optimization

L Pattern Optimization

Other options let you specify optimization for the following:

Arguments

`-all`	Operates on the entire top cellview. This is the default.
`-allow_jump [ true \| false ]`
	When `true`, allows optimization of scenic routes using routing on a layer above or below to avoid obstructions, such as vias and pathSegments on other nets. Default: Re-routing on other layers is not used.
`-allow_width_expand_for_maxcuts [ true \| false ]`
	When `true`, permits the wires to be widened in the overlap area between connecting wires to enable the use of maximized cuts. Default: The overlap area is limited to the width of the wires.
`-allow_wrongway [ true \| false ]`
	When `true`, allows the use of wrong-way routing to optimize more costly routing. Default: Wrong-way routing is not used for optimizing.
`-area` { f_xlo f_ylo f_xhi f_yhi}
	Operates on the specified region, given the lower-left and upper-right coordinates. By default, operates on the entire top cellview.
`-coaxial_shielded_nets [ true \| false ]`
	When set to `false`, coaxial shielded nets are not processed. Default: Permits optimization of coaxial shielded nets.
`-exclude_net` {s_netName…}
	Excludes nets in the list from processing.
`-exclude_pattern` {`[all][U][Z][L][V]`}
	Specifies the patterns to be excluded during optimization. By default, all patterns are optimized.
`-exclude_set` d_setObj	Excludes nets in the set from processing.
`-ignore_net_types {[pair] [match] [symmetry] [shieldParallel] [shieldTandem] [shieldCoaxial] [all]}`
	Excludes processing nets of the given types. By default, all nets except matched nets are processed.
`-insert_offset_vias [ true \| false ]`
	When `true`, offset vias are used. Default: Centered vias are used during optimization.
`-layer` { s_layerName… }
	Operates only on the specified layers. By default, all layers are processed.
`-make_only_net_spec_vias [ true \| false ]`
	When `true`, only oaStdViaDefs and cdsViaDefs in the `validRoutingVias` for the net can be used when creating vias for via maximization. By default, all defined oaStdViaDefs and cdsViaDefs can be used.
`-matched_nets [ true \| false ]`
	When `true`, matched length nets are optimized. Matched length nets use specific techniques for length matching which can be removed by route optimization. Default: Matched length nets are not processed.
`-max_iterations` i_count
	By default, the command runs up to three (3) iterations of up to twenty (20) passes each.
`-max_passes` i_passes	By default, the command runs up to twenty (20) passes for each iteration. The first pass for an iteration processes all required nets, then up to nineteen (19) additional passes are run on the impacted nets of the previous pass. Impacted nets are those surrounding optimized nets.
`-maximize_cuts {none \| useMinRule \| useMaxRule \| useViaDef \| useSingle}`
	When connecting to wide wires, will attempt to maximize the number of cuts or the size of a single cut after routing, according to the specified setting:
	`none`	(Default) There is no effort to maximize cuts.
	`useMaxRule`	Uses the maximum number of via parameters from the applicable oaStdViaDef and existing via rules to maximize the number of cuts.
	`useMinRule`	Uses constraint values for the cut layer and if not found, allows these constraints to be derived from the default oaStdViaDef. This is the default when `-maximize_cuts` is given with no setting.
	`useSingle`	Uses constraint values for the upper metal to maximize the via using a large cut via.
	`useViaDef`	Uses via parameters from the applicable oaStdViaDef instead of using constraint values for the cut layer. No vias will be created that violate existing via rules.
`-minus` {`[diffnet] [samenet] [width] [area] [enclarea] [portshorts] [crossing] [edge ] [grid] [mfggrid] [partial] [numcuts] [centerline ] [inter] [ext] [all]`}
	Excludes the specified checks during processing. By default, all checks are performed.
`-net` s_netName	Operates only on the specified net.
`-nets` {s_netName…}	Operates only on the specified nets.
`-paired_nets [ true \| false ]`
	When set to `false`, paired nets are not processed. Default: Permits optimization of paired nets.
`-parallel_shielded_nets [ true \| false ]`
	When set to `false`, parallel shielded nets are not processed. Default: Permits optimization of parallel shielded nets.
`-pin_connect_optimization {default \| truncate \| cover \| cover_io_only}`
	Specifies the wire extent for path segments over pins.
	`default`	(Default) The path segment extent will cover one-half (1/2) the pin width.
	`cover`	The path segment extent will cover the pin.
	`truncate`	There will be no extent for the path segment over the pin.
	`cover_io_only`	The path segment completely overlaps only the IO pins along the direction of the wire.
`-pin_optimize [ true \| false ]`
	Optimizes routes to pins; removes unnecessary jogs.
`-poly_contacts [ true \| false ]`
	When `true`, aligns and maximizes cuts with the long axis of poly and contactless metal. Default: `false`
`-process_rules_only [ true \| false ]`
	When `true`, only process rules are applied. By default and when set to `false`, process rules and nondefault rules will be considered.
`-prune [ true \| false ]`
	When set to `true`, removes path segments with null endpoints. These are types of dangles. Default: `false`
`-reduce_wrongway [ true \| false ]`
	When set to `true`, will attempt to re-route wires to reduce wrong-way routes. Default: `false`
`-set` d_setObj	Processes only nets and/or routes in the set.
`-symmetry_nets [ true \| false ]`
	When set to `false`, symmetry nets are not processed. Default: Permits optimization of symmetry nets.
`-tandem_shielded_nets [ true \| false ]`
	When set to `false`, tandem shielded nets are not processed. Default: Permits optimization of tandem shielded nets.
`-uniform_taper_to_first_via {none \| useMinRule \| useMaxRule \| useViaDef \| useSingle}`
	If this argument is given with no setting or a setting other than `none`, tapering will apply from the pin to the first via, and cuts will be maximized after routing, where possible, according to the specified setting):
	`none`	(Default) There is no change to tapers.
	`useMaxRule`	Uses the maximum number of via parameters from the applicable oaStdViaDef and existing via rules to maximize the number of cuts.
	`useMinRule`	Uses constraint values for the cut layer and if not found, allows these constraints to be derived from the default oaStdViaDef. This is the default when the argument is given with no value setting.
	`useSingle`	Uses constraint values for the upper metal to maximize the via using a large cut via.
	`useViaDef`	Uses via parameters from the applicable oaStdViaDef instead of using constraint values for the cut layer. No vias will be created that violate existing via rules.
`-use_taper_for_inline_maxcuts [ true \| false ]`
	When set to `true`, maximizes cuts based on the width of the taper route spec when a taper wire connects to a via or via stack and the next wire is oriented in the same direction as the taper wire. When set to `false`, cuts are maximized based on the width of the route or net route spec. Default: `false`
`-via_extent_optimization` {`default \| truncate \| cover`}
	Specifies the coverage of path segment extents over vias.

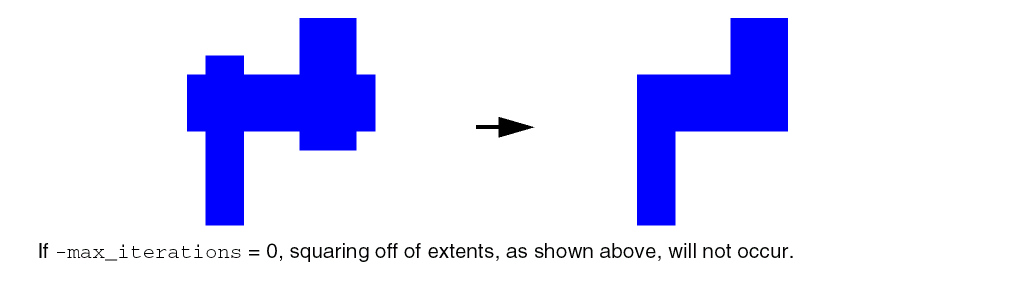

	`default`	(Default) If `-max_iterations` is greater than 0, then the path segment extent will be made large enough to cover the via; otherwise, no change is made to path segment extents over vias.
	`cover`	The extent for the path segment is made large enough to cover the via .
	`truncate`	If the wire extent is greater than or equal to one-half the wire width, then the extent is trimmed to one-half the wire width. If the wire extent is greater than 0 but less than one-half the wire width, then it is changed to a wire extent of 0.
`-via_orient [ true \| false ]`
	When `true`, allows via orientation to change so that vias are in line with the wires, overlapping the wire as much as possible, and reducing corners, making the routing as efficient as possible. Default: Orientation of vias is not changed.
`-vu_pattern_factor` i_vuFactor
	Specifies the factor that determines when vertical U pattern optimization should be attempted according to the formula (W * `vu_pattern_factor < D)`, where W is the width of the wire to be removed and D is the length of the wire. Default: 1000
`-wrongway_tolerance` i_tracks
	When wrong-way routing is allowed for optimization, wrong-way routing is limited to this number of tracks. Default: 2

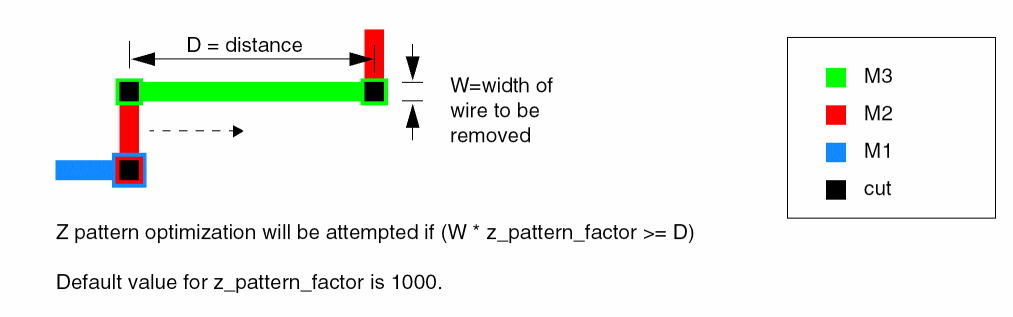

`-z_pattern_factor` i_zFactor
	Specifies the factor that determines when Z pattern optimization should be attempted according to the formula (W * `z_pattern_factor >= D)` where W is the width of the wire to be removed and D is the length of the wire. Default: 1000
`-z_shift [ true \| false ]`
	When `true`, allows Z patterns to be moved to free space to allow movement of other wires when the pattern cannot be removed by optimization. Default: If the Z pattern optimization is not successful for a Z pattern, the pattern is not moved.

Examples

The following example optimizes routing using larger single cuts and no wrong-way routing, without changing the topology.

route_optimize -maximize_cuts useSingle -exclude_pattern all

Pin Connection Optimization

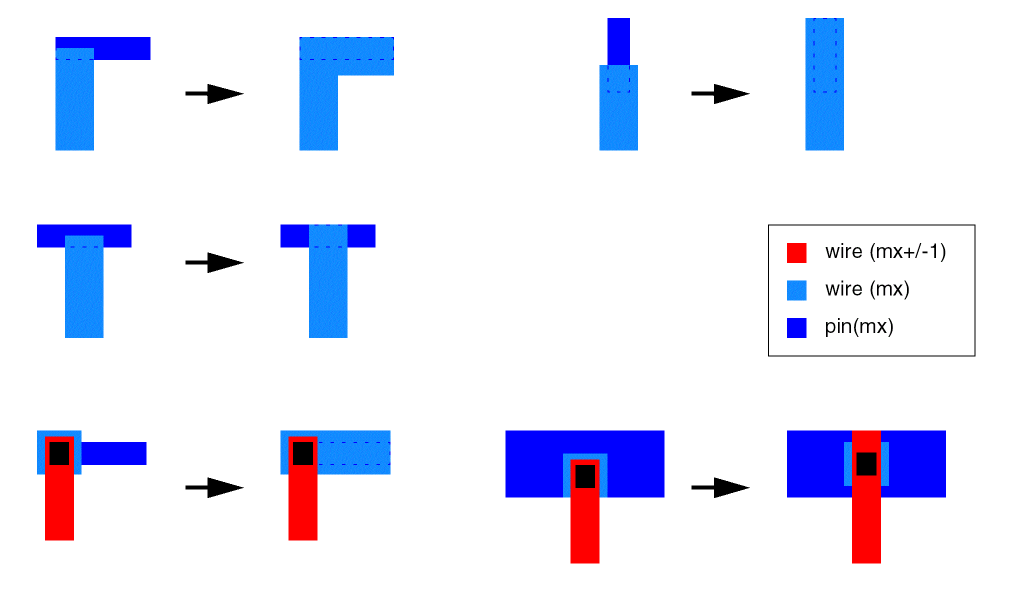

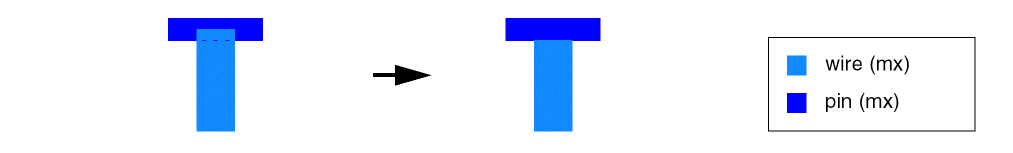

-pin_connection_optimization cover

-pin_connection_optimization truncate

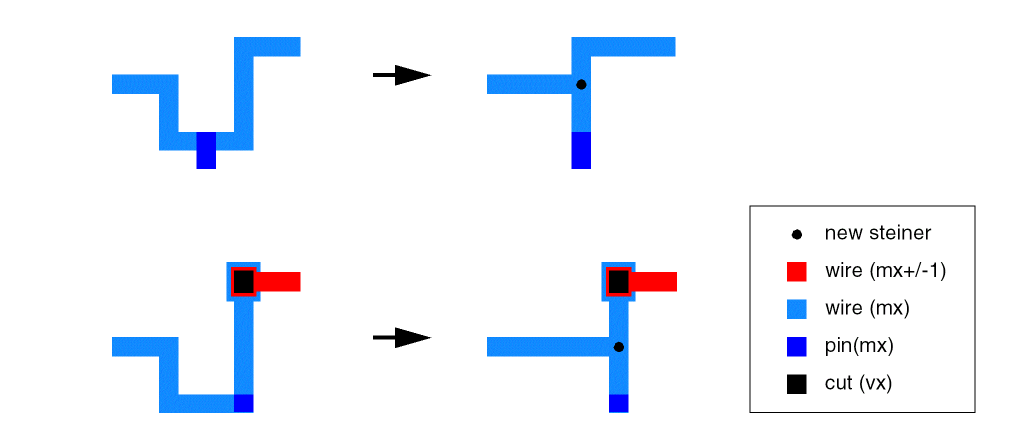

-pin_optimize true

Taper Optimization

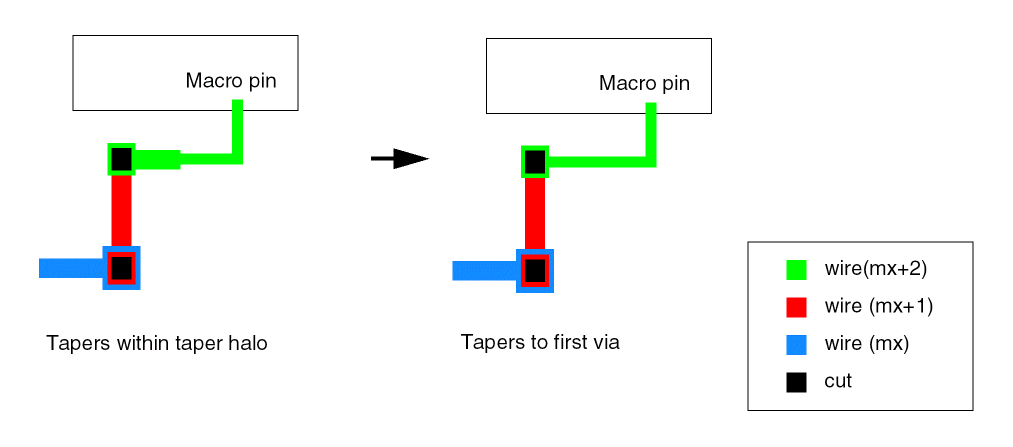

-uniform_taper_to_first_via

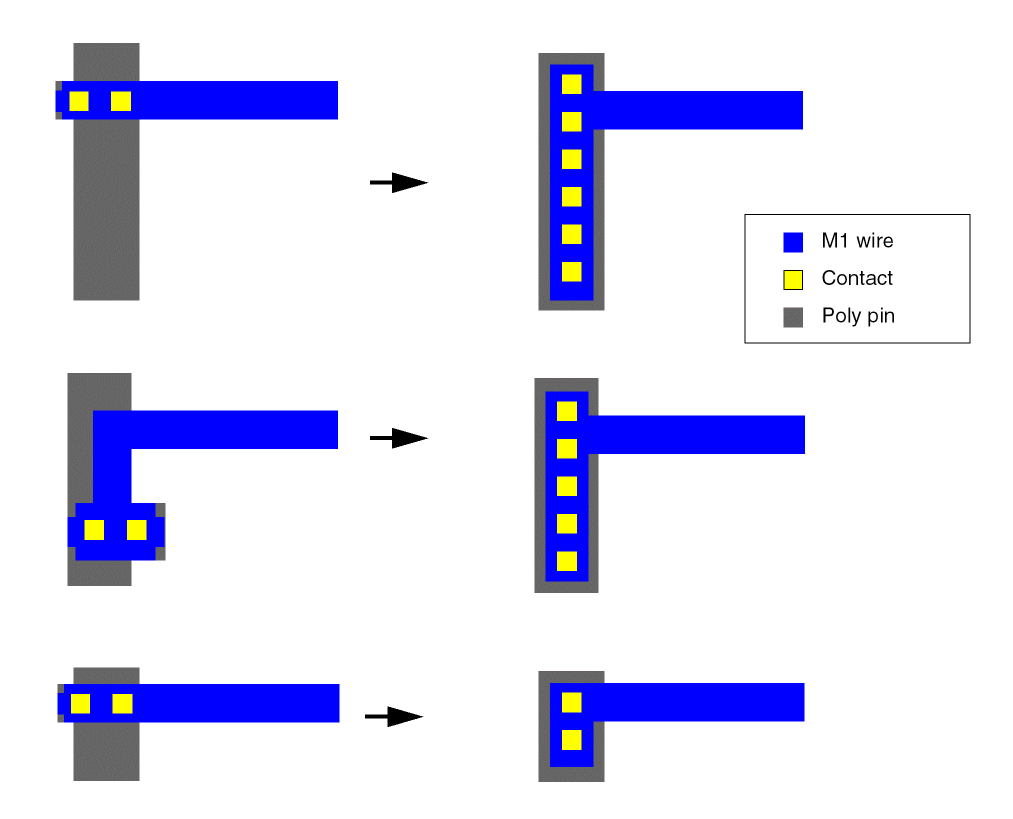

-poly_contacts true

Via Extent Optimization

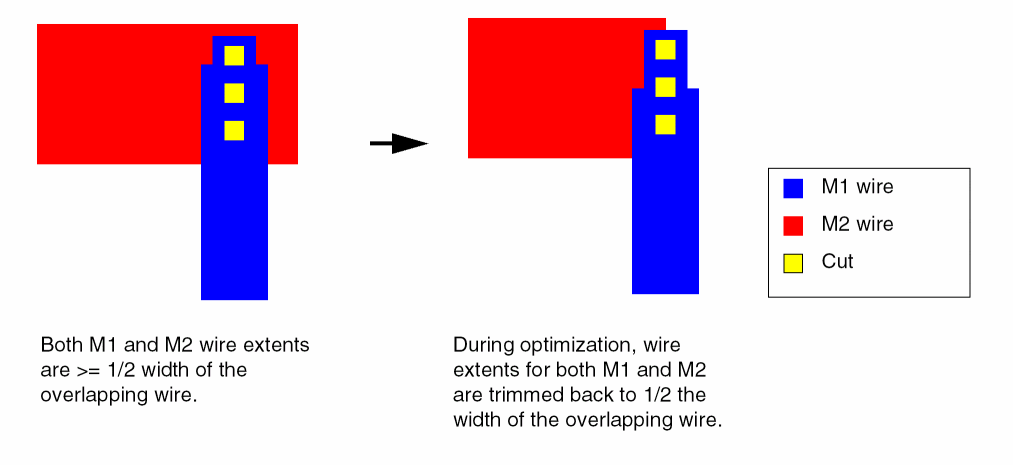

-via_extent_optimization truncate

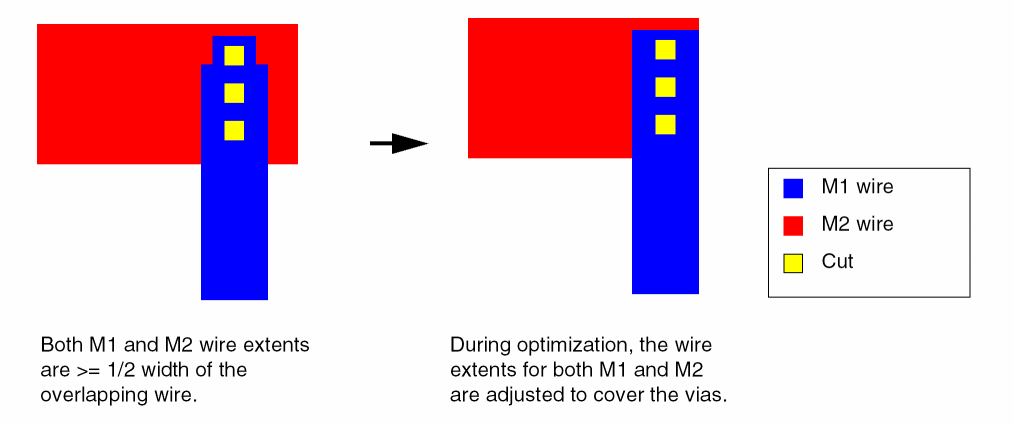

-via_extent_optimization cover

Via Optimization

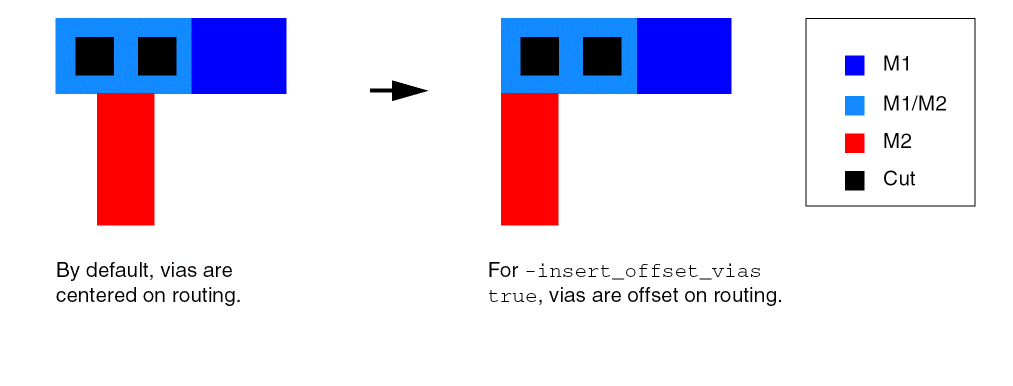

-insert_offset_vias true

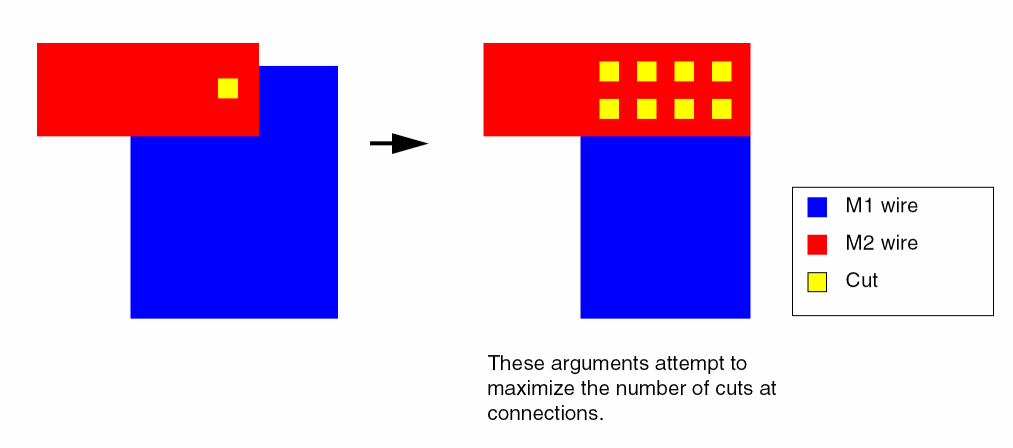

-maximize_cuts {useMinRule | useMaxRule | useViaDef}

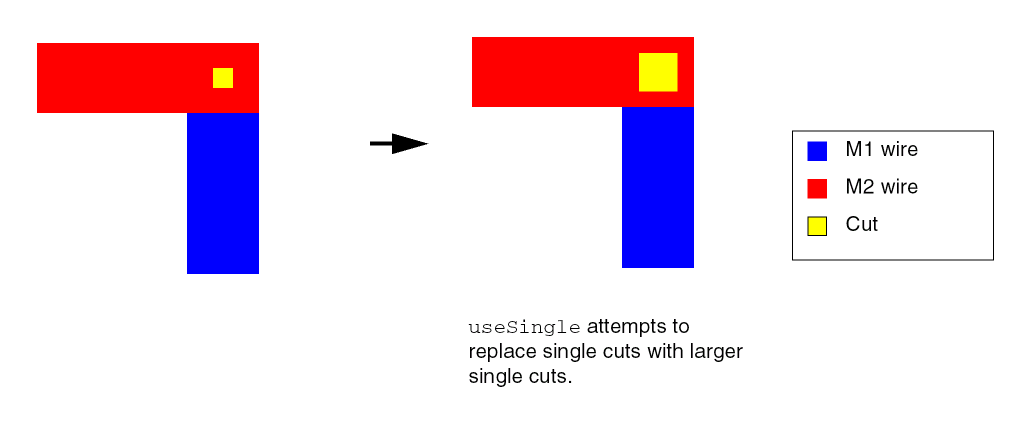

-maximize_cuts useSingle

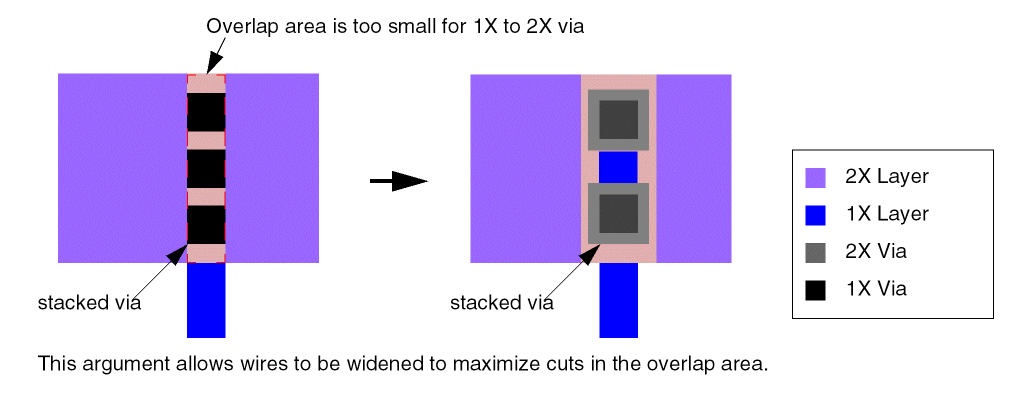

-allow_width_expand_for_max_cuts true

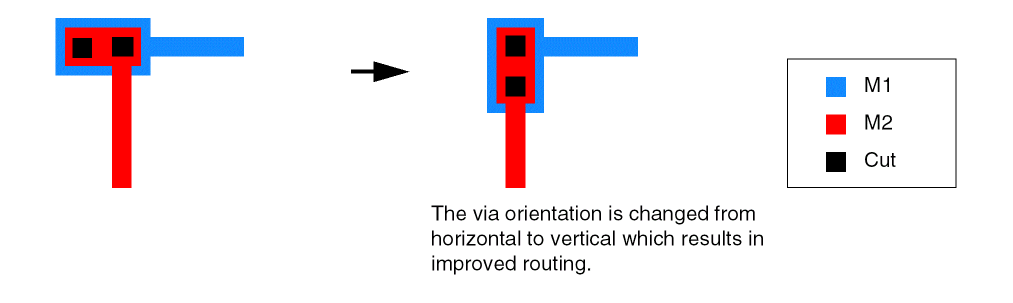

-via_orient true

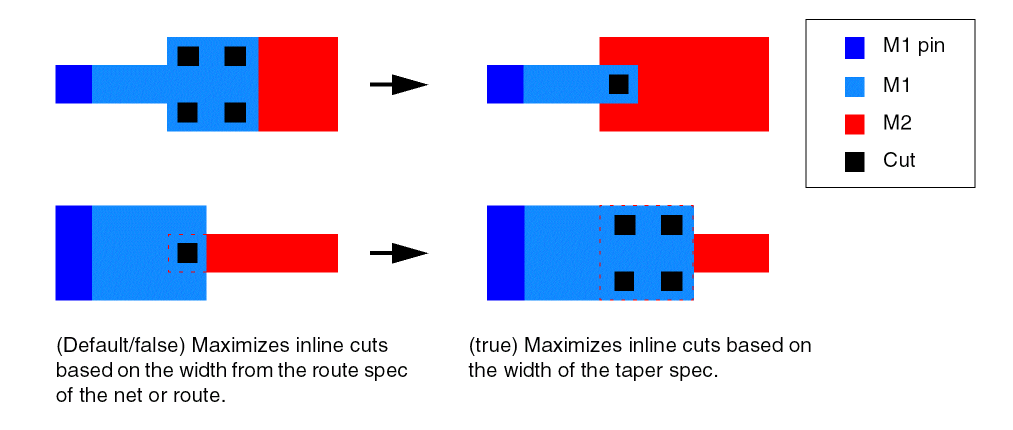

-use_taper_for_inline_maxcuts

Pattern Threshold

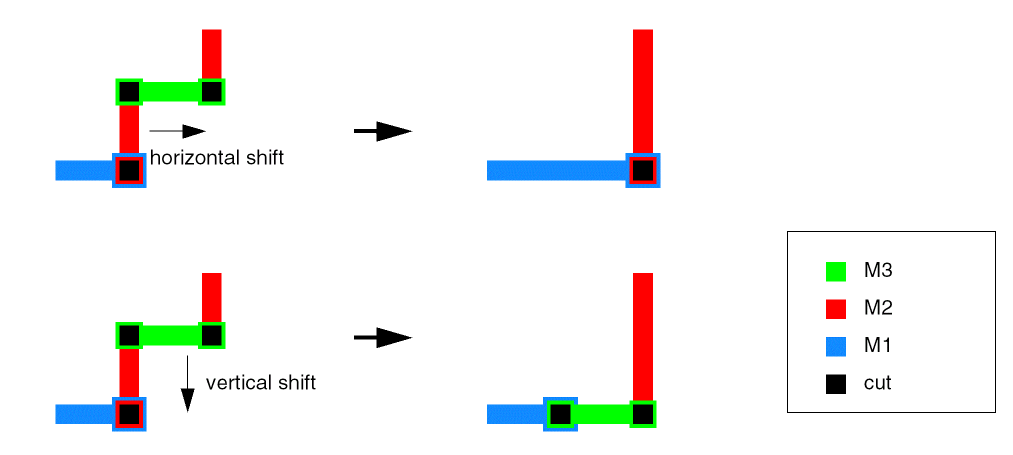

-z_pattern_factor

-vu_pattern_factor

-max_iterations

Miscellaneous

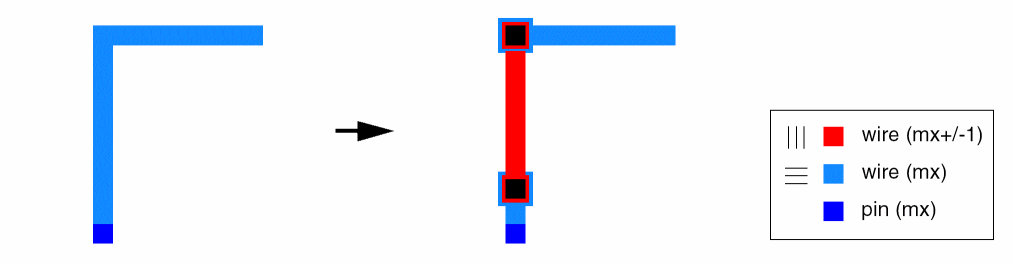

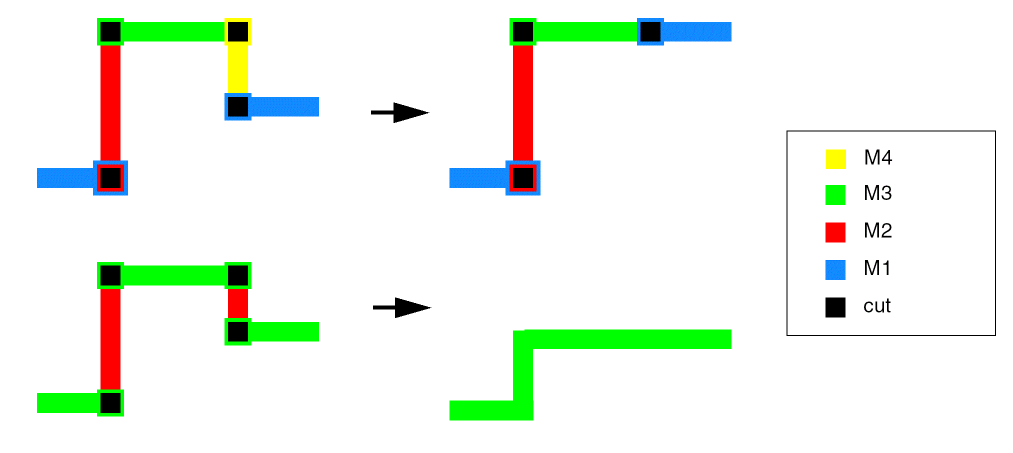

-reduce_wrongway
